Overview

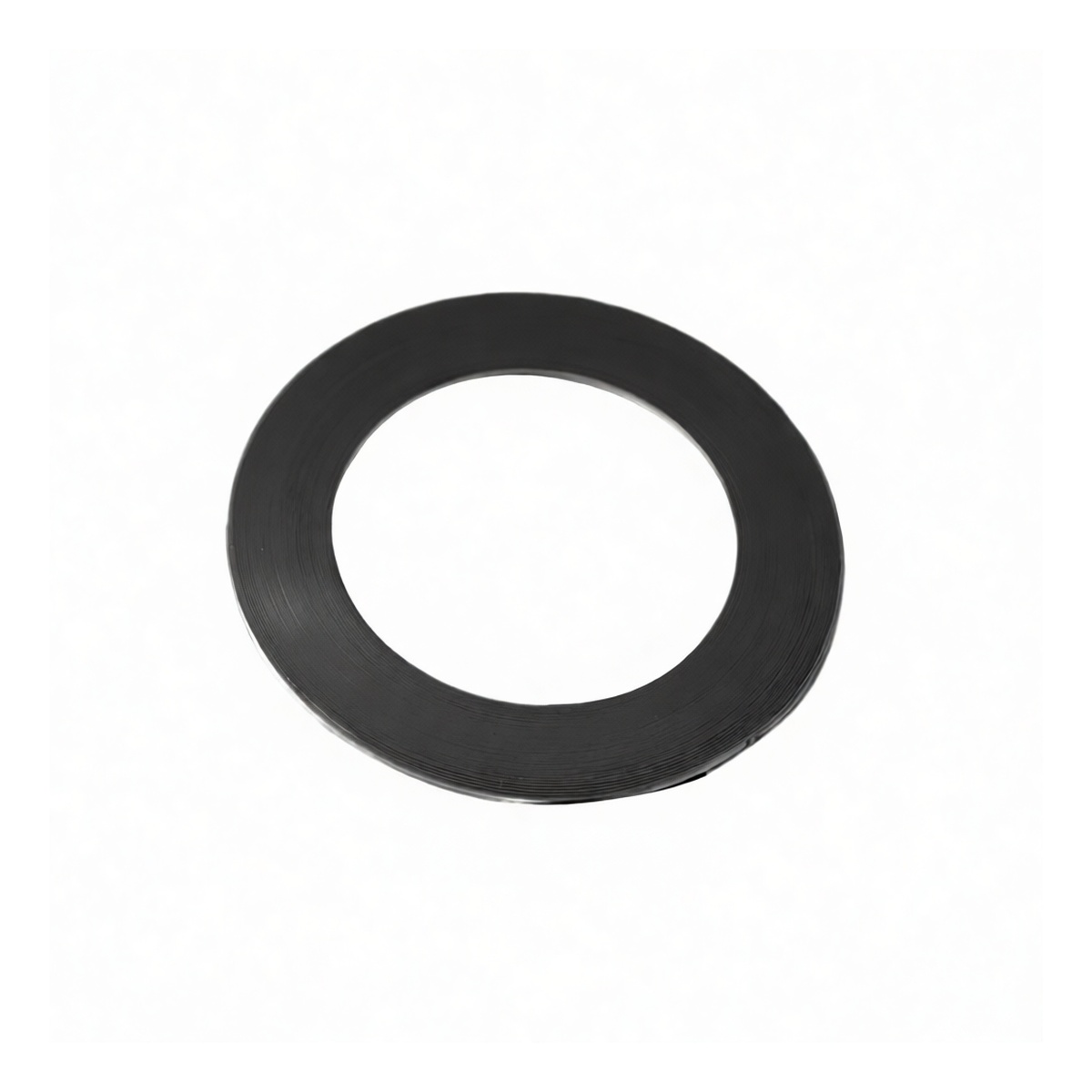

This 10-inch nominal bore spiral wound gasket is engineered for robust sealing in high-pressure and high-temperature industrial piping systems. It is constructed with a precision-wound spiral of 304 stainless steel, filled with a resilient graphite material, creating a reliable, pressure-energized seal. Designed to meet recognized industry dimensional standards, this gasket is suitable for a wide range of aggressive media and demanding service conditions in both indoor and outdoor applications.
Key Features
Engineered for high-pressure service up to 740 PSI (PN40 rating) V-ring construction with 304 stainless steel outer wind for durability and spring-like recovery
Flexible graphite filler provides excellent thermal conductivity and chemical resistance
Suitable for a broad temperature range due to compatible metal and filler materials
Meets established industry dimensional standards for reliable flange fit and performance
Designed for use in both indoor and outdoor environments
Specifications
Nominal Pipe Size: 10 inches Inner Diameter: Approximately 13.86 inches Outer Diameter: Approximately 10.75 inches Thickness: 0.18 inches Construction: Spiral wound V-form Metal Wind Material: 304 Stainless Steel Filler Material: Flexible Graphite Pressure Rating: PN40 (740 PSI) Standards: Meets Industry Standards Sealant Type: Gasket Chemical Base: Graphite Indoor/Outdoor Use: Both Paintable: No Package Quantity: 8 gaskets
Applications
Sealing flanges in high-pressure process piping systems
Chemical and petrochemical processing plants
Power generation and utility services
Oil and gas transmission and refining Heating, ventilation, and industrial boiler systems General industrial maintenance and repair where reliable flange sealing is critical
