Overview

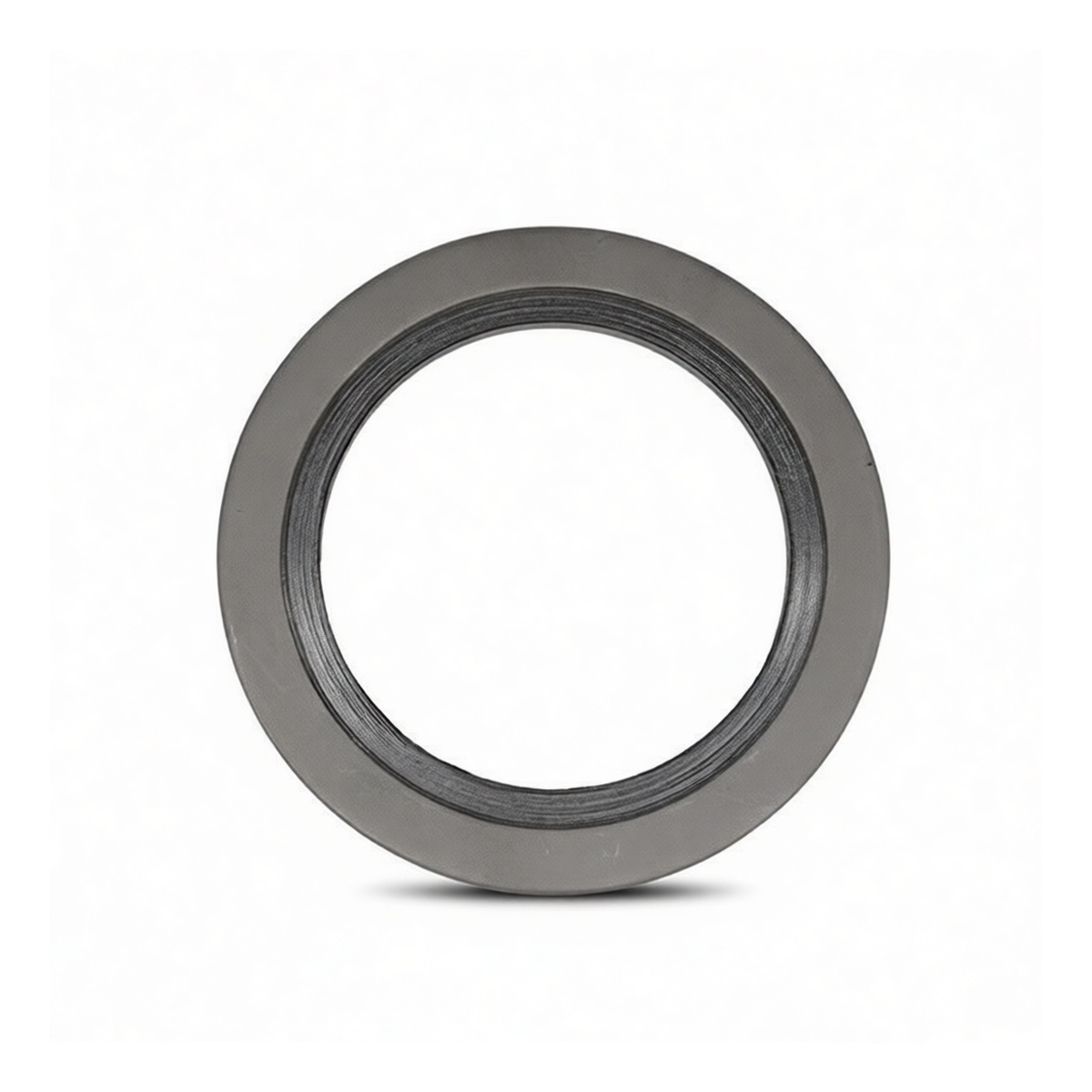

This 16-inch NPS spiral wound gasket is engineered for high-pressure sealing in critical industrial piping and vessel applications. Designed to meet rigorous industry standards, it provides a dependable, long-lasting seal in systems operating up to 150 PSI. The gasket's construction combines the strength of stainless steel with the superior sealing properties of flexible graphite, making it a trusted solution for preventing leaks in challenging environments, from chemical processing to power generation.
Key Features
Robust C2220 configuration with a 304 stainless steel outer centering ring Spiral windings of 304 stainless steel filled with flexible graphite
Engineered for precise alignment and compression on standard flanges
Provides an effective seal across a wide temperature and pressure range Suitable for use with a broad spectrum of media, including many chemicals and hydrocarbons
Designed for both indoor and outdoor service applications
Specifications
Nominal Pipe Size: 16 inches Pressure Rating: 150 PSI Configuration: C2220 (with outer ring) Windings Material: 304 Stainless Steel Filler Material: Flexible Graphite Outer Ring Material: 304 Stainless Steel Standards: Meets Industry Standards Sealant Type: Gasket Chemical Base: Graphite Indoor/Outdoor Use: Both Paintable: No Package Quantity: 10
Applications
Sealing flanges in chemical and petrochemical processing plants
Power generation and utility piping systems
Oil and gas pipeline connections
Industrial refinery and processing equipment Heating, ventilation, and large-scale industrial plumbing Any application requiring a reliable, high-performance seal on ANSI standard flanges
