Overview

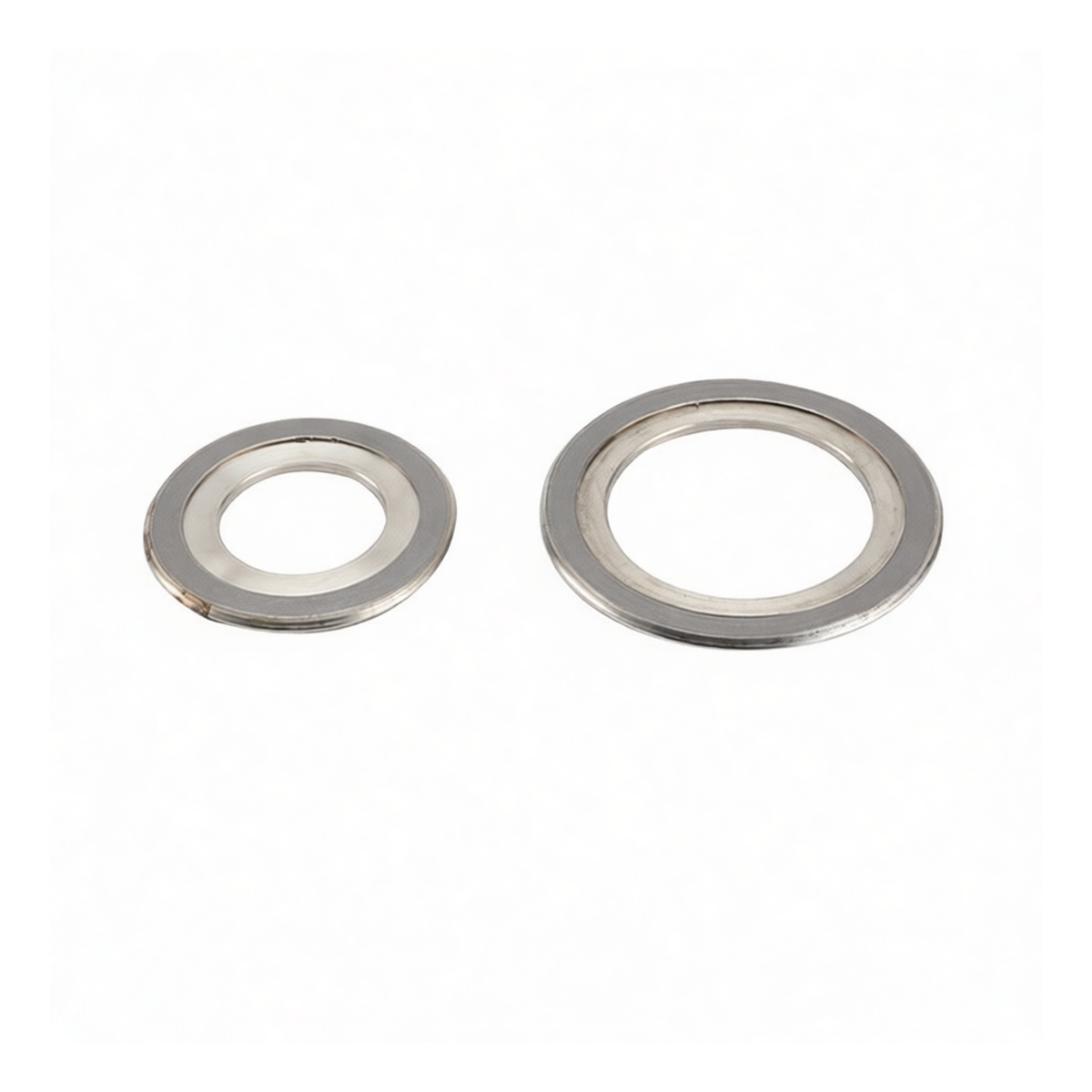

This industrial-grade spiral wound gasket is engineered for creating reliable, high-integrity seals in demanding piping and pressure vessel applications. It is specifically constructed for use with standard ANSI flanges, providing a robust sealing solution for systems handling steam, oil, gas, and various chemical process fluids. The gasket's layered design combines the strength of metal with the compressibility of a soft filler, ensuring an effective seal under varying pressures and temperatures.
Key Features
Constructed with 304 stainless steel windings for excellent corrosion resistance
Graphite filler material provides reliable sealing across a wide thermal range Integrated inner control ring centers the gasket and provides added blow-out resistance
Conforms to established HG industry standards for dimensional consistency
Suitable for a broad spectrum of pressure classes within a single gasket design
Ideal for indoor use on standard flange connections in controlled environments
Specifications
Material Construction: 304 Stainless Steel with Graphite Filler Inner Diameter: 4.57 inches Outer Diameter: 5.67 inches Overall Thickness: 0.125 inches (1/8 inch) Standards: HG Sealant Type: Metallic Spiral Wound Gasket Pressure Class Rating: PN16, PN25, PN40, PN63, PN100, PN160 Indoor/Outdoor Use: Indoor Paintable: No Package Quantity: 12 gaskets
Applications
Sealing high-pressure flange connections in chemical processing plants
Steam lines and boiler feed systems in power generation
Refinery and petrochemical pipeline flanges
Compressed air and industrial gas systems General service on pumps, valves, and heat exchangers in manufacturing facilities
