Overview

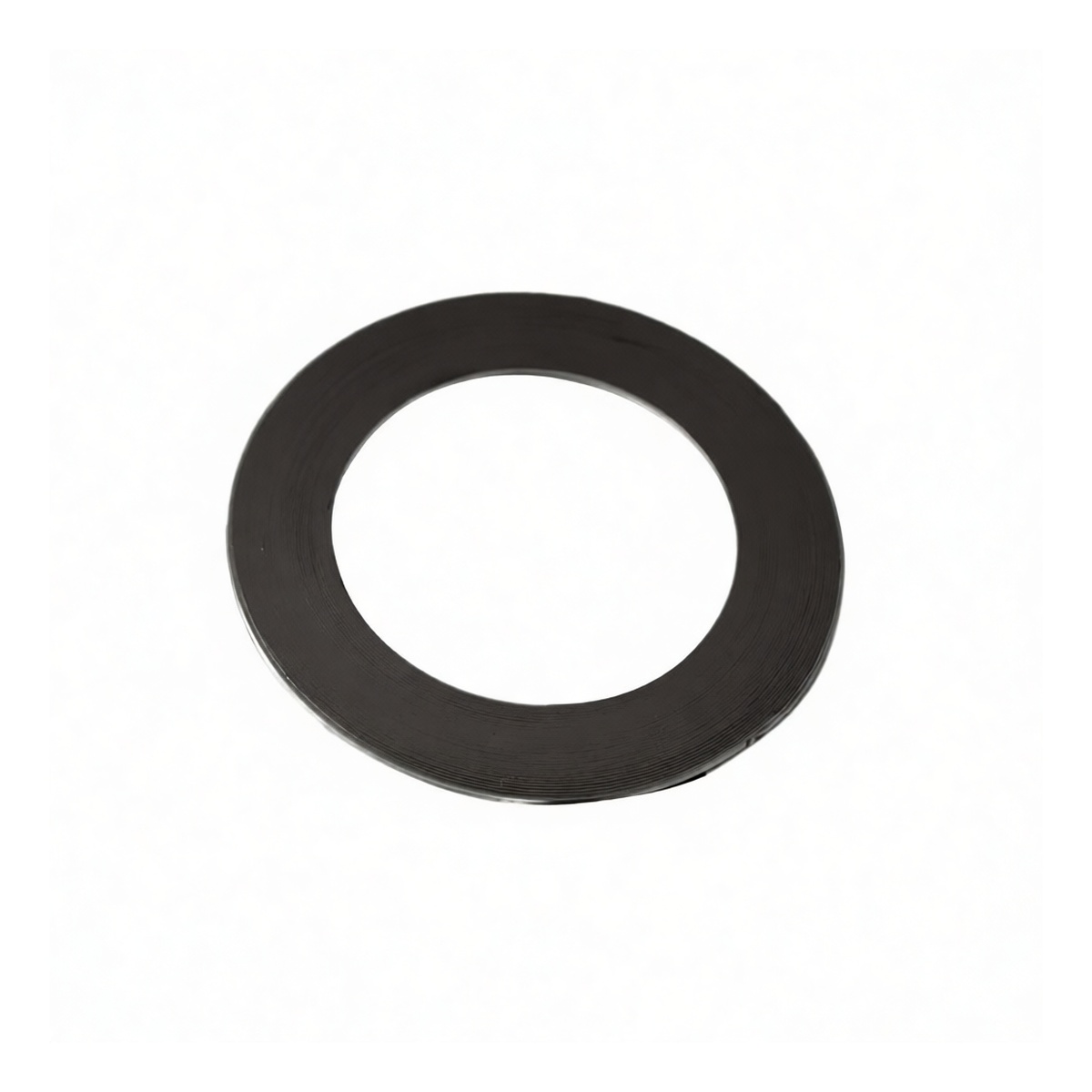

This 2.5-inch nominal size spiral wound gasket is engineered for creating robust, long-lasting seals in demanding industrial piping and vessel applications. It is constructed by spirally winding a combination of metallic and non-metallic materials, forming a resilient seal that compensates for flange irregularities and thermal cycling. The gasket is manufactured to the HG/T20610-2009 standard, ensuring dimensional consistency and performance reliability for a wide range of pressure classes.
Key Features
Constructed with a durable 304 stainless steel outer winding for corrosion resistance
Features a resilient graphite filler for superior thermal and chemical compatibility Designed to handle multiple pressure classes from PN10 to PN63
Provides an effective seal for both indoor and outdoor installations
The spiral wound design offers excellent recovery and sealing under variable loads
Specifications
Standards: HG Chemical Base: Graphite Sealant Type: Gasket Indoor/Outdoor Use: Both Paintable: No Nominal Pipe Size: 2.5 inches Approximate Inside Diameter: 1.69 inches Approximate Outside Diameter: 2.24 inches Thickness: 0.13 inches Pressure Class Range: PN10 to PN63 (approximately 145 PSI to 910 PSI) Metallic Component: 304 Stainless Steel Filler Material: Flexible Graphite Package Quantity: 100 gaskets
Applications
Sealing flanged connections in chemical and petrochemical processing pipelines Use in power generation facilities for steam, water, and auxiliary systems General industrial service for a wide range of fluids including oils, gases, and mild chemicals Boiler feed systems, heat exchangers, and pump connections Applications requiring a seal capable of withstanding thermal cycling and moderate pressure fluctuations
