Overview

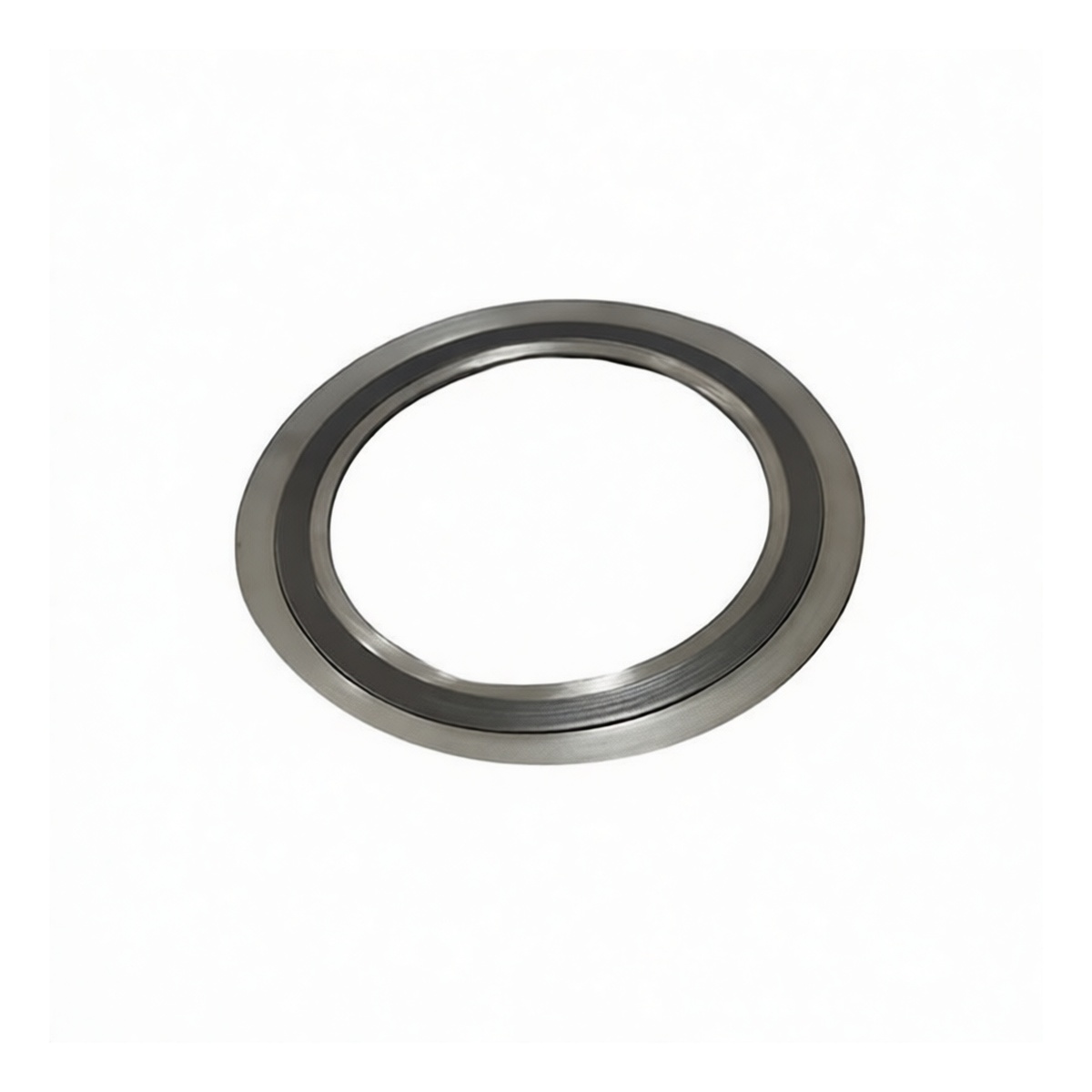

The 304 Stainless Steel Spiral Wound Gasket is a precision-engineered sealing solution designed for demanding industrial flange connections. It provides a reliable, leak-tight seal in high-pressure and high-temperature piping systems. This gasket is constructed with a spirally wound V-profile metal strip combined with a resilient filler, creating a robust seal that accommodates flange rotation and surface irregularities. Manufactured to the HG/T 20631 standard, it ensures consistent quality and dimensional accuracy for critical process applications.
Key Features
Engineered for high-temperature service up to 1500°F Designed for pressure classes up to 150 pounds Features durable 304 stainless steel inner and outer centering rings
Flexible graphite filler provides excellent conformability and seal integrity
Spiral wound construction offers superior resilience and recovery Inner ring prevents gasket blow-out and protects the filler from erosion
Outer ring aids in precise installation and alignment on the flange
Specifications
Standard: HG/T 20631-2009 Nominal Pipe Size: 2 inches Pressure Class: 150LB Gasket Type: D-type with inner and outer rings Windings: 304 Stainless Steel Filler Material: Flexible Graphite Inner/Outer Ring Material: 304 Stainless Steel Style Code: D2222 Pack Quantity: 25 gaskets
Applications
General chemical processing and petrochemical plants
Steam lines and power generation utilities
Oil and gas pipelines and refinery equipment Heat exchangers, pumps, and valve bonnets Any flanged connection requiring a seal for volatile or high-temperature media
