Overview

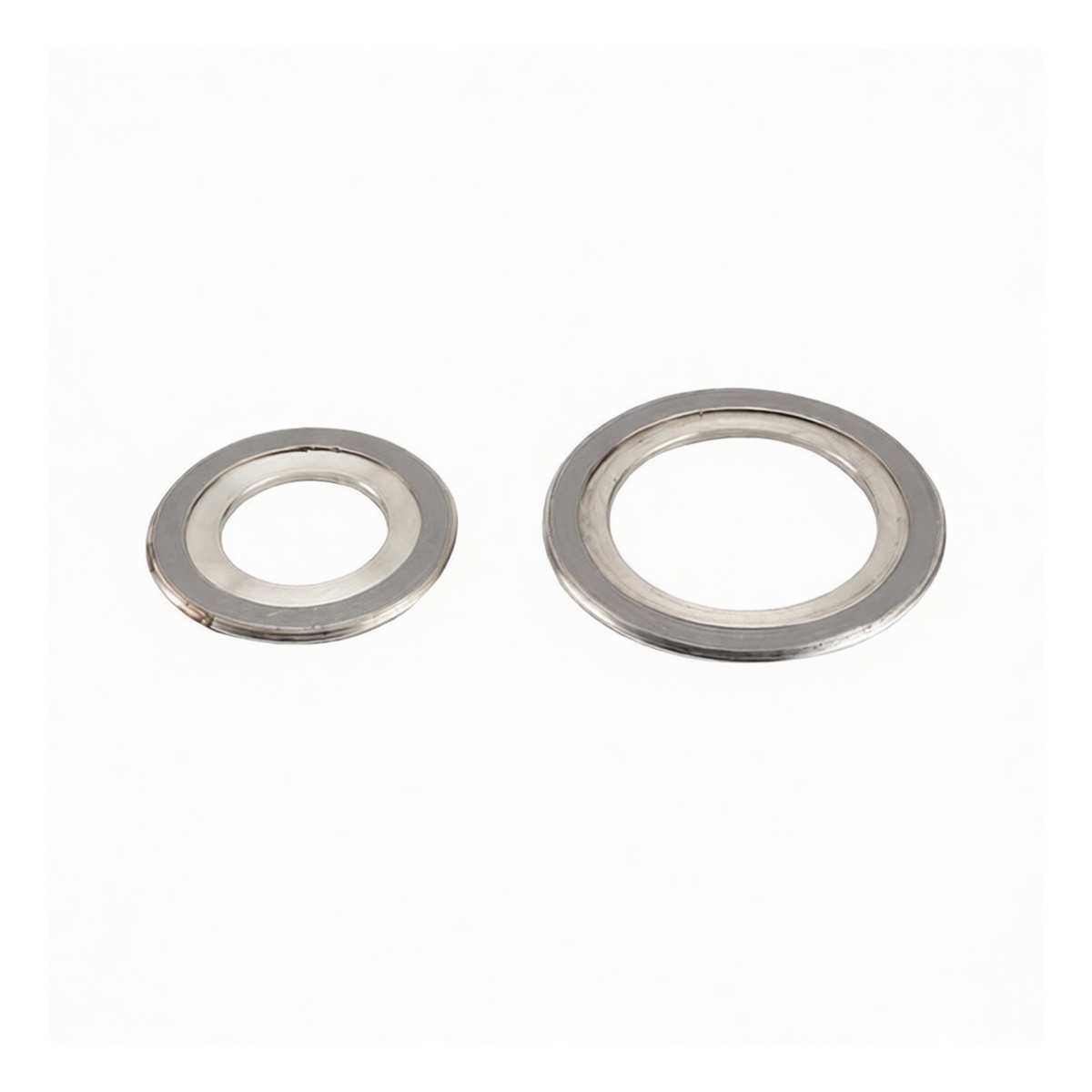

This industrial-grade spiral wound gasket is engineered for high-integrity sealing in demanding pipeline and pressure vessel applications. It is constructed with a 304 stainless steel outer wind and a flexible graphite filler, creating a resilient seal capable of accommodating flange irregularities and thermal cycling. Manufactured to stringent HG standards, this gasket is designed for nominal pipe sizes of 12 inches (DN300) and is rated for a comprehensive range of pressure classes, making it a versatile and reliable component for critical fluid handling systems.
Key Features
Robust 304 stainless steel inner and outer rings for structural stability and alignment
Flexible graphite filler provides superior conformability and thermal resistance Engineered for pressure classes from PN16 through PN160 Spiral wound design offers excellent spring-back and recovery under load
Suitable for a wide range of industrial media and operating temperatures
Specifications
Standards: HG Chemical Base: Graphite Sealant Type: Metallic Gasket Indoor/Outdoor Use: Industrial Paintable: No Nominal Size: 12 inches (DN300) Thickness: 3.2 inches Construction: 304 Stainless Steel / Graphite Filler / 304 Stainless Steel Pressure Class Rating: PN16, PN25, PN40, PN63, PN100, PN160
Applications
High-pressure process piping in chemical and petrochemical plants Flange connections on heat exchangers, reactors, and pressure vessels
Steam and utility lines in power generation facilities Pipeline systems requiring reliable, long-term sealing performance
General industrial maintenance and repair operations where HG standard gaskets are specified
Each order unit contains two gaskets.
