Overview

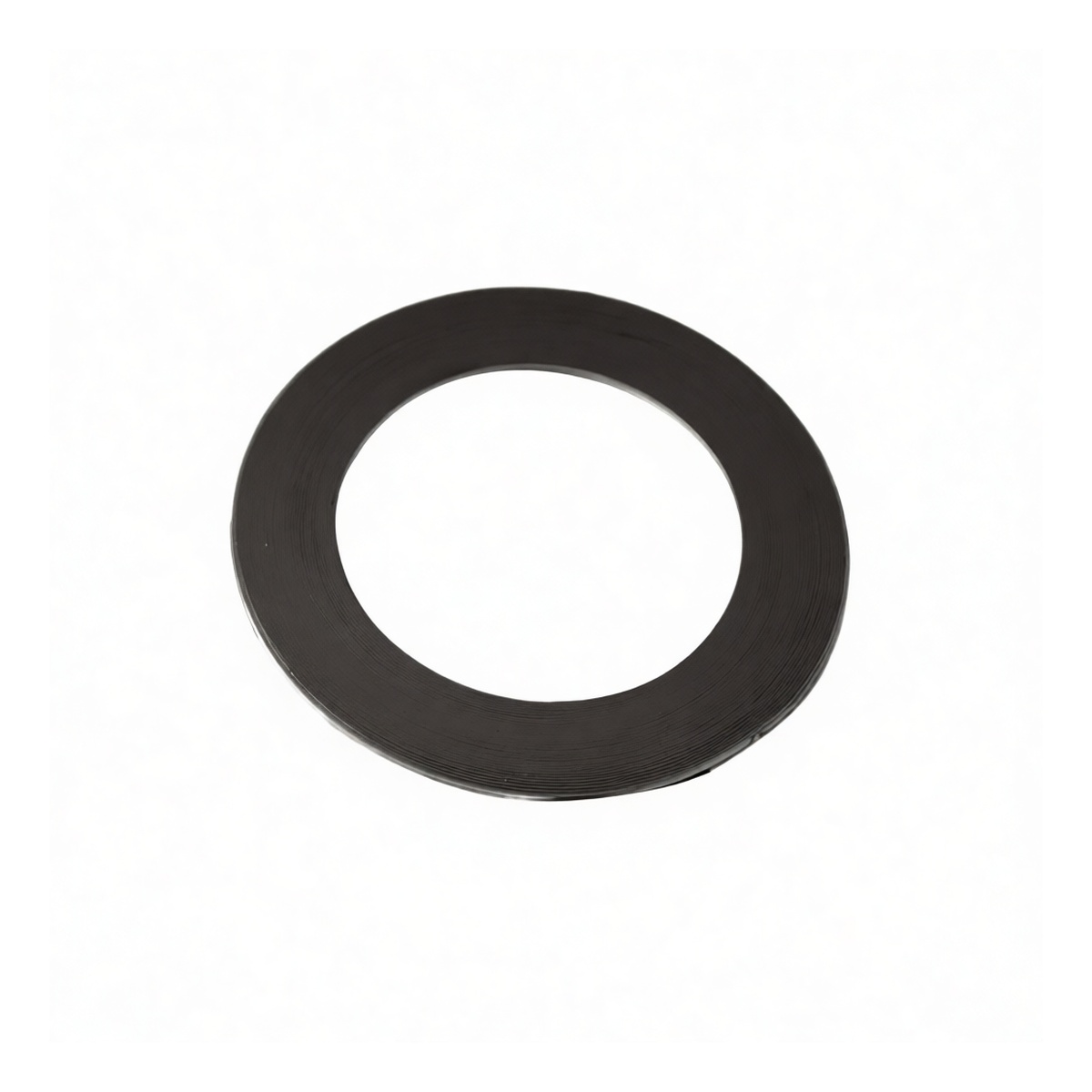

The 304 Stainless Steel Spiral Wound Gasket is an industrial sealing solution engineered for high-integrity flange connections in piping and pressure vessel systems. Its robust spiral wound construction combines the spring-like resilience of formed metal with the conformability of a soft filler material, creating a reliable seal that compensates for flange surface irregularities and thermal cycling. This gasket is designed for general service applications requiring resistance to a wide range of temperatures and pressures.
Key Features
Constructed with a winding of 304 stainless steel for corrosion resistance
Centered graphite filler providing excellent thermal stability and chemical inertness
Spiral wound design offers superior resilience and sealing force retention
Suitable for both indoor and outdoor service applications
Engineered to meet common industry dimensional and material standards
Specifications
Material: 304 Stainless Steel Winding with Graphite Filler Sealant Type: Spiral Wound Gasket Nominal Pipe Size: 3/4 inch Outside Diameter: 1-13/16 inches Inside Diameter: 0.75 inches Thickness: 1/8 inch Pressure Rating: Suitable for systems up to approximately 232 PSI Temperature Rating: Graphite filler supports a wide temperature range, typically from -400°F to 900°F in oxidizing atmospheres Standards: Manufactured to common industry specifications for dimensions and construction Indoor/Outdoor Use: Both Paintable: No Package Quantity: 100 pieces
Applications
Sealing flanges in chemical and petrochemical processing pipelines
General service in power generation and utilities Heating, ventilation, and industrial plumbing systems Pump, valve, and compressor connections Equipment requiring a seal for moderate pressure and temperature services
