Overview

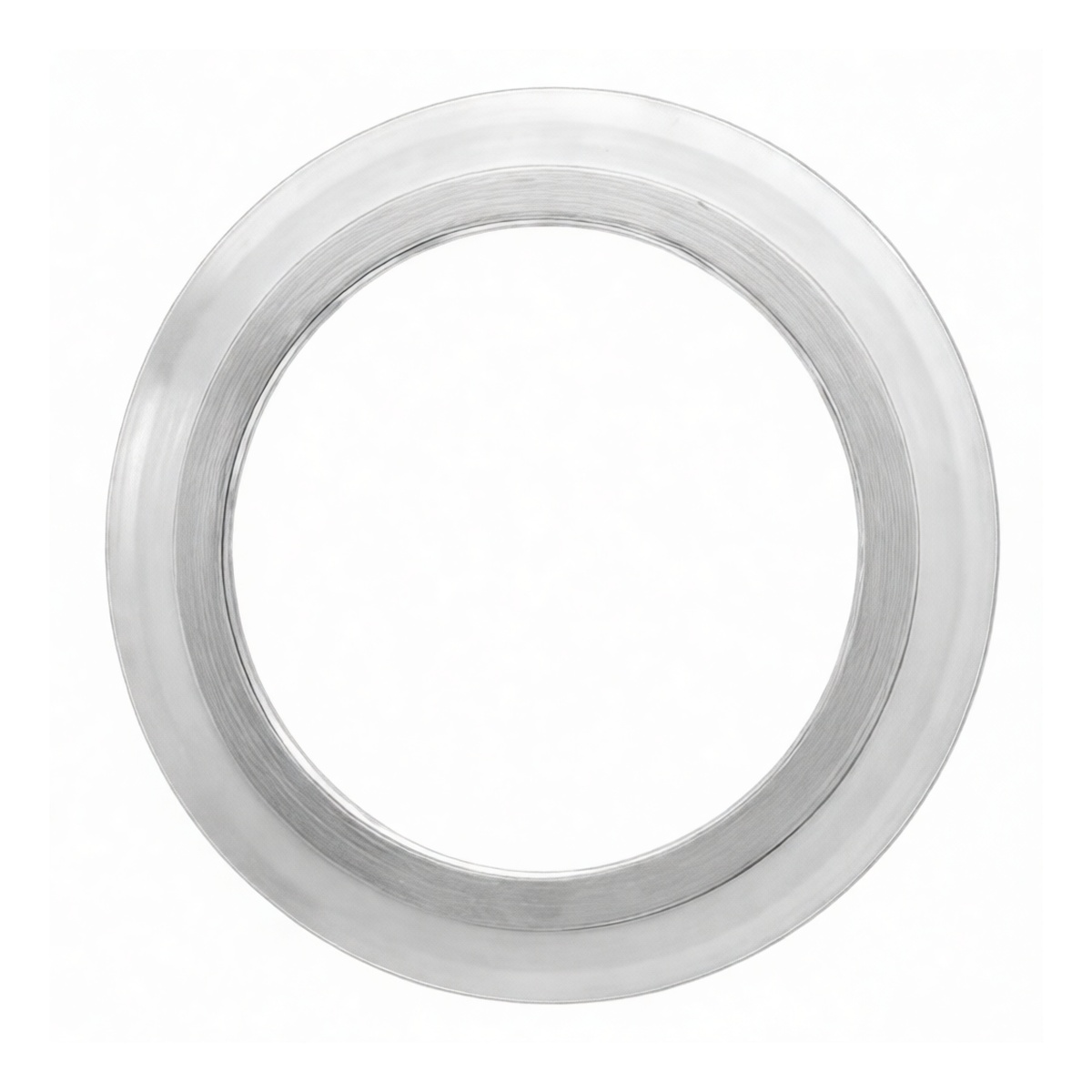

This 304 Stainless Steel Spiral Wound Gasket is engineered for demanding, high-pressure sealing in outdoor piping systems. It is specifically designed for use on DN100 (approximately 4-inch nominal pipe size) flanges with a PN25 pressure class rating, translating to a maximum working pressure of approximately 363 PSI. The spiral wound construction combines the spring-like resilience of a metal winding with the conformability of a filler material, creating a robust seal that performs reliably under thermal cycling, pressure fluctuations, and harsh environmental conditions. This gasket is supplied as a convenient pack of ten.
Key Features
Constructed from corrosion-resistant 304 stainless steel for outdoor durability Engineered for PN25 pressure class flanges (approximately 363 PSI) Designed for DN100 piping systems (approximately 4-inch nominal size)
Spiral wound design compensates for flange irregularities and thermal expansion Provides a reliable seal in high-pressure, high-temperature applications Suitable for long-term performance in cyclical service conditions
Pack of ten for project efficiency and inventory management
Specifications
Standards: Meets Industry Standards Chemical Base: 304 Stainless Steel Sealant Type: Spiral Wound Gasket Indoor/Outdoor Use: Outdoor Paintable: No Nominal Size: DN100 (Approximately 4 inches) Pressure Rating: PN25 (Approximately 363 PSI) Gasket Style: Spiral Wound with Outer Ring Pack Quantity: 10 pieces
Applications
Sealing flanges in chemical and petrochemical processing pipelines High-pressure steam lines and power generation systems
Industrial water and wastewater treatment plant piping
Oil and gas transmission and distribution connections HVAC and industrial plant utility lines requiring outdoor durability
