Overview

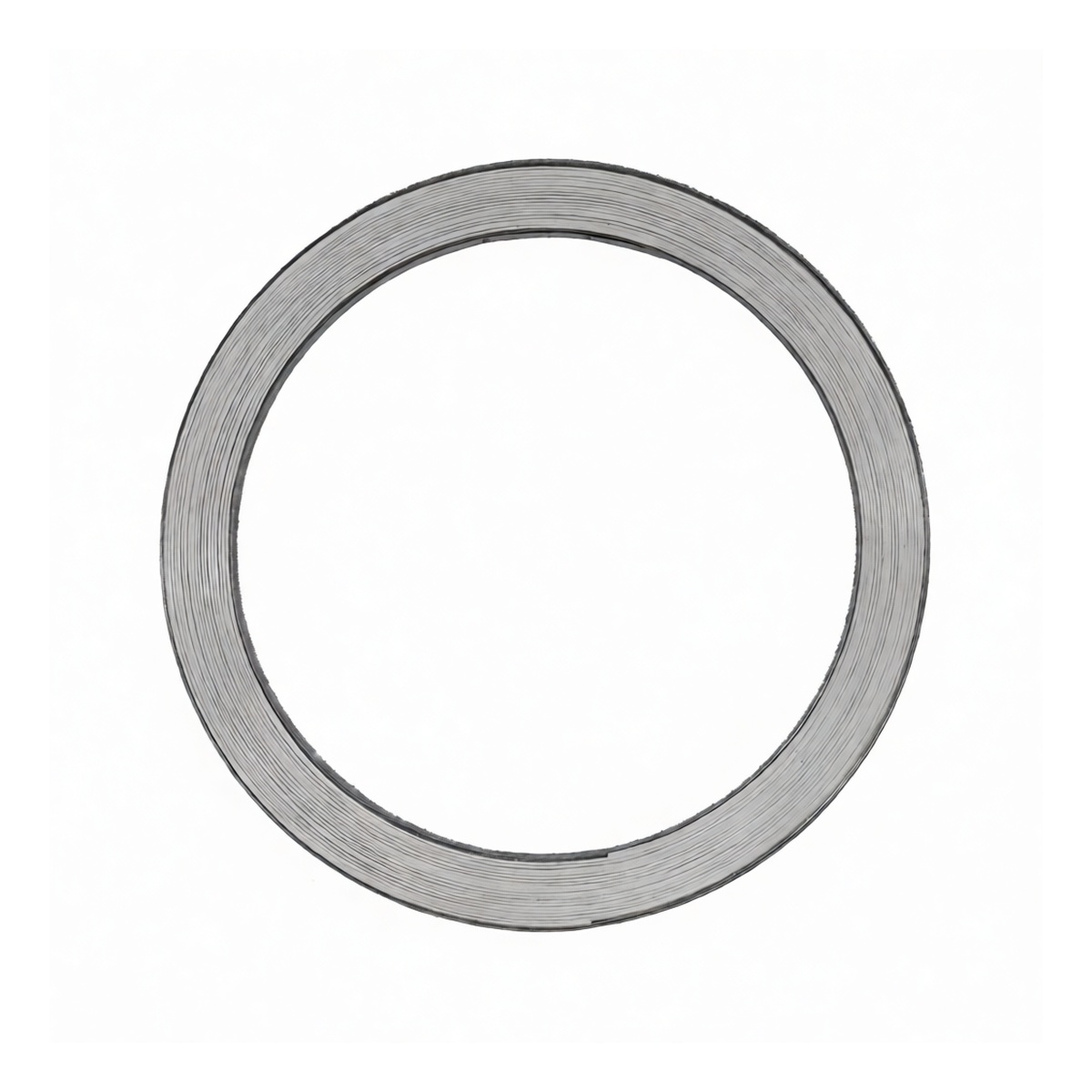

This 12-inch spiral wound gasket is engineered for demanding industrial sealing applications where reliability under pressure and chemical exposure is critical. It is constructed with a precision-wound 316 stainless steel metal winding, providing exceptional structural resilience and corrosion resistance. The winding is combined with a PTFE (polytetrafluoroethylene) fluoropolymer filler, creating a robust, multi-layered seal designed to perform consistently across a wide range of temperatures and pressures. Manufactured to recognized industry standards, this gasket is a fundamental component for creating leak-tight seals in flanged pipe connections and vessel assemblies.
Key Features
Engineered with a 316 stainless steel winding for high strength and corrosion resistance
Features a PTFE fluoropolymer filler for broad chemical compatibility and low friction Suitable for a wide pressure range from PN10 to PN63
Constructed to HG industry standards for dimensional consistency and performance
Designed for both indoor and outdoor service applications Provides a reliable seal in high-pressure flange connections
Specifications
Nominal Pipe Size: 12 Inch Inner Diameter: Approximately 13.5 inches Outer Diameter: Approximately 14.2 inches Thickness: 0.18 inches Metal Winding Material: 316 Stainless Steel Filler Material: PTFE (Fluoropolymer) Applicable Standards: HG Pressure Rating Range: PN10, PN16, PN25, PN40, PN63 Sealant Type: Spiral Wound Gasket Recommended Use: Indoor and Outdoor Paintable: No Package Quantity: 2 Gaskets
Applications
Sealing flanged connections in chemical and petrochemical processing pipelines High-pressure fluid handling systems in oil and gas production
Heat exchanger and boiler connections in power generation facilities General industrial piping systems requiring a durable, chemical-resistant seal Vessel manways and other flanged access points in processing equipment
