Overview

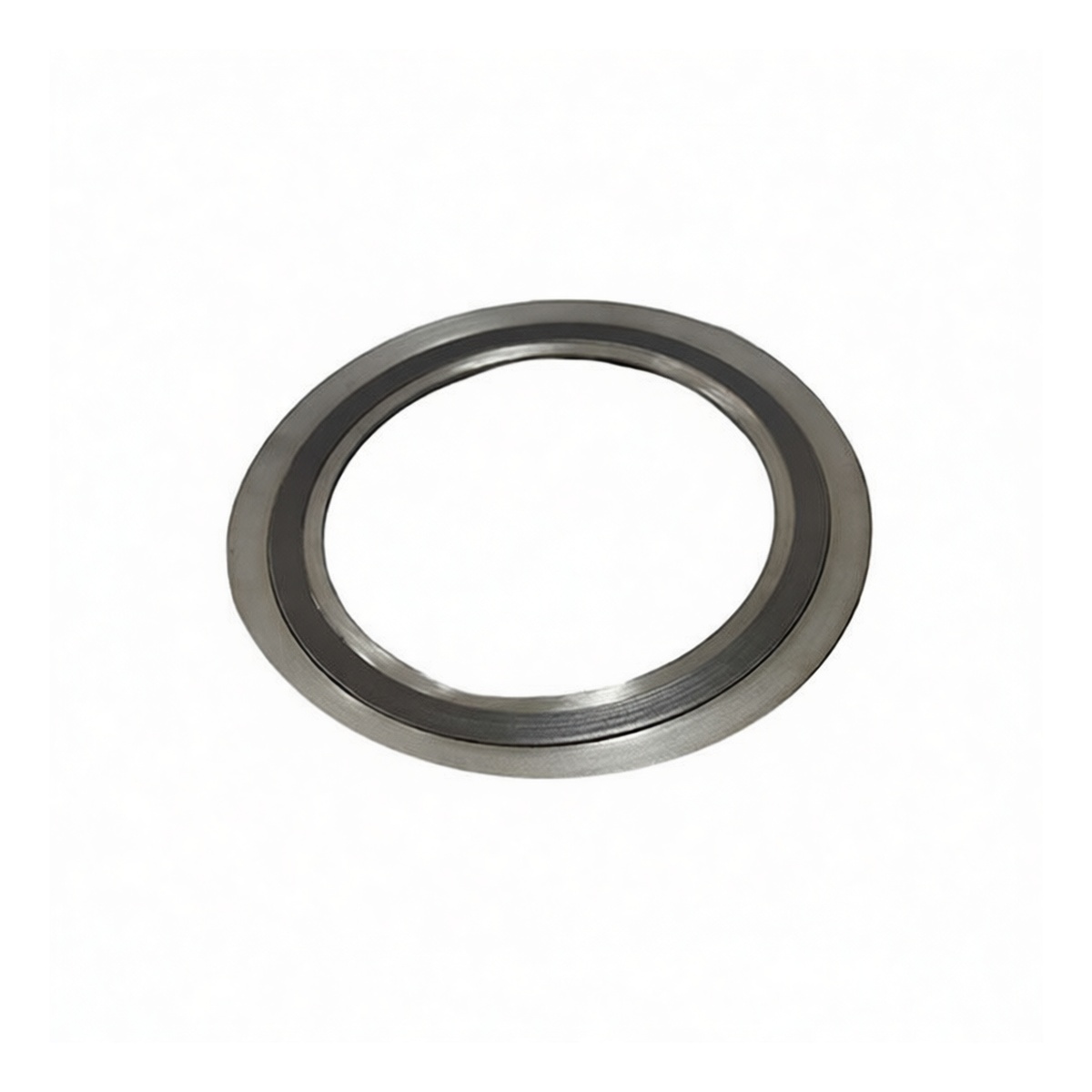

The 316L Stainless Steel Spiral Wound Gasket is a high-integrity sealing solution engineered for critical flange connections in demanding industrial piping systems. This gasket is constructed by spirally winding a pre-formed metal strip and a non-metallic filler material, creating a resilient seal that compensates for flange irregularities and thermal cycling. Designed to meet rigorous industry standards, it provides a reliable, leak-tight seal in high-pressure and high-temperature applications, ensuring system safety and operational continuity.
Key Features
Engineered for high-pressure service up to 600 PSI
Features a flexible graphite filler for superior thermal conductivity and chemical resistance
Built with inner and outer carbon steel retaining rings for controlled compression and installation stability The 316L stainless steel winding offers excellent corrosion resistance Spiral wound design provides spring-like recovery to maintain seal under variable conditions
Specifications
Standards: HG Chemical Base: Graphite Sealant Type: Spiral Wound Gasket Nominal Pipe Size: 1/2 inch Pressure Class: 600 PSI Construction: 316L Stainless Steel Windings with Graphite Filler, Carbon Steel Inner and Outer Rings Indoor/Outdoor Use: Both Paintable: No Package Quantity: 100
Applications
Sealing flanges in chemical and petrochemical processing plants High-pressure steam and utility piping systems
Refinery and offshore oil and gas applications
Power generation and cogeneration facilities Industrial HVAC and mechanical systems requiring robust, long-term sealing solutions
