Overview

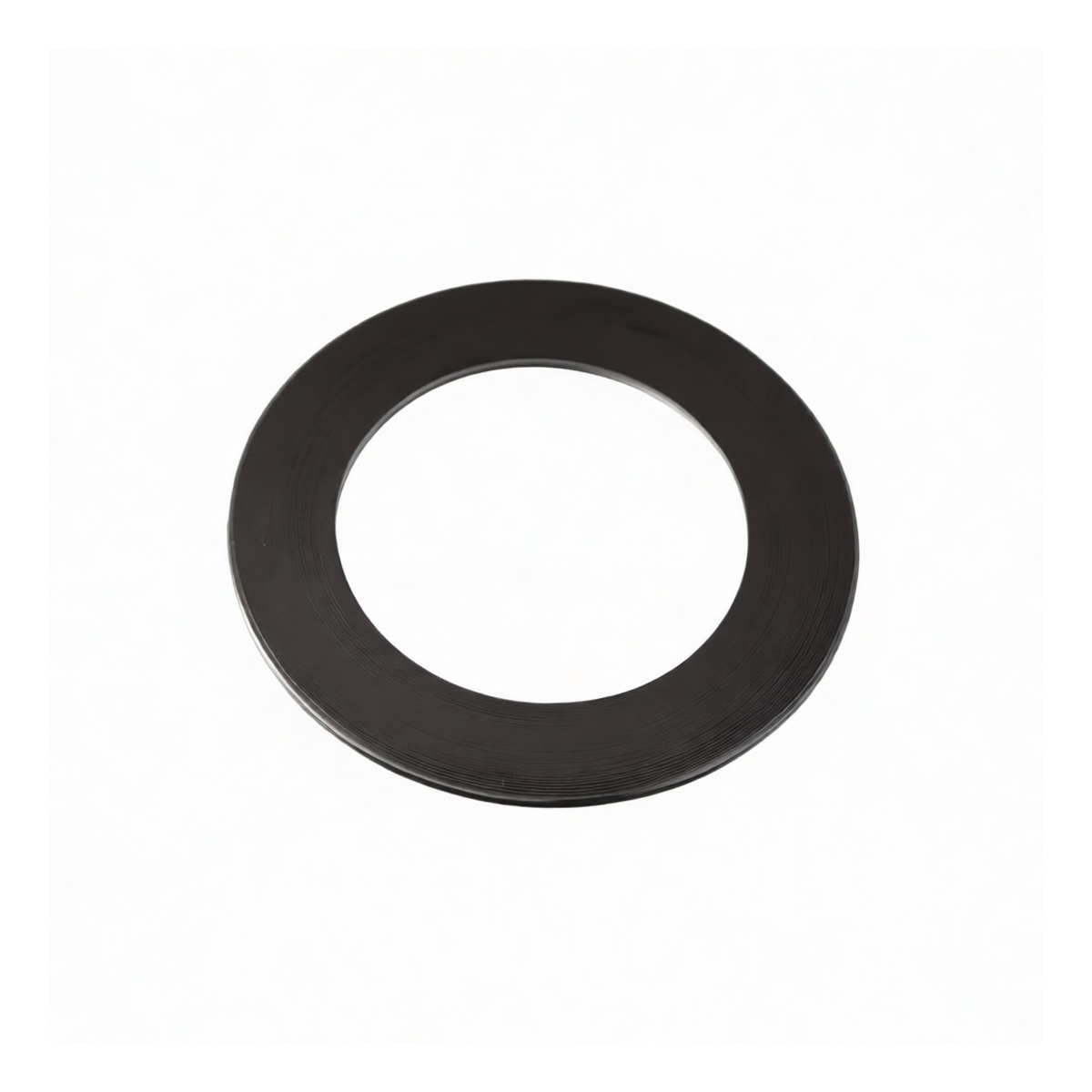

The 321 Stainless Steel Spiral Wound Gasket is a precision-engineered sealing solution designed for critical flange connections in industrial piping systems. Its spiral wound construction combines alternating layers of formed metal and soft filler material, creating a resilient seal that compensates for flange irregularities and thermal cycling. This specific configuration, built to established industry dimensional standards, ensures reliable performance in applications involving elevated temperatures and variable pressures.
Key Features
Constructed with a 321 stainless steel winding for excellent oxidation resistance and strength Features a high-purity graphite filler for superior thermal conductivity and stability The spiral wound design provides a spring-like action to maintain seal under fluctuating conditions
Engineered to seal effectively on standard raised face flanges Robust construction resorts to crushing and blow-out under pressure
Specifications
Material: 321 Stainless Steel with Graphite Filler Inner Diameter: 3.2 inches Outer Diameter: 4.6 inches Overall Thickness: 0.13 inches Nominal Pipe Size: 2.5 inches Pressure Class: 150 Temperature Rating: Up to 900°F in oxidizing atmospheres Standards: Meets Industry Standards Chemical Base: Graphite Sealant Type: Gasket Indoor/Outdoor Use: Indoor Paintable: No Package Quantity: 36
Applications
General process piping in chemical and petrochemical plants
Heat exchanger and boiler connections
Power generation and utility systems
Refinery and hydrocarbon processing lines Any application requiring a resilient seal for ANSI Class 150 flanges in high-temperature service
