Overview

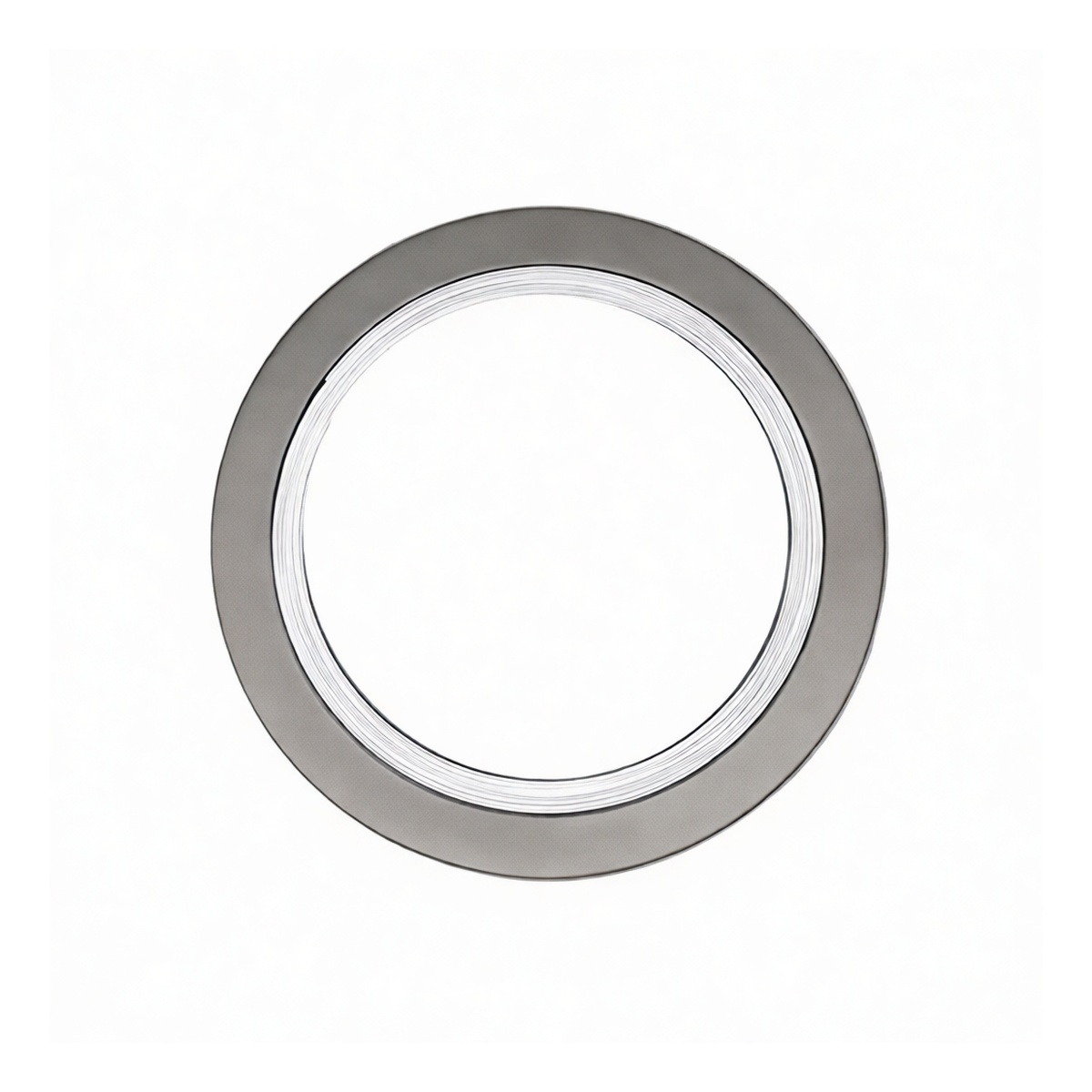

This ASME B16.20-2007 compliant metal ring gasket is engineered for high-pressure sealing in critical piping flanges. Designed for a nominal pipe size of 1 inch and a 300LB pressure class service, it features a robust C-shaped construction with an outer centering ring for enhanced stability and ease of installation. The sealing element combines a polytetrafluoroethylene filler layer between precision-wound layers of 304 stainless steel, delivering reliable chemical resistance and a superior, leak-tight seal. This gasket is suitable for a wide range of demanding industrial applications.
Key Features
ASME B16.20-2007 standard compliant for guaranteed dimensional accuracy and performance. C-shaped wound metal design with an outer ring for improved handling and alignment. Construction utilizes 304 stainless steel windings for strength and corrosion resistance. Polytetrafluoroethylene filler provides excellent chemical resistance and sealing properties. Suitable for both indoor and outdoor use in challenging environments. Engineered for high-pressure applications up to 300LB pressure class.
Specifications
Standard: ASME B16.20-2007 Nominal Pipe Size: 1 inch Pressure Class: 300LB Construction: C-shaped wound metal with outer ring Sealing Element: 304 Stainless Steel Windings with Polytetrafluoroethylene Filler Chemical Base: Polytetrafluoroethylene Sealant Type: Gasket Indoor/Outdoor Use: Both Paintable: No Package Quantity: 36 units
Applications
High-pressure process piping systems in chemical and petrochemical plants. Refinery and power generation flange connections. Industrial heating, ventilation, and plumbing applications requiring a reliable seal. General industrial maintenance and repair for flanged joints.
