Overview

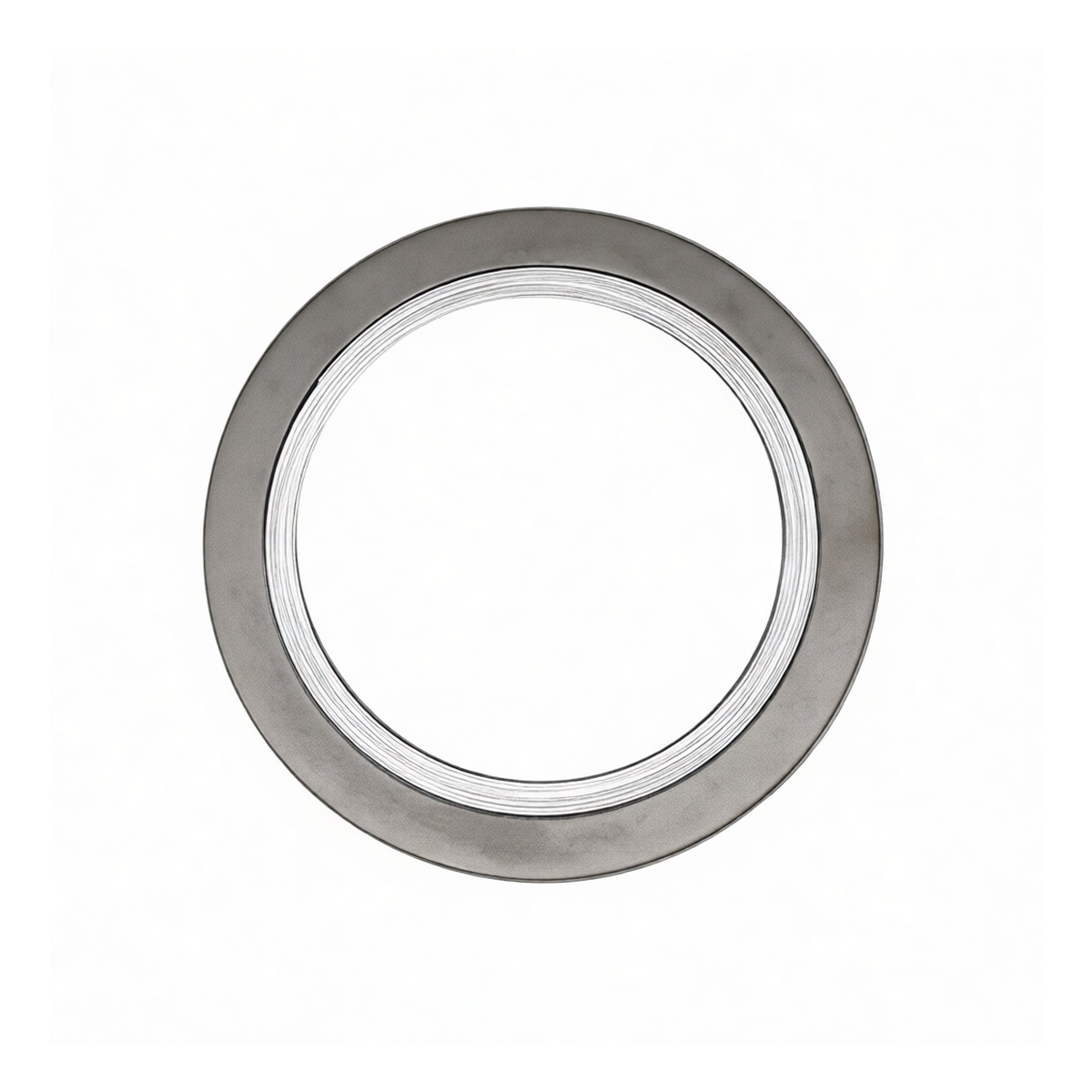

This ASME B16.20-2007 compliant metal wound gasket is engineered for high-pressure sealing in piping systems. Designed for NPS 1-1/4" flanges with a 300LB pressure rating, it provides a robust and reliable seal in demanding industrial environments. The spiral-wound construction combines the strength of metal with the resilience of a specialized filler, ensuring long-term leak prevention against a wide range of media, pressures, and temperatures. It is suitable for both indoor and outdoor applications.
Key Features
ASME B16.20-2007 standard compliance for assured dimensional accuracy and performance Spiral-wound design for superior resilience and sealing under variable loads 304 stainless steel outer ring for precise flange alignment and gasket centering
Polytetrafluoroethylene filler for excellent chemical resistance and low friction Robust construction suitable for high-pressure applications up to 300LB rating
Effective seal for systems with thermal cycling and vibration
Specifications
Standard: ASME B16.20-2007 Nominal Pipe Size: 1-1/4 inch Pressure Class: 300LB Construction: Spiral-Wound Outer Ring Material: 304 Stainless Steel Filler Material: Polytetrafluoroethylene Chemical Base: Polytetrafluoroethylene Sealant Type: Gasket Indoor/Outdoor Use: Both Paintable: No Package Quantity: 36
Applications
Sealing high-pressure flanges in chemical and petrochemical processing
General service in oil and gas production and transmission pipelines
Power generation and utility systems
Industrial plant maintenance and overhaul
HVAC and mechanical systems requiring a reliable flange seal Applications involving corrosive fluids or wide temperature ranges
