Overview

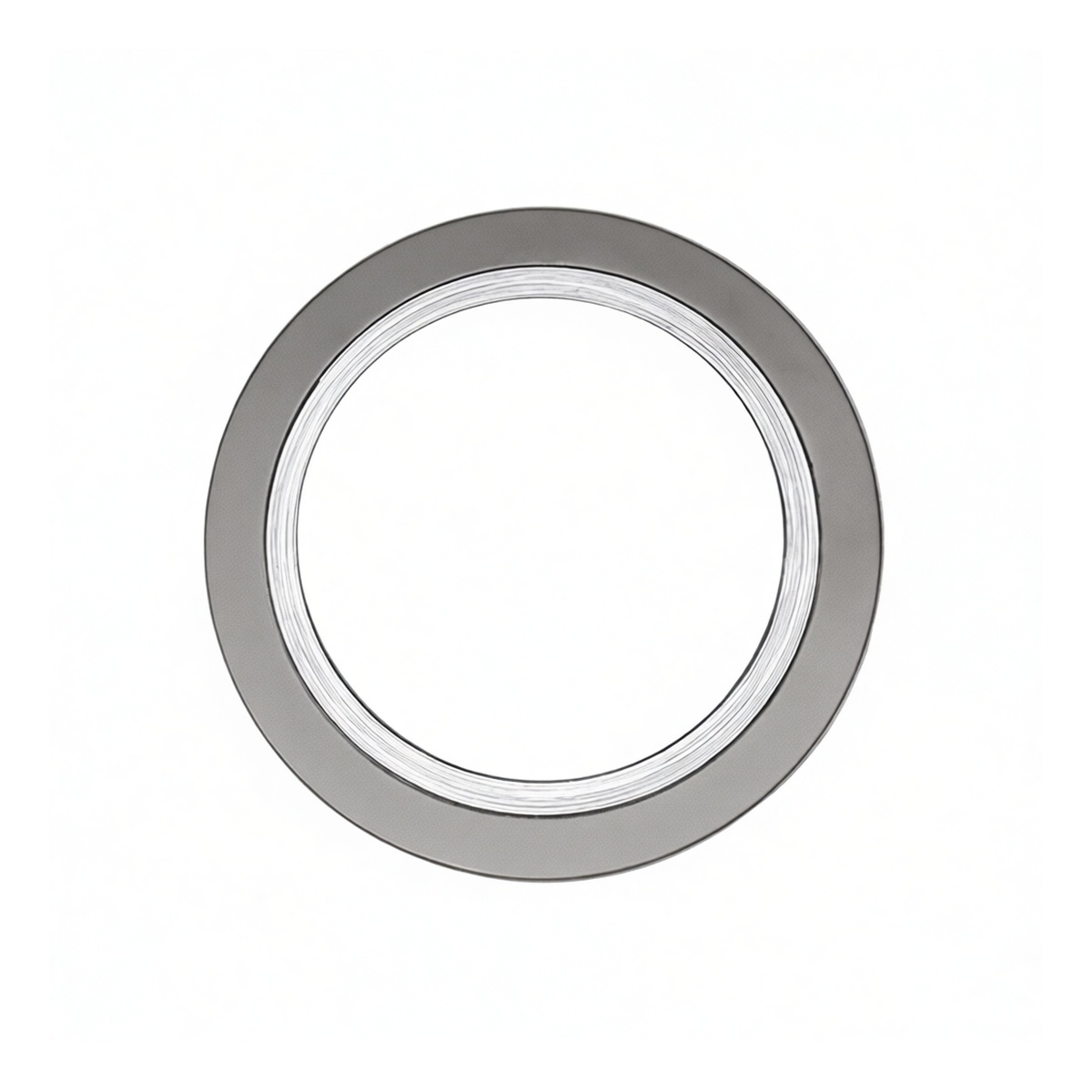

This ASME B16.20-compliant spiral wound gasket is engineered for demanding 300LB class piping connections. It is constructed with a precision-wound C2230 configuration, combining the strength of metal with the chemical resistance of a PTFE filler. The inclusion of a 304 stainless steel outer ring ensures proper alignment during installation, preventing gasket blow-out and simplifying bolt-up on flanged joints. Designed for reliability in critical service, this gasket provides a resilient, long-lasting seal in process, power, and industrial fluid handling systems.
Key Features
Manufactured to ASME B16.20-2007 standards for dimensional consistency and performance C2230 winding configuration with a 304 stainless steel outer centering ring Filler material of pure PTFE (Polytetrafluoroethylene) for broad chemical compatibility
Suitable for both indoor and outdoor applications in varied environmental conditions Non-paintable, ready-to-use construction requiring no additional sealants Provides a reliable seal for 300LB pressure class flanged connections
Specifications
Standards: ASME B16.20-2007 Chemical Base: Metal and PTFE Sealant Type: Gasket Nominal Pipe Size (NPS): 3/4 inch Pressure Class: 300LB Indoor/Outdoor Use: Both Paintable: No Winding/Filler Configuration: C2230 (304 Stainless Steel / PTFE) Package Quantity: 36 gaskets
Applications
Sealing flanged joints in chemical and petrochemical processing pipelines Power generation and utility systems, including water and steam lines
Industrial plant maintenance and repair operations Applications involving corrosive fluids, solvents, and high-purity media General service in refineries, HVAC, and shipbuilding where a resilient seal is required
