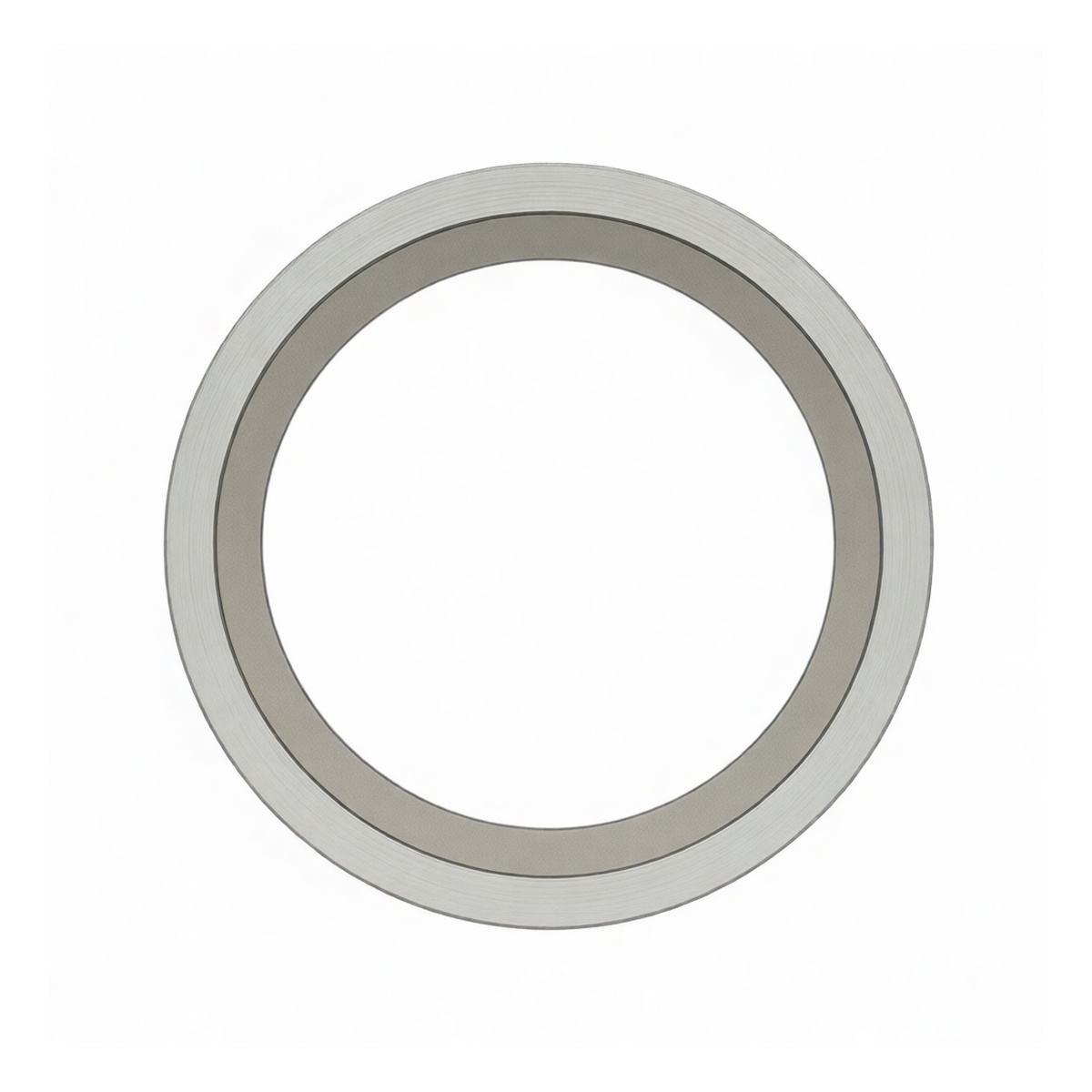

ASME B16.20 Metal Spiral Wound Gasket, 12" 150LB, 304SS/PTFE, Pkg Qty 2
Overview
Engineered for critical sealing applications in demanding industrial environments, this spiral wound gasket is manufactured to the exacting requirements of ASME B16.20-2007. Designed for nominal pipe size (NPS) 12-inch flanges with a 150LB pressure class rating, it delivers a reliable, leak-tight seal in high-pressure and high-temperature piping systems. The robust construction combines the strength of metal with the sealing properties of a non-metallic filler, making it an essential component for maintenance, repair, and new assembly operations where system integrity is paramount.
Key Features
ASME B16.20-2007 compliant design for guaranteed dimensional accuracy and performance. Constructed with 304 stainless steel windings for excellent corrosion resistance and mechanical strength. PTFE (polytetrafluoroethylene) filler provides superior chemical resistance against a wide range of aggressive media. Integral inner ring, constructed from 304 stainless steel, provides radial stability and prevents gasket blow-out under pressure cycling. Specifically rated for 150LB flange service, ensuring suitability for a broad range of industrial pressure applications. Supplied as a pair, offering immediate availability for both sides of a connection or for stocking spare inventory.
Specifications
Standards: ASME B16.20-2007 Nominal Pipe Size: 12 inches Pressure Class: 150LB Metal Windings Material: 304 Stainless Steel Filler Material: PTFE Inner Ring Material: 304 Stainless Steel Chemical Base: PTFE Sealant Type: Gasket Indoor/Outdoor Use: Indoor Paintable: No Package Quantity: 2
Applications
This gasket is ideal for creating secure seals in process piping systems across numerous industries. Primary applications include chemical and petrochemical processing, oil and gas pipelines, power generation facilities, and water treatment plants. It is specifically suited for use on raised face and flat face flanges where temperature, pressure, and chemical compatibility requirements demand a high-performance, spiral wound sealing solution.
