Overview

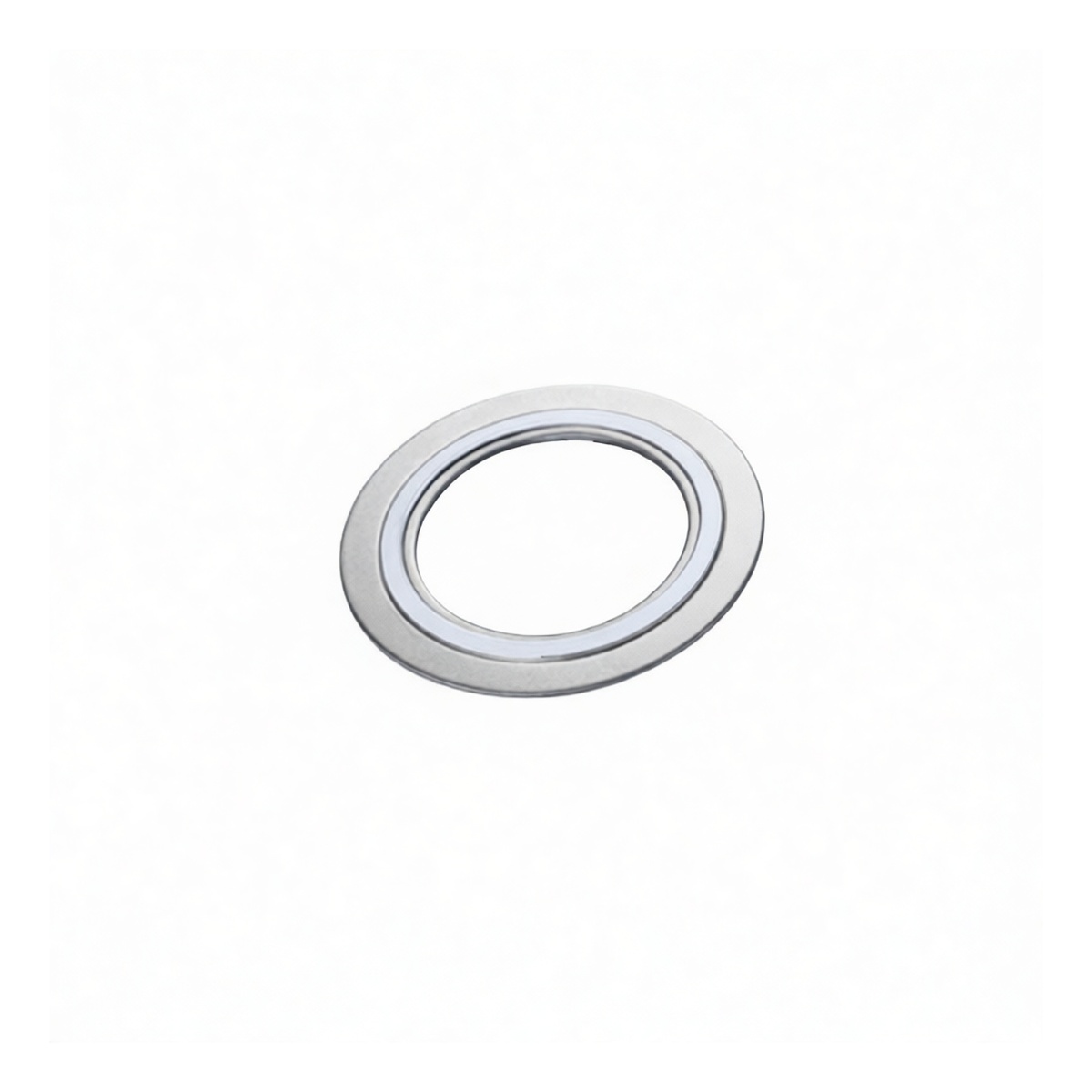

This ASME B16.20-2007 compliant spiral wound gasket is engineered for reliable, high-integrity sealing in critical piping flange connections. Designed for industrial process systems, it combines a resilient metallic winding with sturdy inner and outer rings to create a robust seal capable of withstanding significant pressure, temperature fluctuations, and mechanical stress. The specific material construction offers superior chemical resistance, making it a dependable choice for demanding service environments.
Key Features
Manufactured to ASME B16.20-2007 dimensional standards for guaranteed flange compatibility Features a spiral wound core filled with FEP (Fluorinated Ethylene Propylene) for broad chemical resistance Constructed with a 316L stainless steel outer ring for handling and centering Includes a 316L stainless steel inner ring for precise gasket alignment on the flange Provides excellent thermal stability for continuous service up to 450°F
Ready for immediate installation with no additional preparation required
Suitable for both indoor and outdoor applications in controlled environments
Specifications
Standard: ASME B16.20-2007 Chemical Base: Metal Sealant Type: Gasket Nominal Pipe Size: 6 inches Pressure Class: 150LB Outer Ring Material: 316L Stainless Steel Winding Material: 316L Stainless Steel with FEP (Teflon) Filler Inner Ring Material: 316L Stainless Steel Maximum Service Temperature: 450°F Indoor/Outdoor Use: Both Paintable: No Package Quantity: 5
Applications
Sealing flanges in chemical and petrochemical processing pipelines
Use in oil and gas production and refining systems
Applications in power generation and utilities General industrial plumbing and high-pressure fluid handling Suitable for systems conveying corrosive media compatible with 316L SS and FEP
