Overview

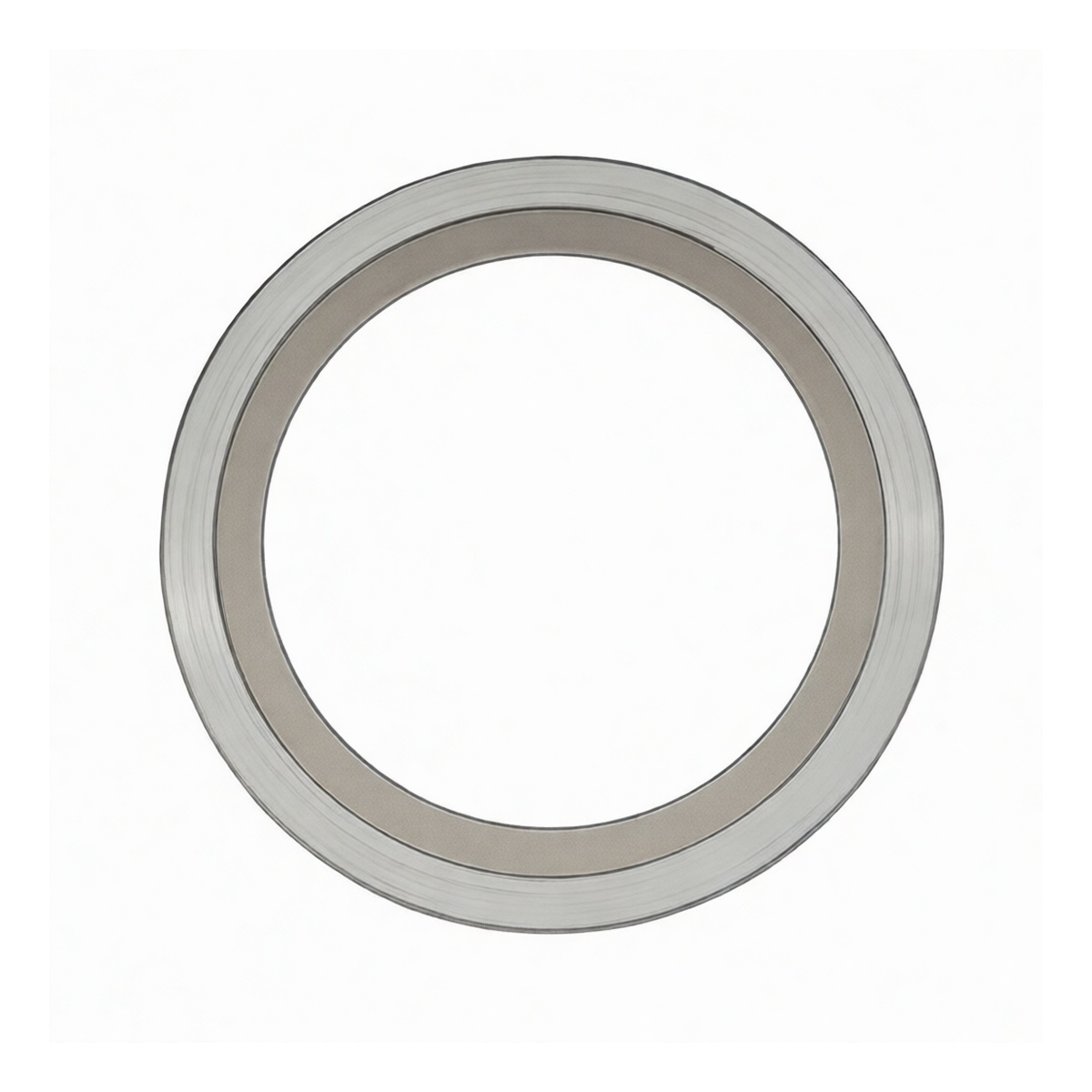

The ASME B16.20 Metal Wound Gasket is engineered for critical sealing in high-pressure, high-temperature industrial piping systems. This gasket is manufactured in strict compliance with the ASME B16.20-2007 standard, ensuring dimensional accuracy and performance reliability for flanged connections. Its robust construction is specifically designed to handle demanding services where leak-tight integrity is paramount. The standard industrial package quantity of 100 units supports efficient inventory management for maintenance and installation projects.
Key Features
ASME B16.20-2007 compliant construction for guaranteed fit and performance 600LB pressure class rating for high-pressure applications
Wound design with fluoropolymer filler for superior sealing resilience 316L stainless steel inner ring provides radial stability and prevents gasket blow-out
Excellent chemical resistance from the inert fluoropolymer filler material Suitable for a wide range of high-temperature services Precision-wound spiral structure accommodates flange rotation and thermal cycling
Specifications
Standard: ASME B16.20-2007 Nominal Pipe Size: 1/2 inch Pressure Class: 600LB Gasket Construction: Metal Wound Filler Material: Fluoropolymer Windings and Inner Ring Material: 316L Stainless Steel Indoor/Outdoor Use: Industrial Paintable: No Package Quantity: 100
Applications
Sealing high-pressure flanges in chemical and petrochemical processing plants
Power generation and steam line connections
Oil and gas pipeline and refinery systems
Industrial heating and boiler feedwater applications General process piping in demanding industrial environments
