Overview

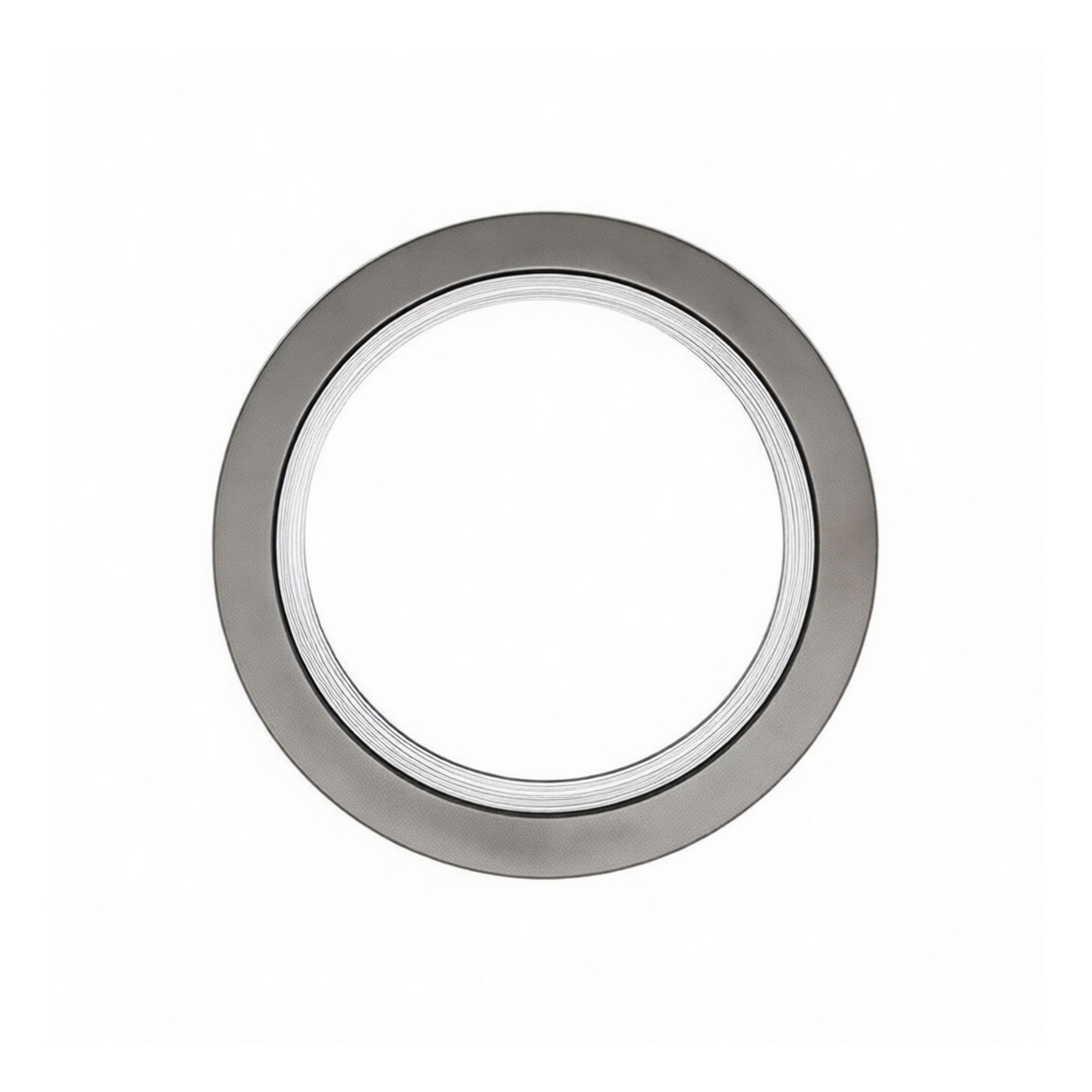

This ASME B16.20-2007 compliant metal wound gasket is engineered for high-pressure, high-reliability sealing in industrial piping systems. Designed for NPS 2 inch flanges with a 300 lb pressure class rating, it provides a critical leak-proof barrier in demanding service environments. The spiral-wound construction combines the strength of metal with the sealing resilience of a fluoropolymer filler, delivering exceptional performance under thermal cycling, pressure fluctuations, and mechanical stress. It is suitable for a wide range of fluid handling applications where a durable and dependable flange seal is paramount.
Key Features
Spiral-wound construction for superior resilience and seal integrity 304 stainless steel outer ring for precise flange alignment and increased bolt loading protection Fluoropolymer (F4) filler material offering excellent chemical resistance and sealing properties Manufactured in strict compliance with ASME B16.20-2007 standards
Robust design suitable for both indoor and outdoor service applications
Effective performance in thermal and pressure cycling conditions
Specifications
Standard: ASME B16.20-2007 Nominal Pipe Size: 2 inch Pressure Class: 300 lb Construction: Spiral-Wound Outer Ring Material: 304 Stainless Steel Filler Material: Fluoropolymer (F4) Windings Material: 304 Stainless Steel Chemical Base: Fluoropolymer Sealant Type: Gasket Indoor/Outdoor Use: Both Paintable: No Package Quantity: 20
Applications
Sealing high-pressure flanges in chemical and petrochemical processing General industrial piping systems for steam, water, and gas
Oil and gas production and pipeline infrastructure
Power generation and utility plant piping
HVAC and industrial refrigeration systems Any application requiring a reliable, standardized seal for NPS 2 inch, 300 lb class flanges
