Overview

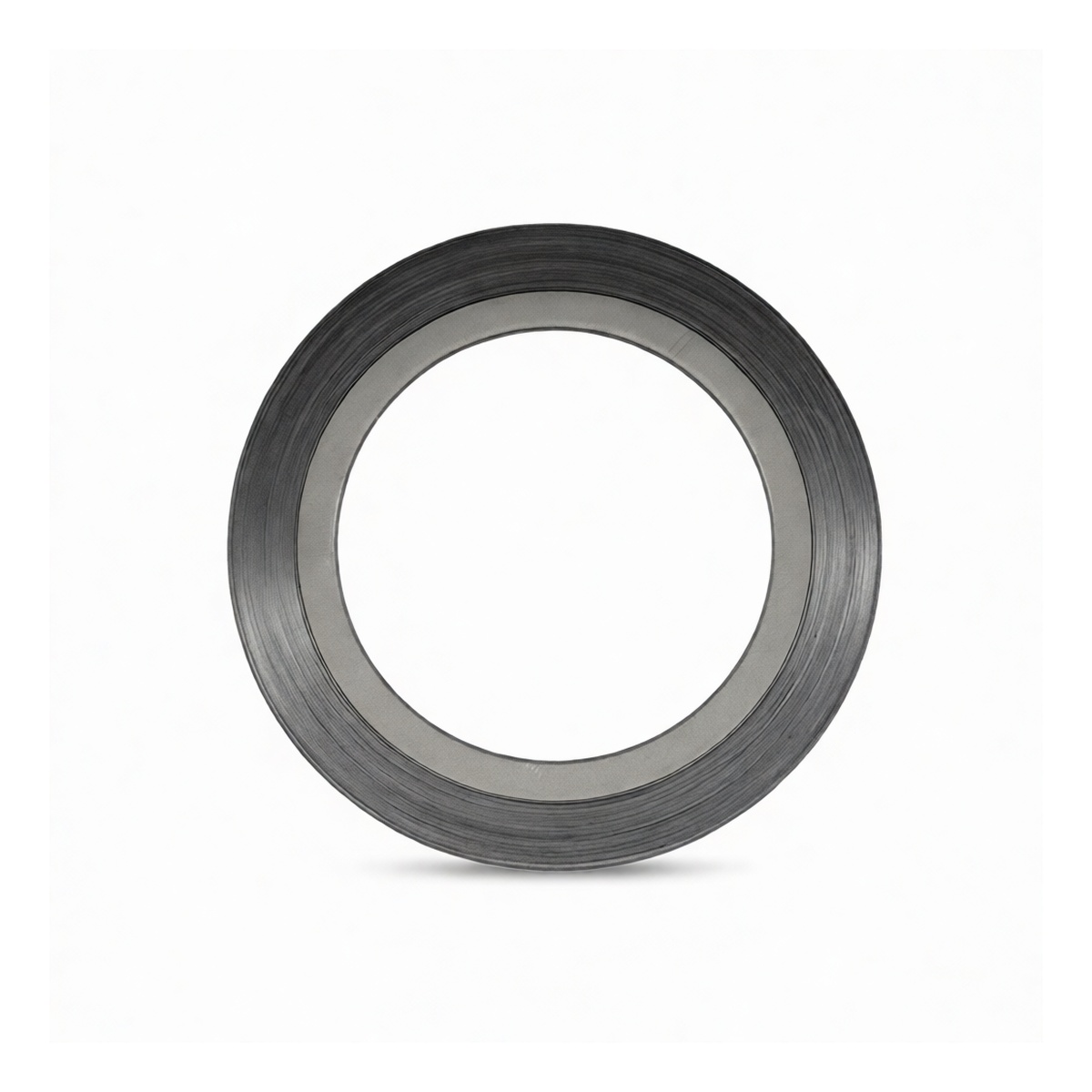

This ASME B16.20-compliant metal wound gasket is engineered for critical sealing in high-pressure and high-temperature piping systems. It is designed to create a reliable, leak-tight seal between flanges in demanding industrial environments. The gasket construction combines the resilience of a graphite filler with the strength and temperature resistance of 304 stainless steel windings, ensuring long-term performance and durability under cyclic loading conditions. The inclusion of an integrated inner ring provides enhanced structural stability during installation and operation.
Key Features
Manufactured to ASME B16.20-2007 standards for guaranteed dimensional accuracy and performance. Constructed with a 304 stainless steel winding strip for excellent corrosion resistance and mechanical strength. Features a high-purity graphite filler offering superior sealing across a wide temperature range. Integrated 304 stainless steel inner ring prevents gasket blow-out and improves centering during flange assembly. Suitable for both indoor and outdoor applications in various service environments. Designed specifically for use with 600 LB pressure class flanges, ensuring compatibility and safety.
Specifications
Standard: ASME B16.20-2007 Nominal Pipe Size: 1-1/2 inches Pressure Class: 600 LB Winding Material: 304 Stainless Steel Filler Material: Graphite Inner Ring Material: 304 Stainless Steel Sealant Type: Gasket Recommended Use: Indoor and Outdoor Paintable: No Package Quantity: 50
Applications
Sealing high-pressure process piping in chemical and petrochemical plants. Flange connections in power generation facilities, including steam and utility lines. Industrial HVAC and mechanical systems requiring robust, reliable gaskets. Pipeline and distribution systems for oil, gas, and other fluids. General industrial maintenance and repair for ANSI/ASME standard flanges.
