Overview

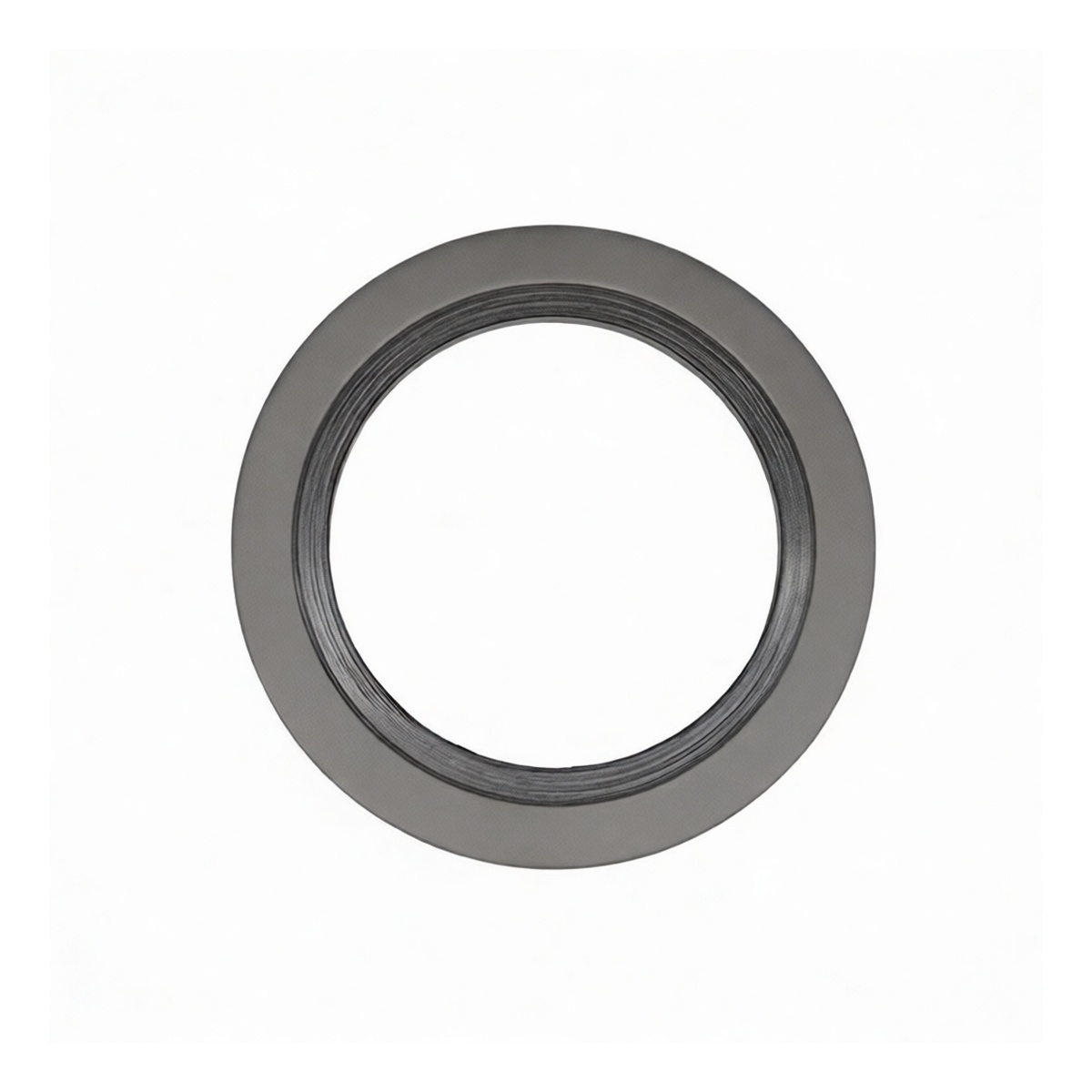

This ASME B16.20-2007 compliant spiral wound gasket is engineered for high-pressure sealing in industrial piping applications. Designed for 1/2" NPS, 300LB rated flanged connections, it provides a robust and reliable seal capable of withstanding demanding thermal cycling, pressure fluctuations, and exposure to a wide range of chemicals. The precision-wound construction ensures consistent performance and long-term leak prevention in critical service lines.
Key Features
ASME B16.20-2007 standard compliance for guaranteed dimensional accuracy and performance
Spiral wound design with resilient graphite filler for superior sealing under variable pressures and temperatures 304 stainless steel inner winding provides structural integrity and corrosion resistance 304 stainless steel outer ring (centering ring) for proper gasket alignment and to prevent over-compression during bolt-up
Excellent thermal stability and chemical resistance suitable for a broad spectrum of industrial media Engineered for reliable, long-term service in high-pressure piping systems
Specifications
Standard: ASME B16.20-2007 Sealant Type: Spiral Wound Gasket Nominal Pipe Size: 1/2 inch Pressure Class: 300LB Filler Material: Graphite Winding Metal: 304 Stainless Steel Outer Ring Material: 304 Stainless Steel Intended Use: Indoor applications only Surface Compatibility: For use on non-painted surfaces Package Quantity: 100 gaskets
Applications
General industrial process piping in chemical and petrochemical plants High-pressure utility lines for steam, water, and air
Refinery and hydrocarbon processing systems
Power generation and boiler feed applications Any flanged connection requiring a certified, high-performance seal for 1/2" NPS, 300LB service
