Overview

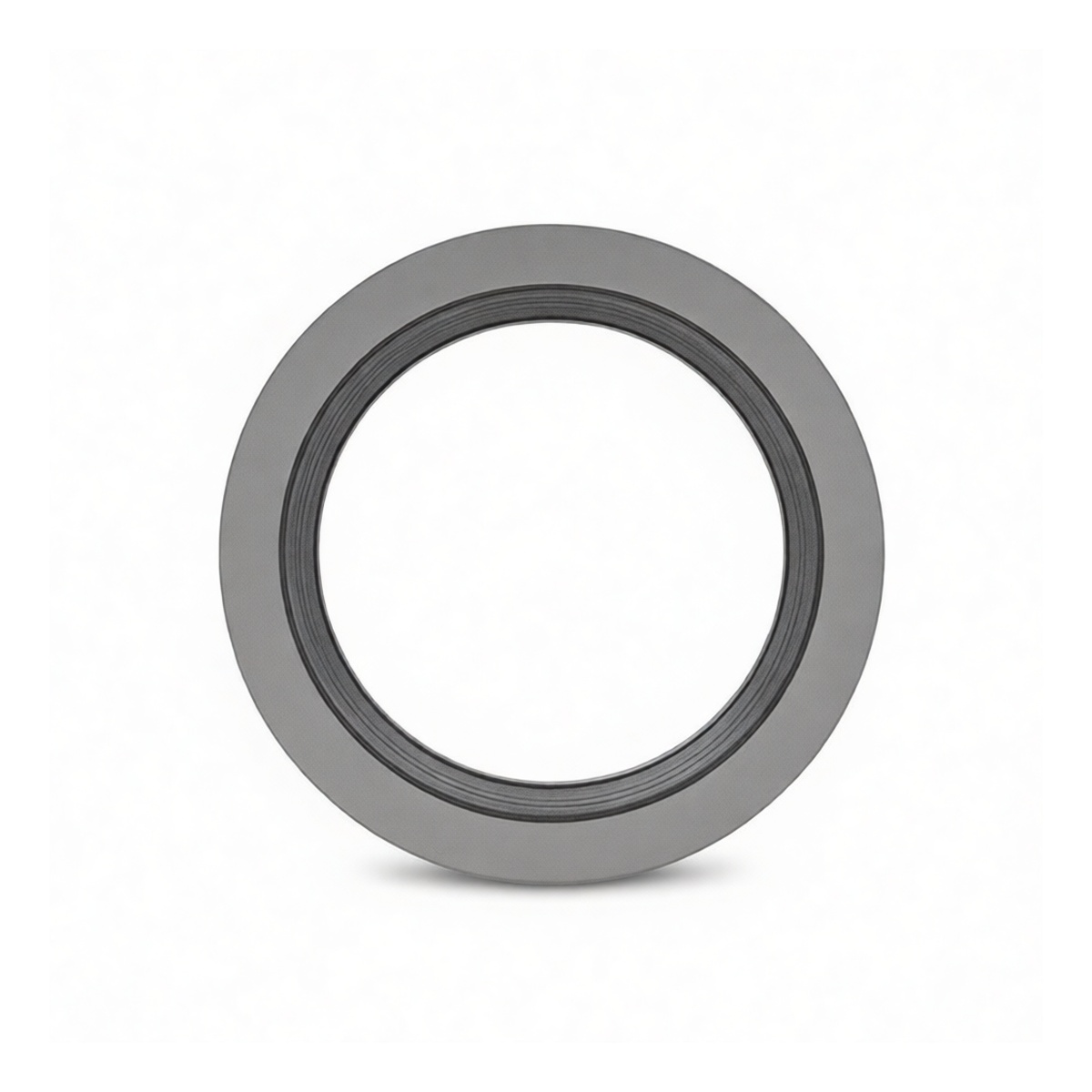

This industrial spiral wound gasket is engineered for high-integrity sealing in demanding piping systems. It is manufactured in full compliance with the ASME B16.20-2007 standard, ensuring dimensional accuracy and performance reliability for critical flange connections. Designed for a nominal pipe size of 14 inches with a 300-pound pressure class rating, this gasket is constructed to handle significant pressure and thermal cycling. Its robust design provides a dependable seal for indoor industrial applications, preventing leaks and maintaining system integrity.
Key Features
ASME B16.20-2007 compliant construction for guaranteed fit and performance
Spiral wound design with resilient graphite filler for superior sealing 304 stainless steel outer ring for added structural support and alignment
Excellent resistance to temperature and pressure fluctuations Engineered for high-pressure sealing in industrial piping systems
Specifications
Standard: ASME B16.20-2007 Chemical Base: Graphite Sealant Type: Spiral Wound Gasket Nominal Pipe Size: 14 inches Pressure Class: 300LB Outer Ring Material: 304 Stainless Steel Filler Material: Graphite Indoor/Outdoor Use: Indoor Paintable: No Package Quantity: 2 gaskets
Applications
High-pressure process piping in chemical and petrochemical plants
Power generation and utility systems
Oil and gas transmission and refining operations
Industrial heating and cooling loops Any flange connection requiring ASME B16.20 compliant sealing solutions
