Overview

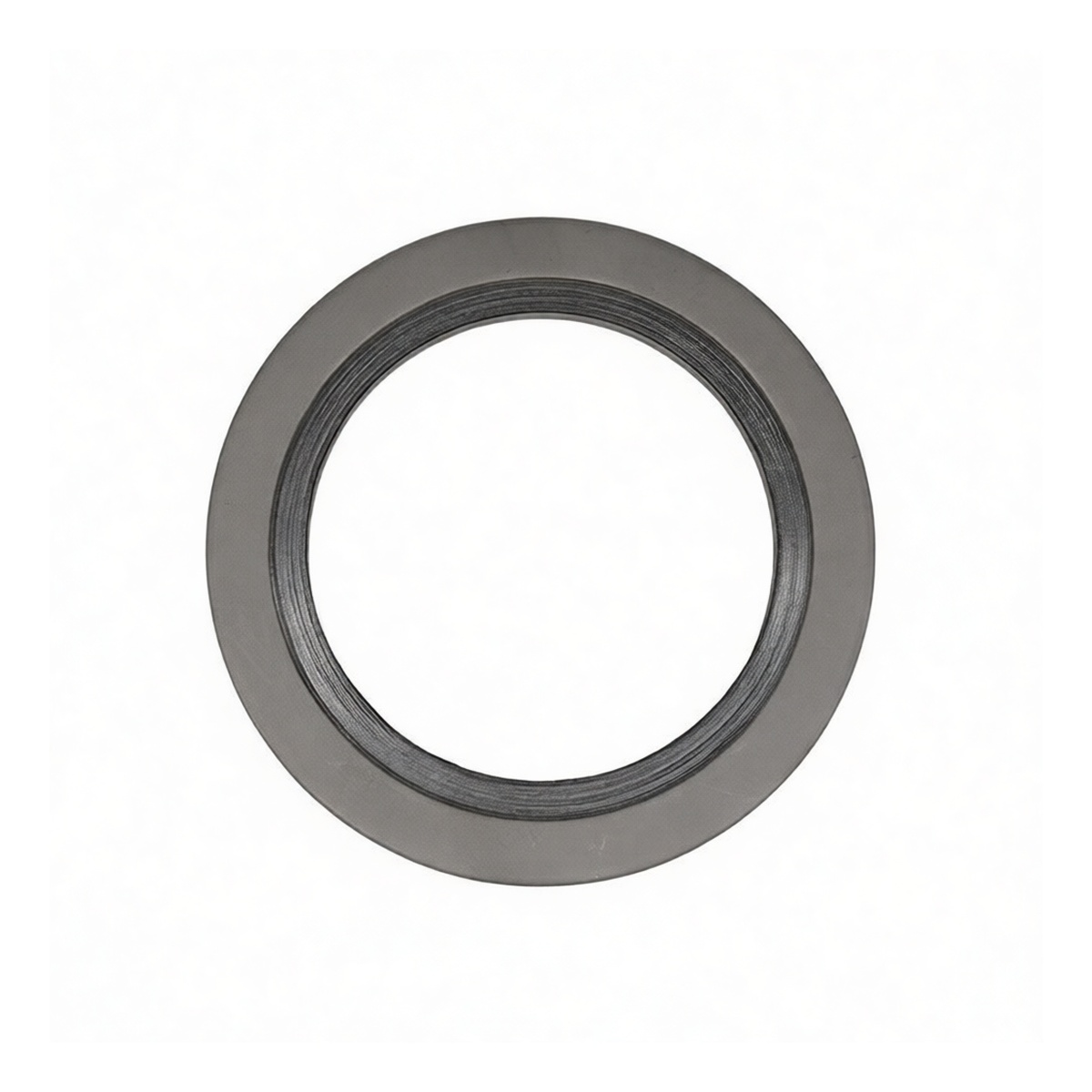

This industrial-grade spiral wound gasket is manufactured to the rigorous ASME B16.20-2007 standard, ensuring precise dimensional tolerances and reliable performance in demanding service. Designed for high-pressure, high-temperature piping systems, it provides a robust metal-to-metal seal for critical flange connections. The gasket is specifically configured for a 2-inch Nominal Pipe Size (NPS) flange with a 900-pound pressure class rating, making it suitable for a wide range of process applications.
Key Features
Engineered to ASME B16.20-2007 specifications for guaranteed interchangeability and fit Constructed with a resilient spiral winding of 316L stainless steel for excellent corrosion resistance
Graphite filler material provides superior sealing across a wide temperature range Integral 316L stainless steel outer ring centers the gasket on the flange for easy installation Outer ring protects the winding from over-compression and mechanical damage Designed for reliable performance in high-pressure and thermal cycling conditions
Specifications
Standard: ASME B16.20-2007 Sealant Type: Spiral Wound Gasket Nominal Pipe Size: 2 inch Pressure Class: 900LB Winding Material: 316L Stainless Steel Filler Material: Flexible Graphite Outer Ring Material: 316L Stainless Steel Intended Use: Indoor applications only Surface Compatibility: Not recommended for use on paintable surfaces Package Quantity: 8 units
Applications
This gasket is ideal for sealing flanges in chemical and petrochemical processing Suitable for use in power generation and oil & gas transmission systems Applicable in high-temperature steam lines and heat exchanger connections Used in refining operations and other industrial process piping requiring ASME compliance
