Overview

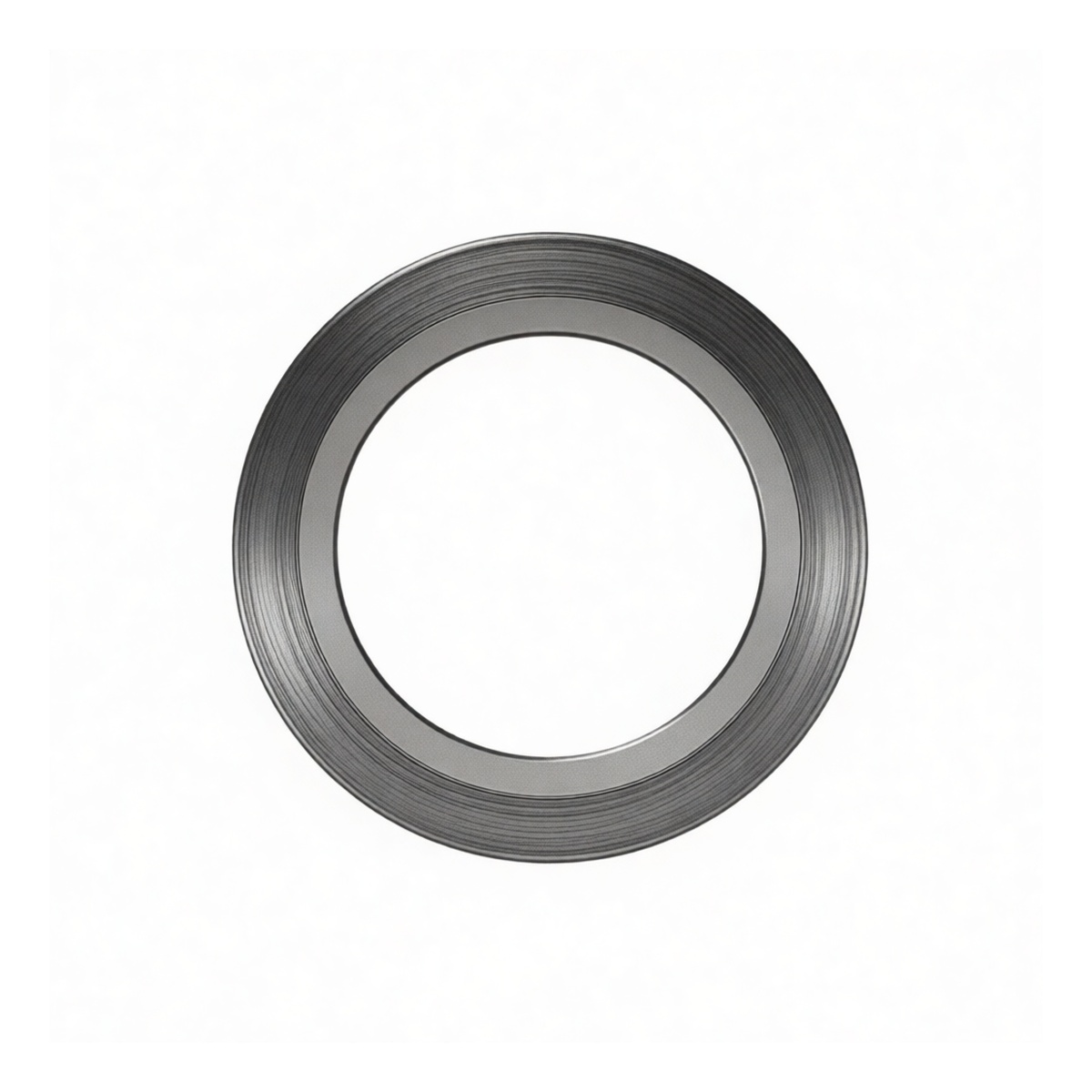

This industrial spiral wound gasket is engineered for critical sealing applications in high-pressure and high-temperature piping systems. It is manufactured in strict compliance with the ASME B16.20-2007 standard, ensuring dimensional accuracy and performance reliability for class 600LB flanges. The gasket is designed for a nominal pipe size of 10 inches and is supplied as a pair, providing a complete sealing solution for a single flange connection. Its construction is specifically intended for demanding service where thermal cycling and pressure fluctuations are common.
Key Features
ASME B16.20-2007 compliant for guaranteed interchangeability 316L stainless steel winding for excellent corrosion resistance
Flexible graphite filler for superior thermal conductivity and seal integrity Integrated 316L stainless steel inner ring for gasket stabilization Inner ring provides crucial protection against gasket blow-out under pressure
Suitable for repeated thermal and pressure cycling conditions
Designed specifically for indoor service applications
Specifications
Standard: ASME B16.20-2007 Sealant Type: Spiral Wound Gasket Nominal Pipe Size: 10 inches Pressure Class: 600LB Winding Material: 316L Stainless Steel Filler Material: Flexible Graphite Inner Ring Material: 316L Stainless Steel Indoor/Outdoor Use: Indoor Paintable: No Package Quantity: 2 gaskets
Applications
High-pressure process piping in chemical and petrochemical plants
Refinery and hydrocarbon processing systems
Power generation and steam utility lines
Industrial heating and cooling systems Any ANSI class 600 flange connection requiring a robust, metallic gasket seal
