Overview

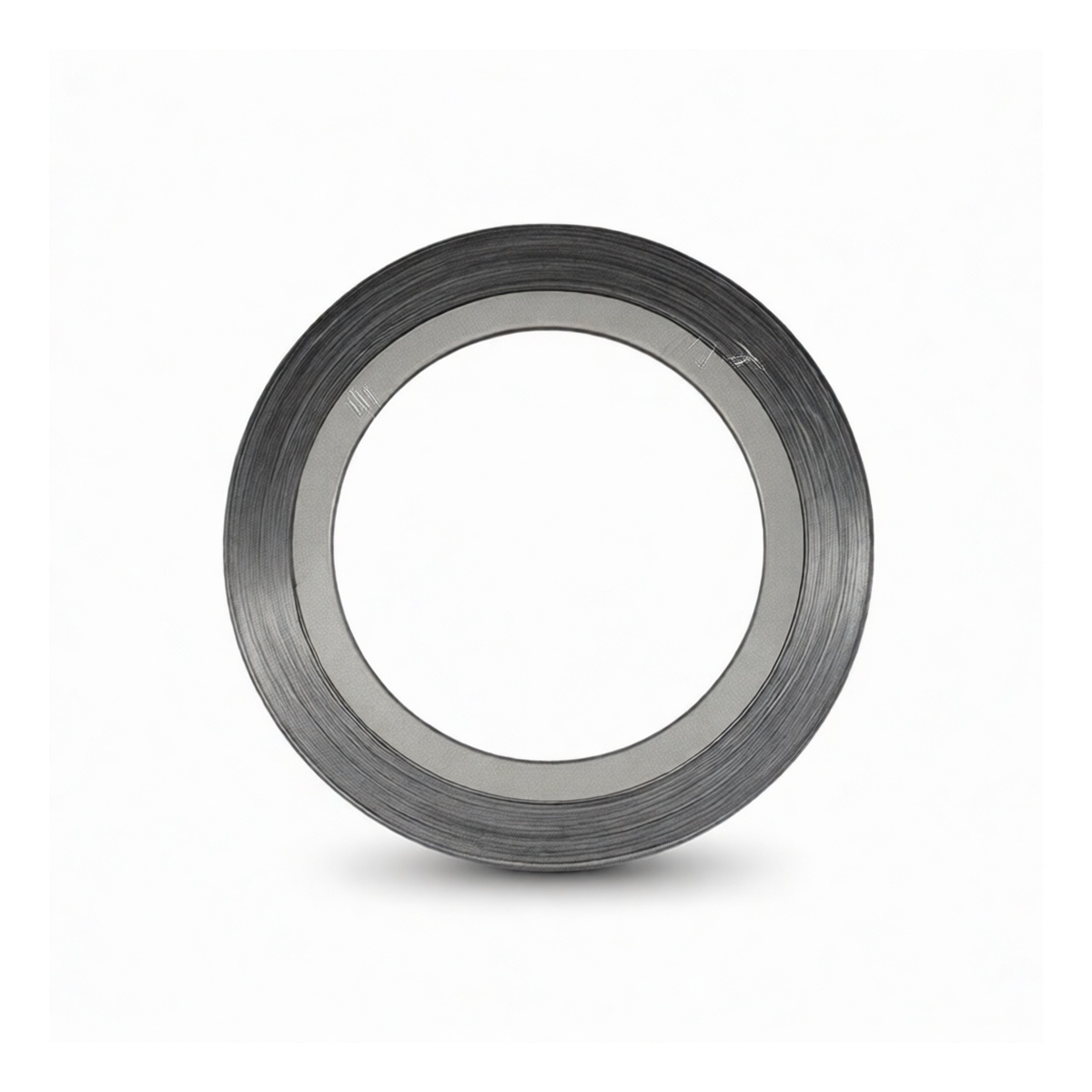

This industrial-grade spiral wound gasket is engineered for high-integrity sealing in critical piping and flange connections. It is manufactured in strict compliance with the ASME B16.20-2007 standard, ensuring dimensional accuracy and performance reliability for pressure vessel and piping applications. Designed for a nominal pipe size of 3 inches with a 300-pound pressure class rating, this gasket is built to handle demanding service conditions involving elevated temperatures, high pressures, and aggressive media. The inclusion of a dedicated inner ring provides superior mechanical stability in the flange assembly.
Key Features
ASME B16.20-2007 compliant construction for guaranteed interchangeability
Robust spiral wound design with alternating metal and filler layers Primary sealing element wound from 316L stainless steel for corrosion resistance
Graphite filler material offers excellent thermal conductivity and resilience Integral 316L stainless steel inner ring prevents gasket winding collapse Inner ring centers the gasket and provides radial support during bolt-up Suitable for high-pressure and high-temperature industrial fluid systems
Individually supplied to prevent damage and maintain seal integrity
Specifications
Standard: ASME B16.20-2007 Sealant Type: Spiral Wound Gasket Nominal Pipe Size: 3 inches Pressure Class: 300 LB Winding Metal: 316L Stainless Steel Filler Material: Flexible Graphite Inner Ring Material: 316L Stainless Steel Intended Use: Indoor industrial environments Paintable: No Packaging Quantity: 12 units per case
Applications
Sealing flanges in chemical and petrochemical processing plants High-pressure steam lines and power generation systems
Oil and gas pipeline connections and refinery equipment
Industrial heating and cooling systems with thermal cycling General process piping requiring ASME-compliant sealing solutions
