Overview

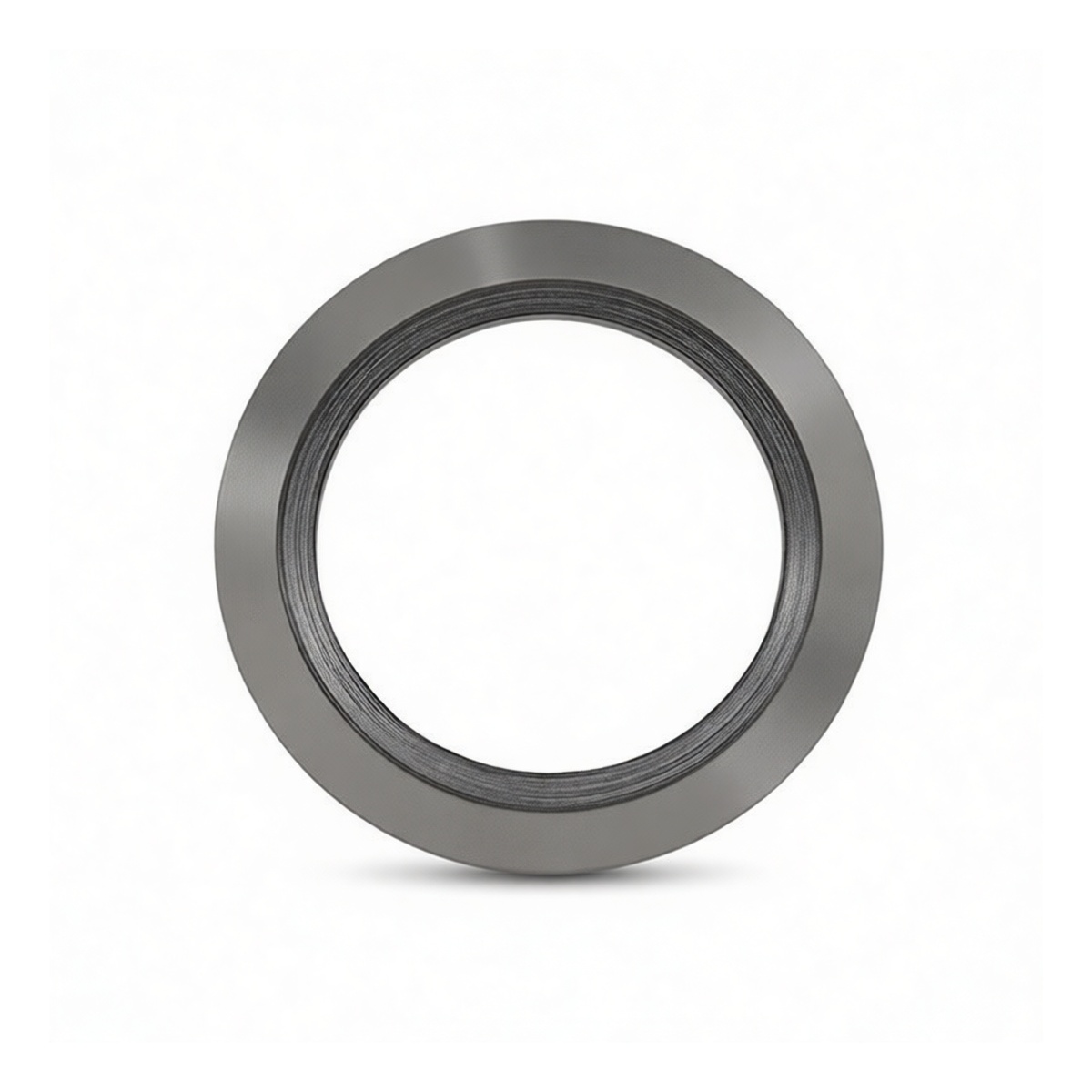

This ASME B16.20-2007 compliant spiral wound gasket is engineered for high-pressure sealing in industrial piping systems. Designed for critical flanged connections, it provides a robust and reliable seal capable of withstanding demanding thermal and chemical service. The 5-inch NPS, 600LB class gasket is constructed with precision-wound materials to ensure long-term stability and leak prevention in process environments where safety and integrity are paramount.
Key Features
ASME B16.20-2007 standard compliant for guaranteed dimensional accuracy and performance 316L stainless steel outer ring for centering and mechanical protection
Spiral wound filler of resilient graphite for superior conformability and seal 316L stainless steel winding metal providing structural integrity and spring-like recovery Engineered for high-pressure and high-temperature service applications
Designed for reliable performance in cyclic loading conditions
Specifications
Standard: ASME B16.20-2007 Sealant Type: Spiral Wound Gasket Nominal Pipe Size: 5 inches Pressure Class: 600LB Outer Ring Material: 316L Stainless Steel Winding Material: 316L Stainless Steel Filler Material: Graphite Chemical Base: Graphite Indoor/Outdoor Use: Indoor Paintable: No Package Quantity: 2
Applications
High-pressure process piping in chemical and petrochemical plants
Refinery and power generation flanged connections
Industrial heating and cooling systems
Pipeline and distribution systems requiring ASME compliance General industrial service for steam, gas, and hydrocarbon fluids
