Overview

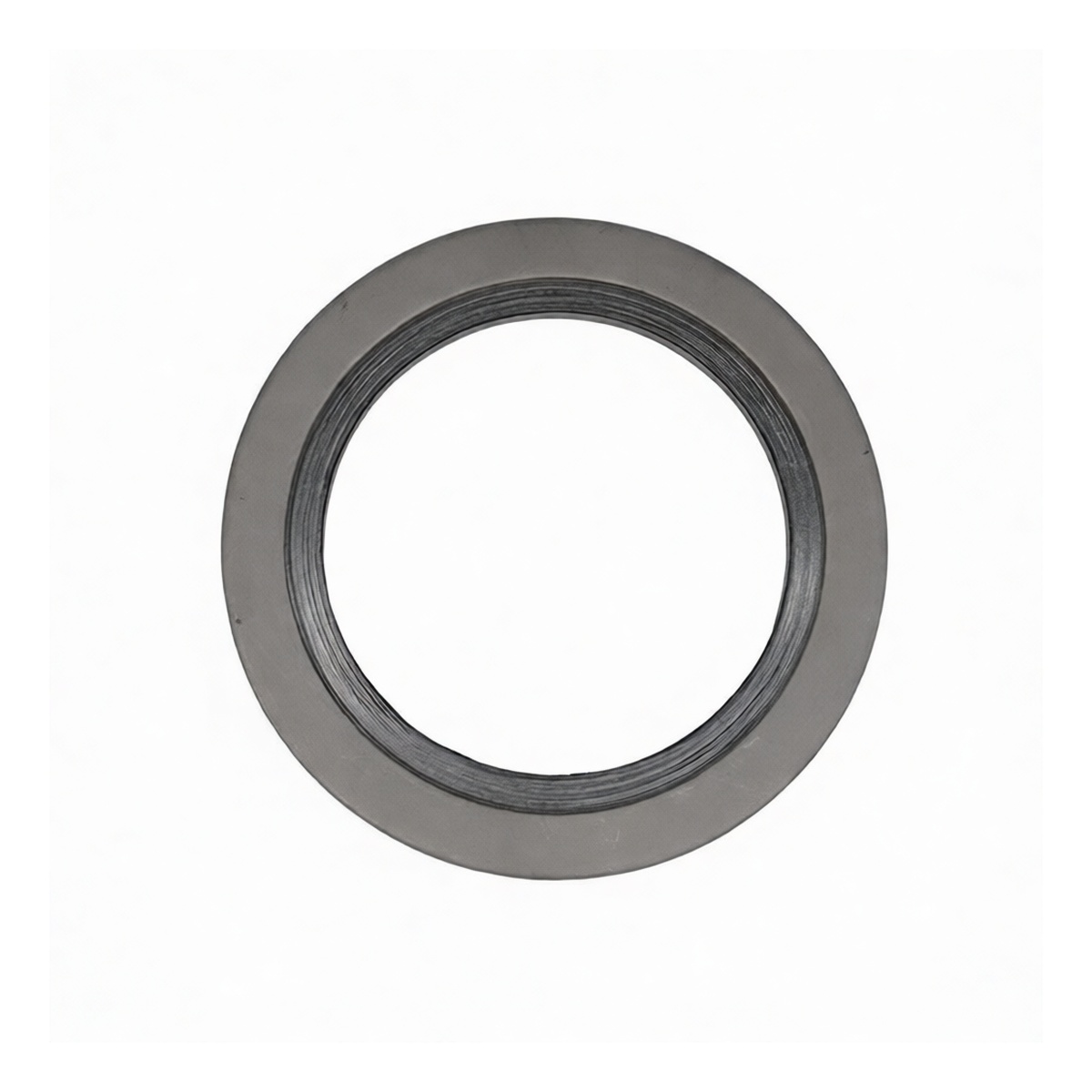

This C-shape spiral wound gasket is a precision sealing component engineered for demanding industrial flange connections. It is specifically designed for use on 5-inch nominal pipe size flanges, providing a reliable, high-integrity seal in high-pressure and high-temperature service. The gasket's robust construction ensures long-term performance, resisting the effects of system vibration, pressure fluctuations, and thermal cycling. It is suitable for sealing a wide range of industrial media, including steam, oil, gas, and many chemical process fluids, in both indoor and outdoor installations.
Key Features
C-shaped outer ring for simplified installation and radial location
Spiral wound construction with resilient graphite filler for superior sealing 316L stainless steel winding provides excellent corrosion resistance Engineered for service pressures up to 285 PSI Withstands a broad temperature range from cryogenic to 1500°F
Excellent recovery and seal integrity under bolt load
Suitable for use on raised face and flat face flanges
Specifications
Gasket Type: Spiral Wound, C-Shape with Outer Guide Ring Nominal Pipe Size: 5 inches Pressure Rating: 285 PSI Winding Material: 316L Stainless Steel Filler Material: Flexible Graphite Standards: Meets Industry Standards Chemical Base: Graphite Sealant Type: Gasket Indoor/Outdoor Use: Both Paintable: No Package Quantity: 8
Applications
Sealing high-pressure steam lines and boiler feed systems
General process piping in chemical and petrochemical plants
Oil and gas transmission and refining operations Power generation and co-generation facilities Heating, ventilation, and industrial HVAC systems Marine and shipboard piping applications
