Overview

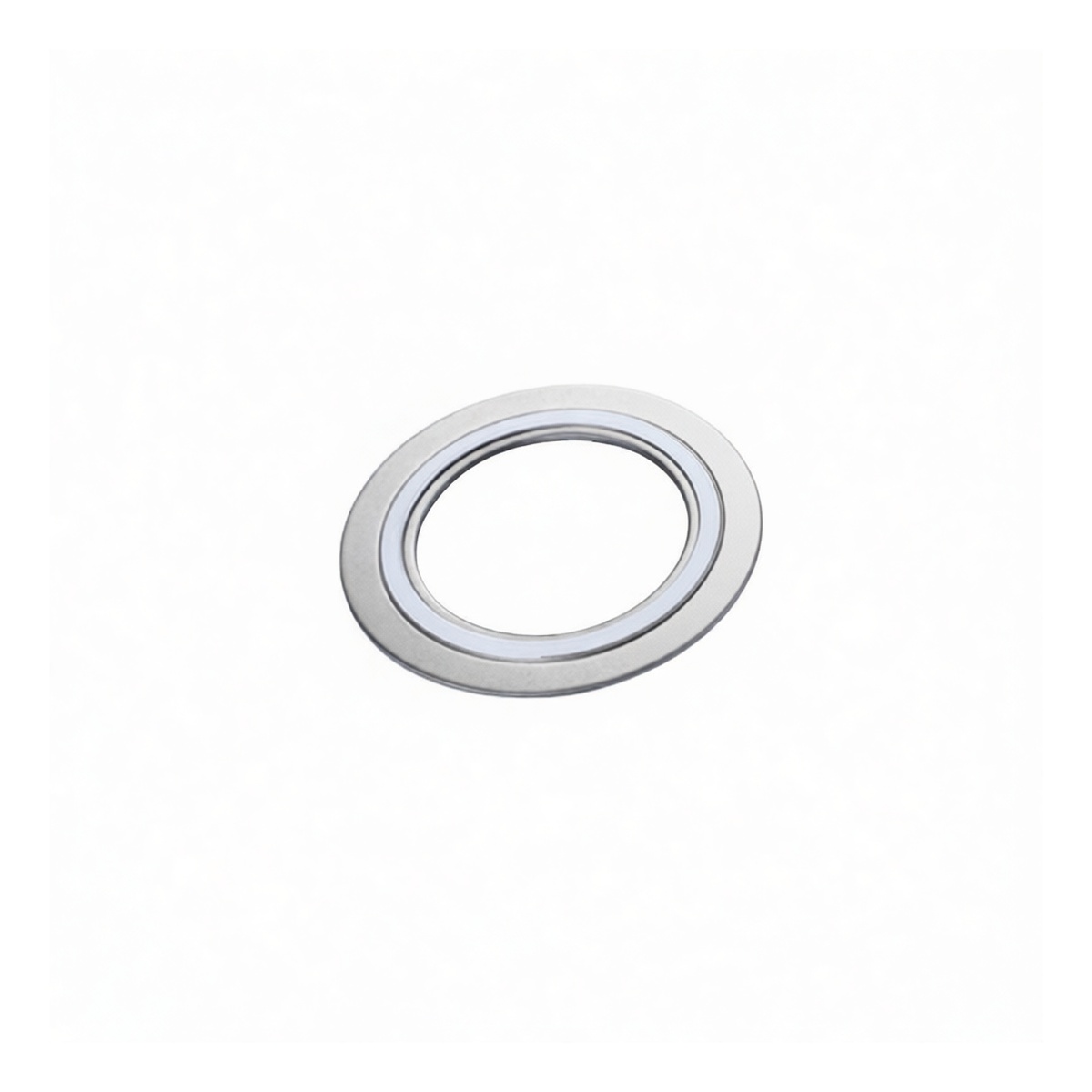

This 6-inch spiral wound gasket is engineered for high-pressure sealing applications in demanding industrial piping systems. Manufactured to stringent HG standards, it is designed to create a reliable, leak-free seal in flange connections operating at pressures up to 600LB. The gasket's robust construction combines the mechanical strength of stainless steel with the superior chemical resistance of a polytetrafluoroethylene filler, making it a critical component for maintaining system integrity in both indoor and outdoor environments.
Key Features
Engineered for high-pressure service up to 600LB ratings Constructed with a corrosion-resistant 304 stainless steel inner and outer ring for structural stability and centering Features a polytetrafluoroethylene (PTFE) filler layer for exceptional chemical resistance and sealing performance Manufactured in compliance with HG/T 20631-2009 standards for assured quality and dimensional consistency
Suitable for reliable use in both indoor and outdoor industrial applications Provides a durable seal in flange connections, preventing fluid or gas leaks
Specifications
Standards: HG Chemical Base: Polytetrafluoroethylene Sealant Type: Gasket Indoor/Outdoor Use: Both Paintable: No Nominal Pipe Size: 6 Inch Pressure Class: 600LB Gasket Style: D-Type with Inner and Outer Guide Rings (D2232) Windings Material: 304 Stainless Steel Filler Material: Polytetrafluoroethylene (PTFE) Guide Ring Material: 304 Stainless Steel Unit Quantity: 1
Applications
Ideal for sealing flange connections in chemical and petrochemical processing pipelines Suitable for use in high-pressure oil and gas transmission and distribution systems Applicable in power generation facilities for steam, water, and other utility lines
Effective for sealing in industrial HVAC and mechanical systems requiring chemical resistance Recommended for general industrial plumbing and piping maintenance where a robust, reliable gasket is required
