Overview

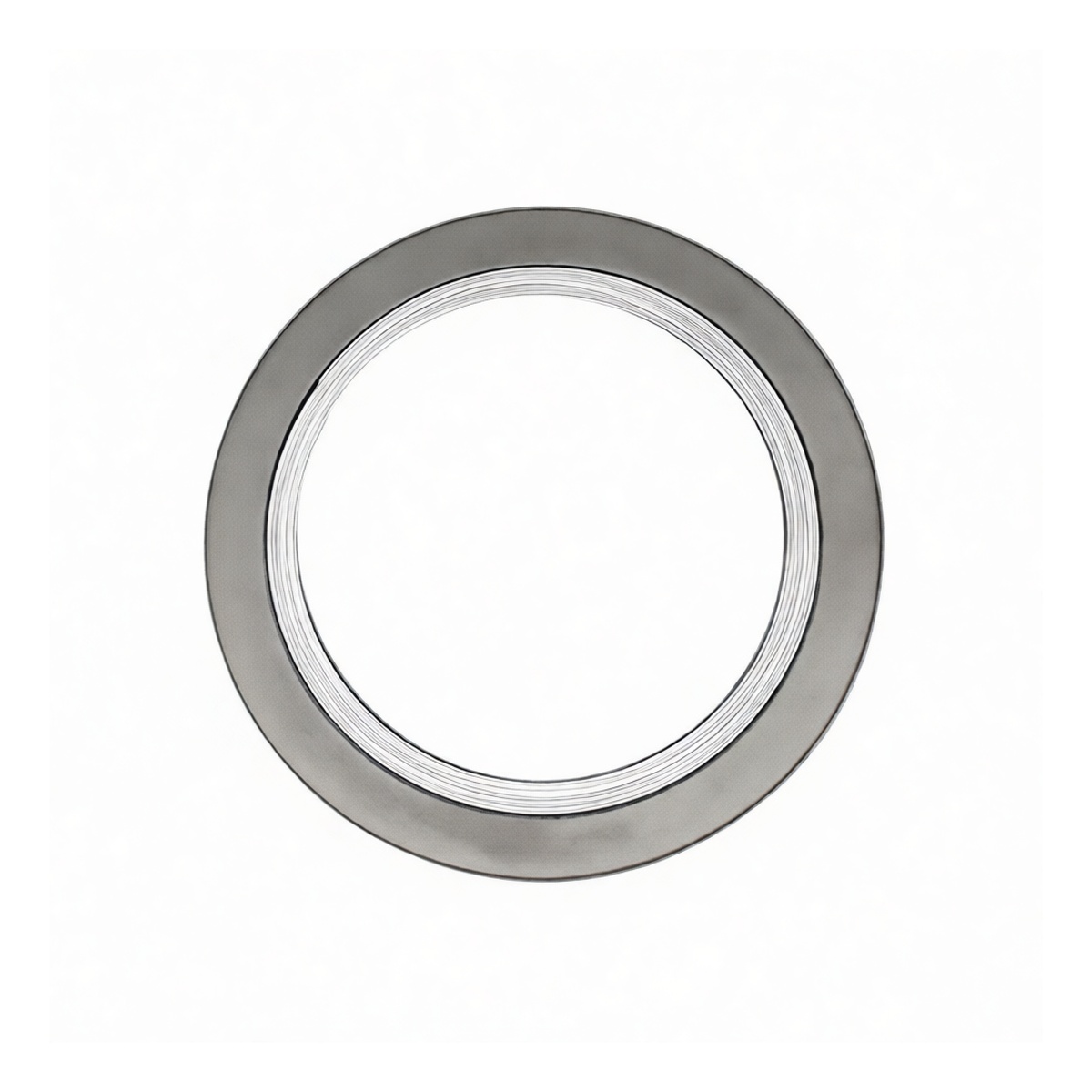

This industrial-grade spiral wound gasket is engineered for high-pressure sealing in critical flange connections. Designed to meet the rigorous HG/T 20631-2009 standard, it is built for reliability in demanding process environments. The gasket features a robust construction with a 304 stainless steel winding and a polytetrafluoroethylene (PTFE) filler, delivering superior performance against a broad spectrum of corrosive chemicals and media. The inclusion of 304 stainless steel inner and outer rings provides structural stability, prevents gasket blowout, and guards against over-compression during bolt-up, ensuring a consistent and lasting seal.
Key Features
Constructed with a 304 stainless steel metal winding for strength and resilience
PTFE filler provides exceptional chemical resistance and a wide temperature operating range 304 stainless steel inner and outer rings for enhanced stability and installation control Manufactured to the precise dimensions and tolerances of the HG/T 20631-2009 standard
Suitable for sealing in both indoor and outdoor industrial installations Engineered for high-pressure applications up to 600LB rating Designed for use on standard 2-inch flanged connections
Specifications
Standard: HG/T 20631-2009 Nominal Size: 2 inches Pressure Class: 600LB Configuration: C2230 (with inner and outer rings) Metal Winding Material: 304 Stainless Steel Filler Material: Polytetrafluoroethylene (PTFE) Inner Ring Material: 304 Stainless Steel Outer Ring Material: 304 Stainless Steel Chemical Base: Polytetrafluoroethylene Sealant Type: Spiral Wound Gasket Indoor/Outdoor Use: Both Paintable: No Package Quantity: 36 units
Applications
Sealing high-pressure flanges in chemical and petrochemical processing Piping systems handling corrosive fluids, acids, and solvents
Refinery and power generation infrastructure Industrial pump, valve, and heat exchanger connections General industrial maintenance and repair where a reliable, chemical-resistant seal is required
