Overview

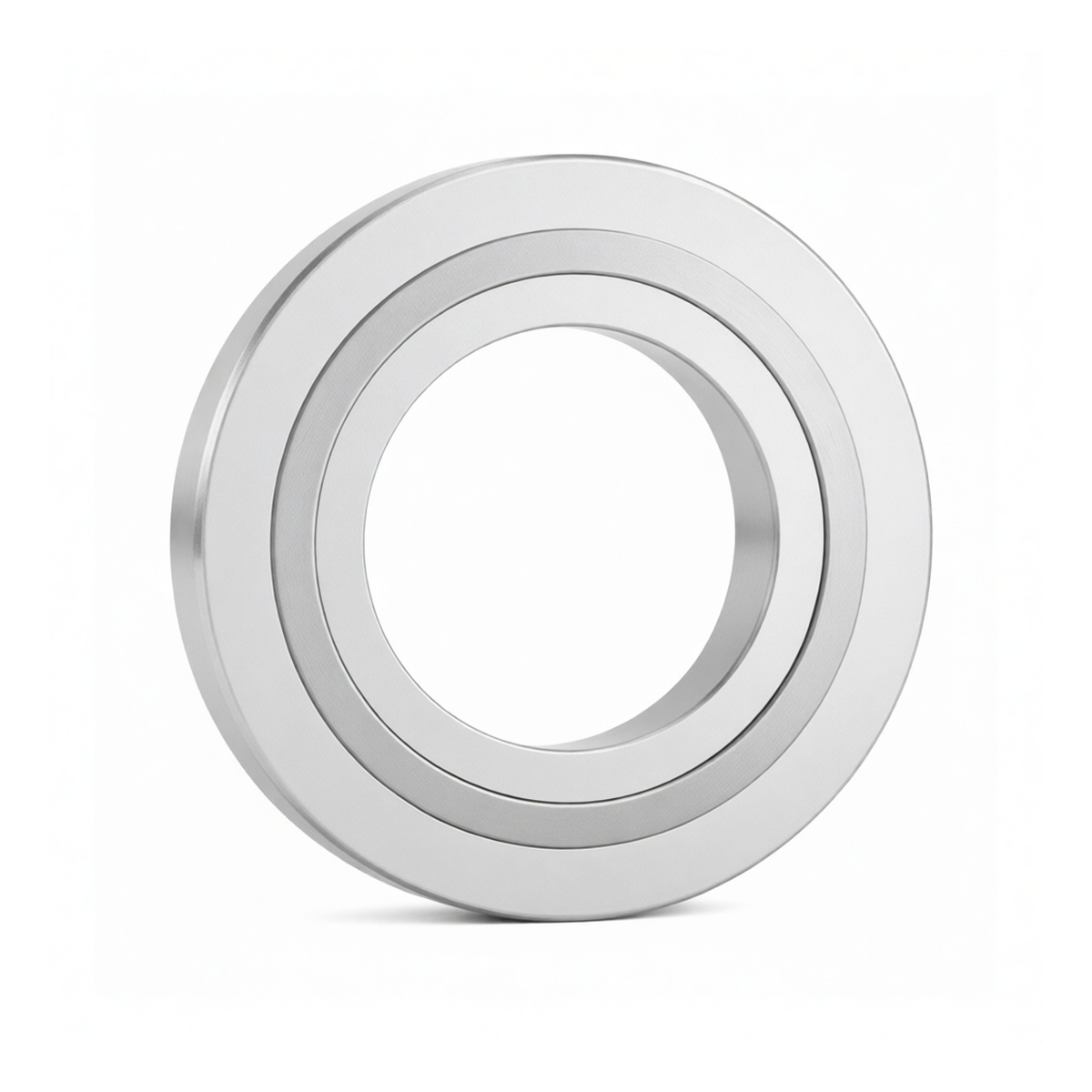

The HG Standard Graphite Gasket is engineered for high-performance sealing in critical flanged connections. It is constructed to handle demanding industrial environments, providing a reliable seal against fluids and gases. The design incorporates a flexible graphite filler wrapped by inner and outer metal reinforcement rings, creating a robust seal that resists blowout under high pressure and thermal cycling. This gasket is suitable for a broad range of service conditions in both indoor and outdoor installations.
Key Features
Flexible graphite filler ensures effective sealing across a wide temperature range
Inner and outer metal reinforcement rings provide superior stability and mechanical strength Enhanced blowout resistance for high-pressure applications
Conforms to HG industry standards for dimensional consistency and performance
Suitable for use in both controlled indoor environments and exposed outdoor conditions
Specifications
Standard: HG Chemical Base: Graphite Sealant Type: Gasket Nominal Pipe Size: 1.5 inches (DN40) Pressure Class: PN16 (approximately 232 PSI) Indoor/Outdoor Use: Both Paintable: No Package Quantity: 100 units
Applications
Sealing pipe flanges in chemical and petrochemical processing plants High-temperature and high-pressure steam line connections
Heat exchanger and boiler feed system assemblies General industrial piping systems requiring a reliable, standardized seal Maintenance and repair operations across various utility and manufacturing sectors
