Overview

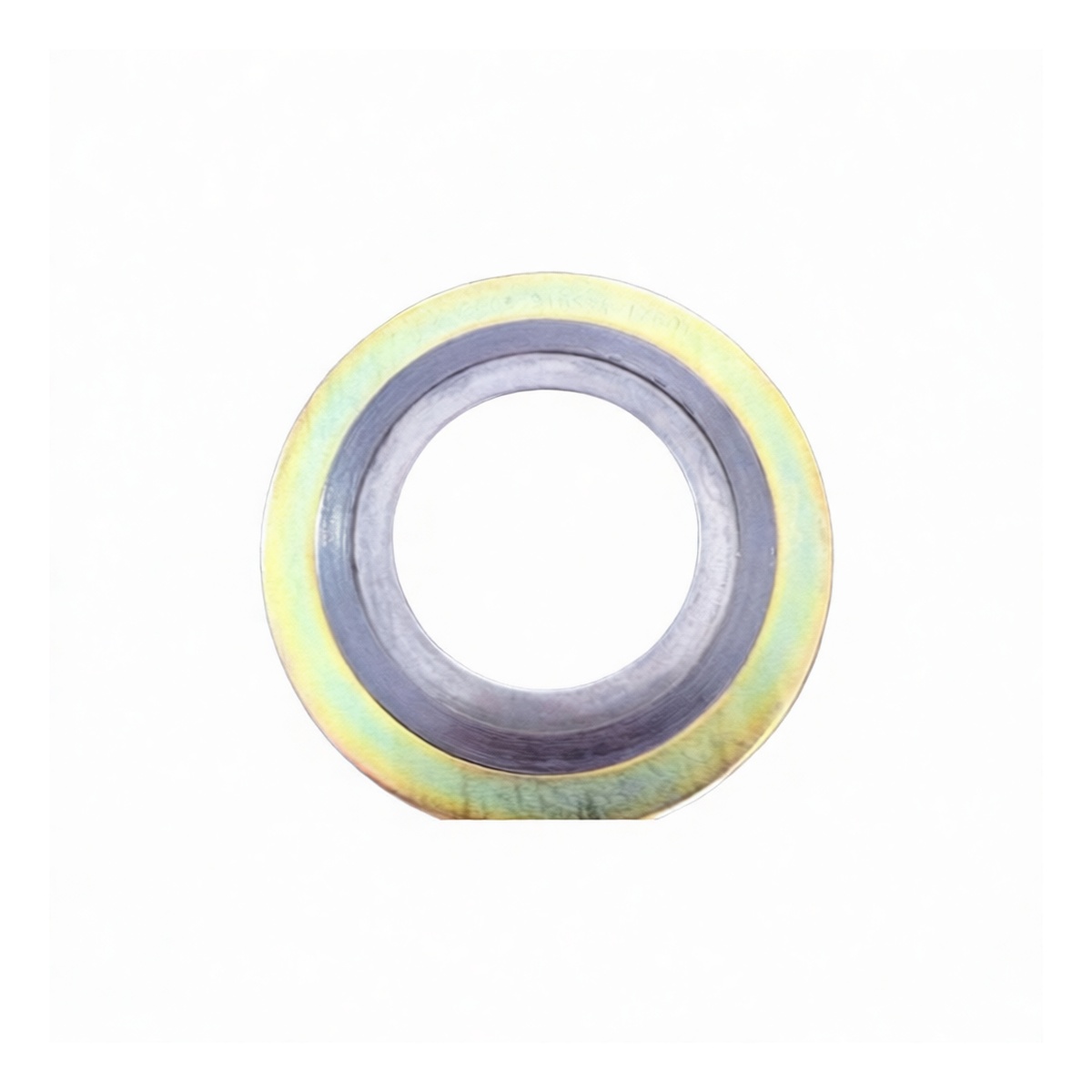

This industrial-grade spiral wound gasket is manufactured to the stringent HG/T20610-2009 standard, ensuring compatibility and performance in demanding piping systems. Designed for a nominal pipe size of 1/2 inch (DN15) and a pressure rating of 285 PSI (PN100), it provides a robust and reliable seal for high-pressure flange connections. The gasket's engineered layered construction combines structural integrity with sealing flexibility, making it a critical component for preventing leaks in process piping across numerous industries.
Key Features
Engineered to HG/T20610-2009 standard for assured dimensional accuracy and performance Rated for service up to 285 PSI for high-pressure sealing applications Dual-ring construction with inner and outer carbon steel rings for enhanced gasket control and seating Winding core of 304 stainless steel and flexible graphite for a resilient, conforming seal
Suitable for both indoor and outdoor installations in industrial environments
Provides excellent chemical resistance to a wide range of industrial media
Specifications
Standard: HG Nominal Size: 1/2 Inch (DN15) Pressure Rating: 285 PSI (PN100) Construction: D1222 - Carbon Steel Outer Ring, 304 Stainless Steel Inner Ring Filler Material: Flexible Graphite Winding Material: 304 Stainless Steel Sealant Type: Spiral Wound Gasket Indoor/Outdoor Use: Both Paintable: No Package Quantity: 100
Applications
General process piping in chemical and petrochemical plants High-pressure utility lines in power generation facilities
Flange connections in oil and gas transmission systems
Industrial heating and cooling systems Water treatment and distribution infrastructure
