Overview

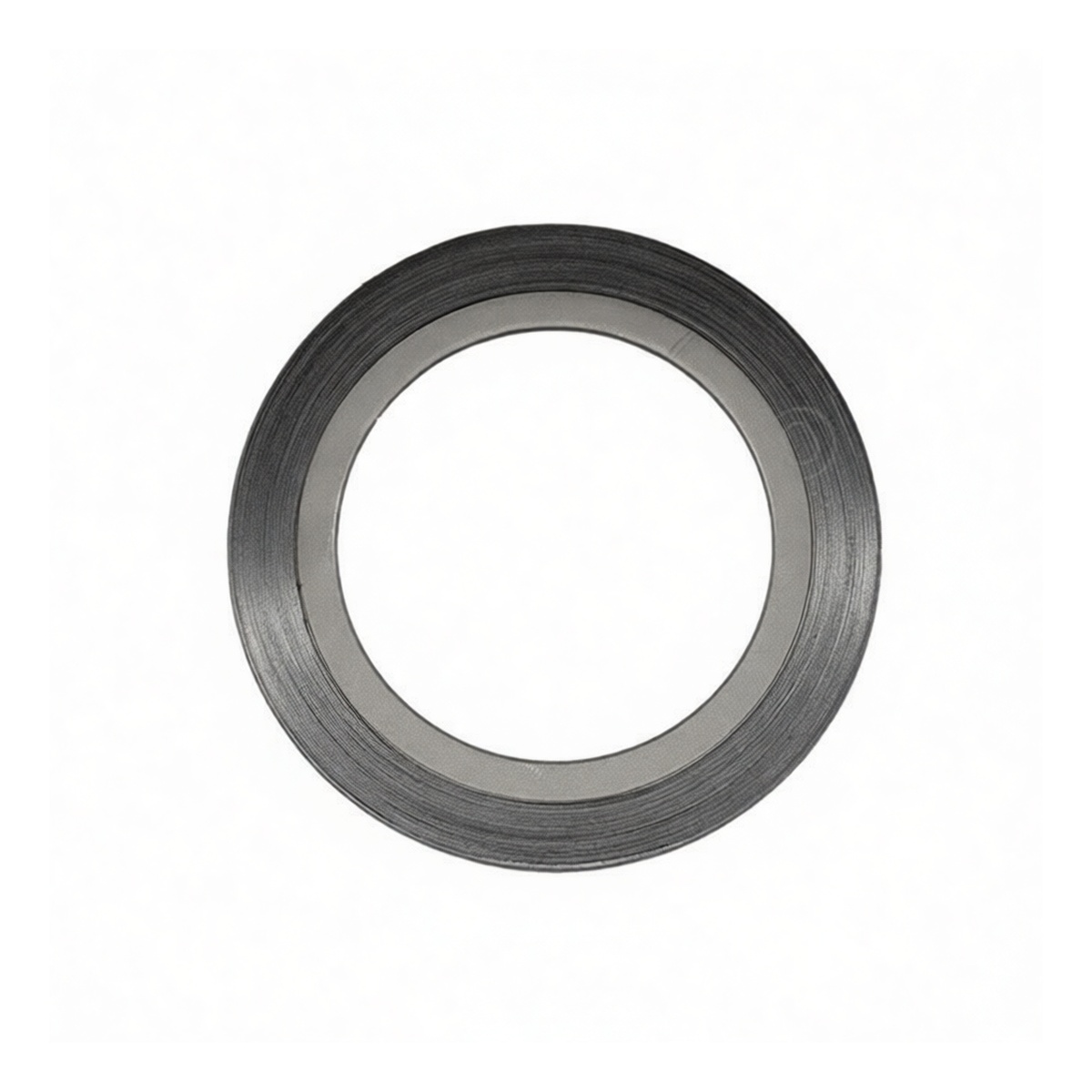

This spiral wound gasket is engineered for high-integrity sealing in critical piping and vessel flange connections within industrial processing environments. Manufactured in strict compliance with the HG/T 20631-2009 standard, it is designed to deliver reliable performance under significant pressure and thermal cycling. The gasket is constructed with a 316L stainless steel inner ring and outer windings, encapsulating a compressible graphite filler. This combination creates a robust seal capable of accommodating flange rotation and surface imperfections, making it a trusted component for preventing leaks in demanding service applications.
Key Features
Manufactured to HG/T 20631-2009 industry standard for dimensional consistency and performance
Construction features a resilient graphite filler for superior conformability and seal 316L stainless steel inner ring provides radial stability and prevents gasket blow-out 316L stainless steel outer windings offer excellent corrosion resistance
Suitable for both indoor and outdoor installation and service
Engineered for reliable performance across a wide range of temperatures and pressures
Specifications
Standard: HG/T 20631-2009 Nominal Pipe Size: 2 inches (DN50) Pressure Class Rating: 150LB Gasket Type: Spiral Wound with Inner Ring Windings Material: 316L Stainless Steel Filler Material: Flexible Graphite Inner Ring Material: 316L Stainless Steel Chemical Base: Graphite Sealant Type: Gasket Indoor/Outdoor Use: Both Paintable: No Package Quantity: 25 gaskets
Applications
Sealing flanges in chemical and petrochemical processing systems High-pressure piping connections in oil and gas production and refining Heat exchanger, valve, and pump connections in power generation General industrial service for steam, hydrocarbon, and other process fluids
