Overview

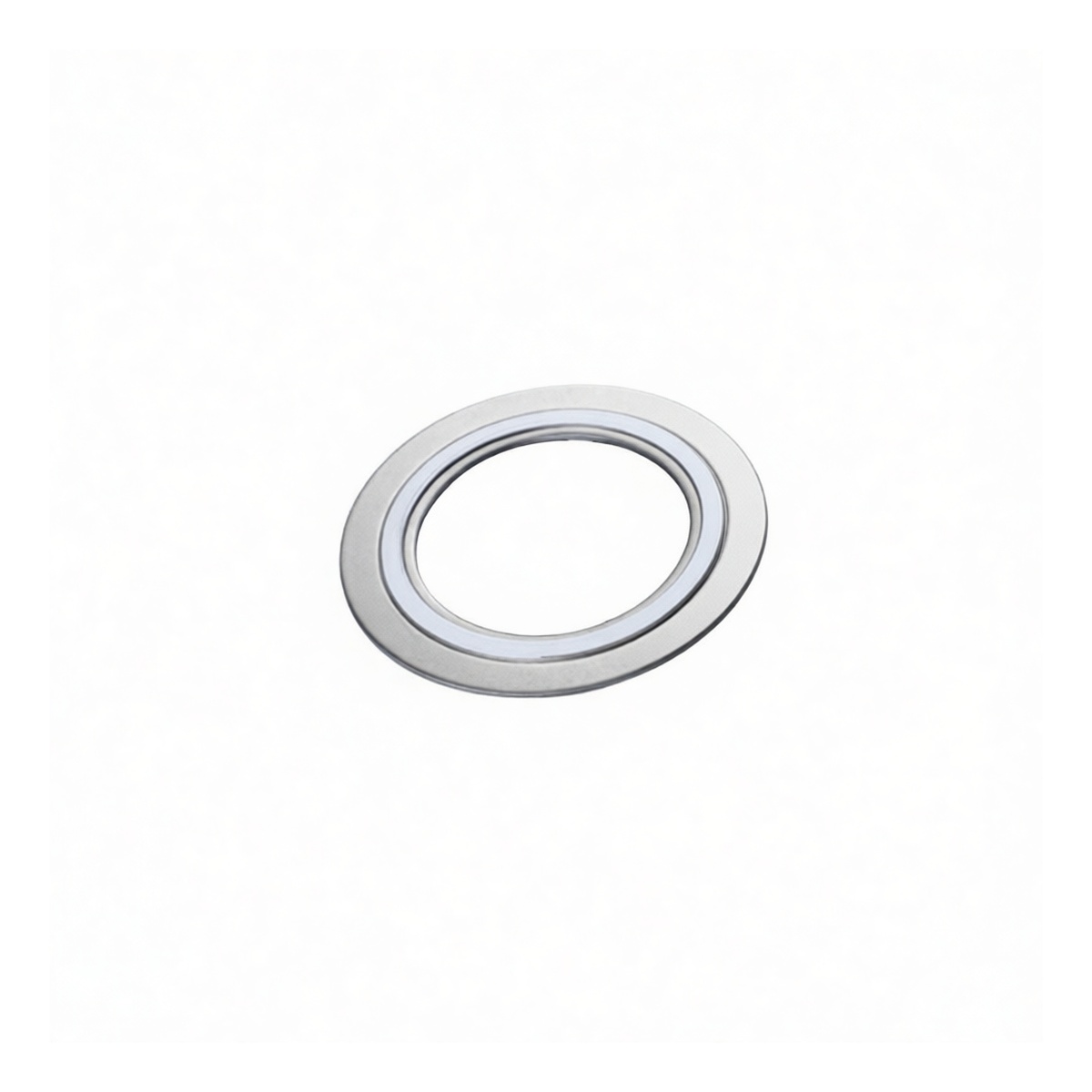

This industrial-grade spiral wound gasket is engineered for high-integrity sealing in demanding piping and pressure vessel applications. Designed to meet the rigorous HG/T standard, it provides a reliable, leak-tight seal for flange connections operating under significant pressure and thermal stress. The gasket features a robust construction with alternating layers of metal and filler, creating a resilient seal that accommodates flange rotation and surface imperfections. It is suitable for sealing a wide range of aggressive media in critical process environments.
Key Features
Constructed with corrosion-resistant 316L stainless steel windings for durability
Fluoropolymer filler provides excellent chemical resistance and sealing properties Designed for 600LB pressure class service, indicating high-pressure capability Standard DN65 nominal pipe size for consistent fitment Metal-on-metal outer and inner rings for controlled compression and increased stability
Engineered to perform under thermal cycling and variable load conditions
Specifications
Standard: HG/T Pressure Class: 600LB Nominal Size: DN65 (approximately 2.5 inches) Gasket Type: Spiral Wound with Inner and Outer Rings Windings Material: 316L Stainless Steel Filler Material: Fluoropolymer (PTFE) Sealant Type: Gasket Indoor/Outdoor Use: Both Paintable: No Package Quantity: 10
Applications
Sealing flanges in chemical and petrochemical processing systems High-pressure steam and utility piping connections
Refinery and hydrocarbon processing equipment
Heat exchanger and pressure vessel manways Pump and valve connections handling corrosive fluids
