Overview

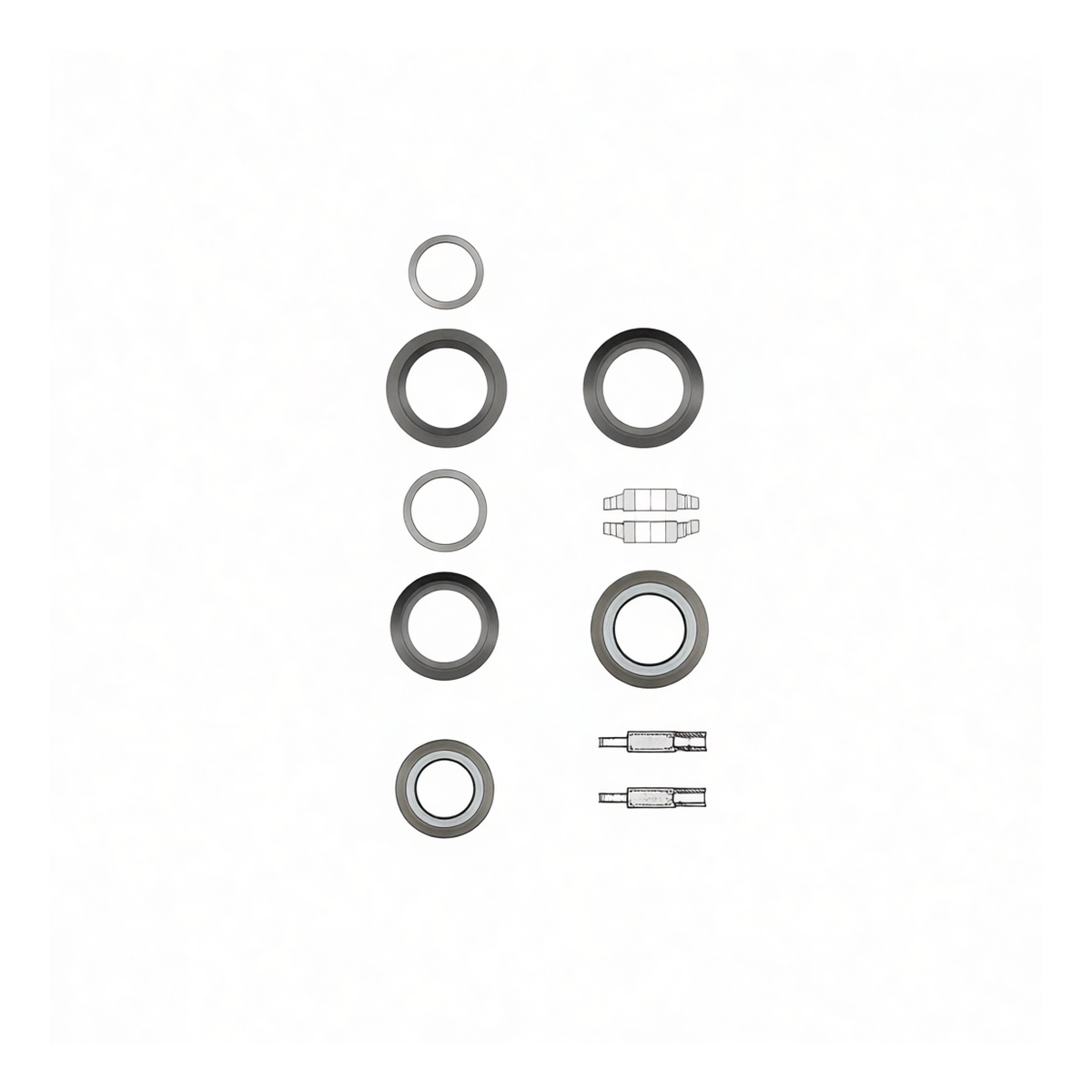

This C-ring style metal wound gasket is engineered for reliable, high-integrity sealing in demanding industrial flanged connections. It is manufactured in strict compliance with the HG/T20610-2009 standard, ensuring dimensional consistency and performance predictability for maintenance and engineering teams. The gasket is designed to create a robust seal in high-pressure and high-temperature pipeline systems, effectively containing steam, hydrocarbons, and a wide range of chemical media.
Key Features
Conforms to the HG/T20610-2009 industry standard for dimensional interchangeability Engineered for a pressure rating of PN16, suitable for systems operating up to approximately 232 PSI Features a durable C-ring construction with an outer retaining ring for improved handling and alignment during installation Utilizes a flexible, high-purity graphite filler for superior conformability and sealing performance Constructed with inner and outer windings of corrosion-resistant 304 stainless steel (C2220)
Provides effective sealing across a broad temperature range
Suitable for both indoor and outdoor installation environments
Specifications
Standard: HG/T20610-2009 Nominal Pipe Size: 2 inches (DN50) Pressure Rating: PN16 (~232 PSI) Construction Type: C-Ring with Outer Guide Ring Material Construction: 304 Stainless Steel Windings / Graphite Filler / 304 Stainless Steel Windings Chemical Base: Graphite Sealant Type: Wound Gasket Indoor/Outdoor Use: Both Paintable: No Package Quantity: 25
Applications
Sealing flanged connections in chemical and petrochemical processing pipelines High-pressure steam lines and boiler feed systems
Refinery and hydrocarbon transfer piping General industrial process piping requiring a resilient, metallic seal Valve bonnets and pump connections
