Overview

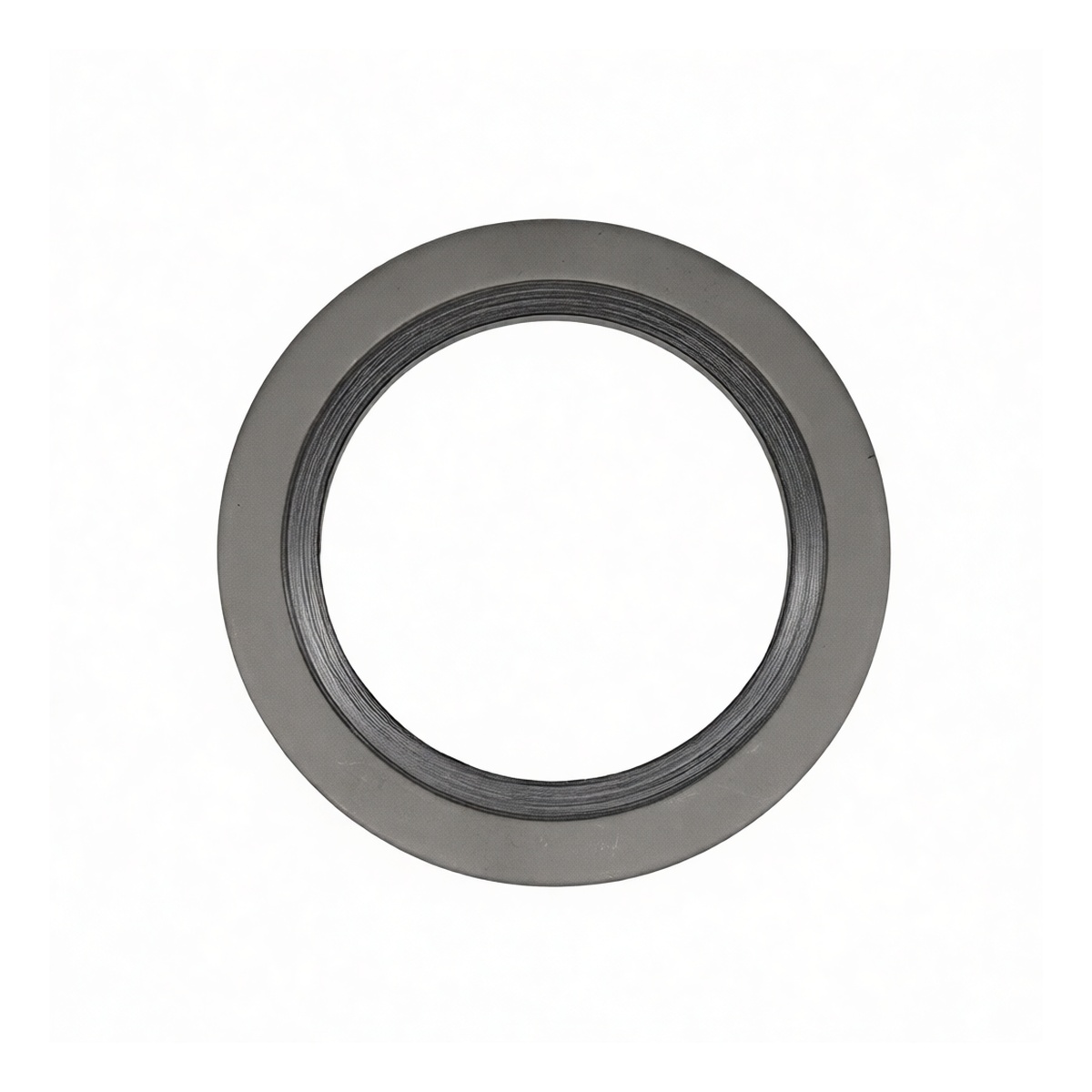

This 6-inch metal C-ring gasket is engineered for critical sealing in high-pressure and high-temperature industrial piping systems. It is constructed to the rigorous HG/T20610-2009 standard, ensuring dimensional accuracy and performance consistency for flange connections. The design incorporates a resilient graphite filler encased within a durable 304 stainless steel core and a reinforcing outer ring, creating a robust seal capable of withstanding extreme service conditions. It is suitable for sealing a wide range of media in demanding applications across multiple industries.
Key Features
C-ring construction with integral outer centering ring for easy flange alignment 304 stainless steel windings and outer ring for excellent corrosion resistance
Flexible graphite filler provides superior conformability and seal integrity Rated for high-pressure applications up to 25 bar (approximately 363 PSI)
Effective across a wide temperature range due to stable material properties
Suitable for use on both raised face and flat face flanges
Manufactured to precise industry standards for reliable interchangeability
Specifications
Nominal Pipe Size: 6 inch Pressure Class: PN25 (Approx. 363 PSI) Construction: Metal C-Ring with Outer Ring
Material
304 Stainless Steel & Graphite Standards: HG/T20610-2009 Chemical Base: Graphite Sealant Type: Gasket Indoor/Outdoor Use: Both Paintable: No Package Quantity: 12
Applications
High-pressure steam lines and boiler feed systems
Chemical and petrochemical processing pipelines
Oil and gas transmission and refinery piping
Power generation and thermal plant infrastructure
General industrial process piping for fluids and gases Shipboard and marine engineering piping systems
