Overview

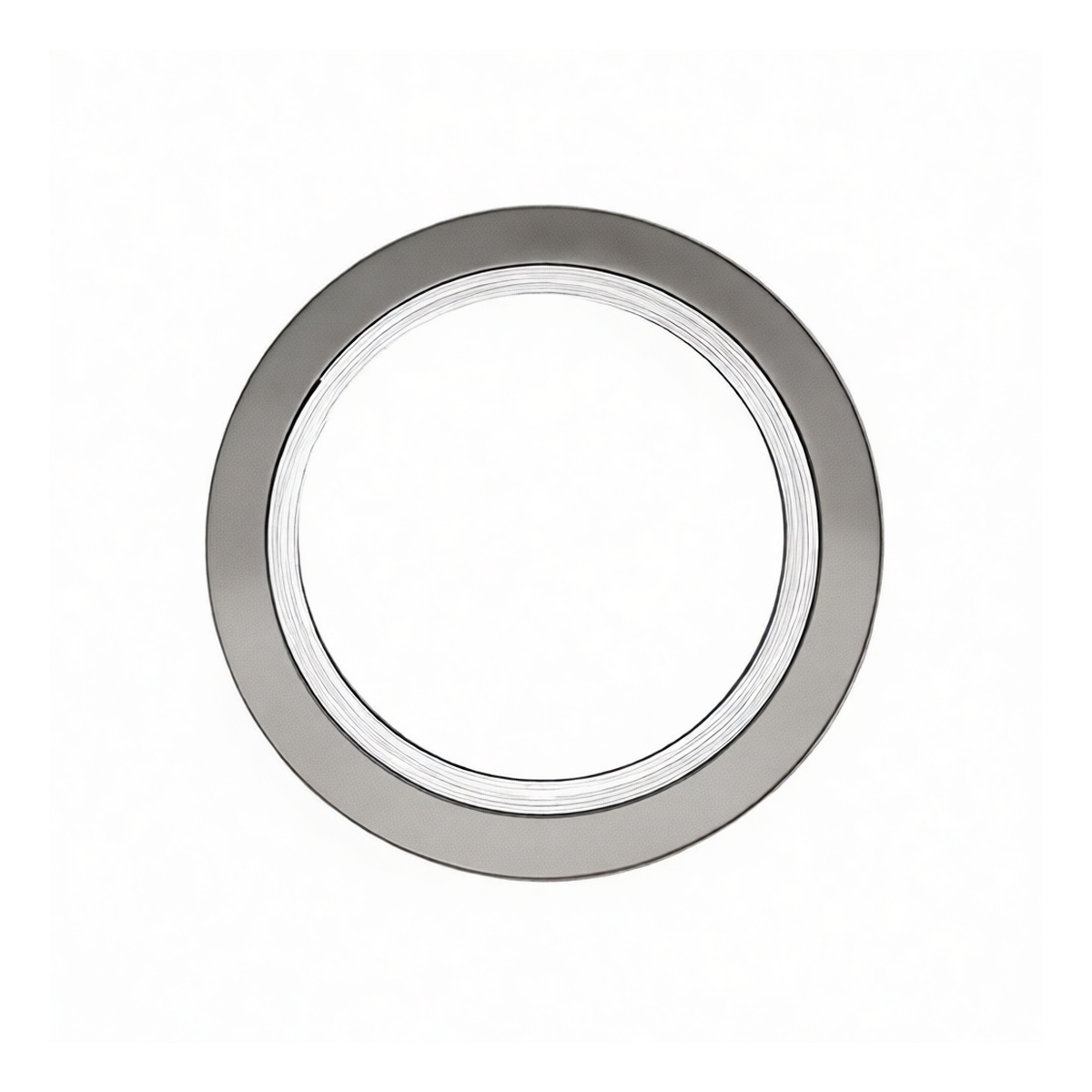

This 14-inch metal spiral wound gasket is engineered for reliable, high-integrity sealing in demanding industrial piping systems. Designed specifically for use with 150LB pressure class flanges, it provides a robust seal capable of withstanding significant mechanical stress and thermal cycling. The gasket's construction features a C-shaped winding pattern combined with an outer centering ring, ensuring precise installation alignment and enhanced resistance to crushing or blowout. It is manufactured to the stringent SH/T3407-2013 standard, guaranteeing dimensional consistency and performance reliability for critical process applications.
Key Features
C-shaped winding construction with an outer centering ring for stability Centering ring ensures perfect flange alignment and prevents over-compression Winding and filler combination provides a resilient, self-compensating seal
PTFE filler offers broad chemical resistance and low friction 304 stainless steel winding provides structural strength and corrosion resistance
Suitable for both indoor and outdoor service environments Conforms to industry-standard SH/T3407-2013 specifications
Specifications
Nominal Size: 14 inches Pressure Class: 150LB Construction: Spiral Wound, C-Shape with Outer Ring Winding Metal: 304 Stainless Steel Filler Material: Polytetrafluoroethylene (PTFE) Inner Ring Material: 304 Stainless Steel Outer Ring Material: Carbon Steel Standards: SH/T3407-2013 Chemical Base: Polytetrafluoroethylene Sealant Type: Gasket Indoor/Outdoor Use: Both Paintable: No Package Quantity: 2
Applications
Sealing high-pressure flanges in chemical and petrochemical processing
Connections in power generation and utility piping systems
Refinery and hydrocarbon processing equipment
Industrial water and steam lines requiring a resilient seal General industrial plant maintenance and pipeline construction
