Overview

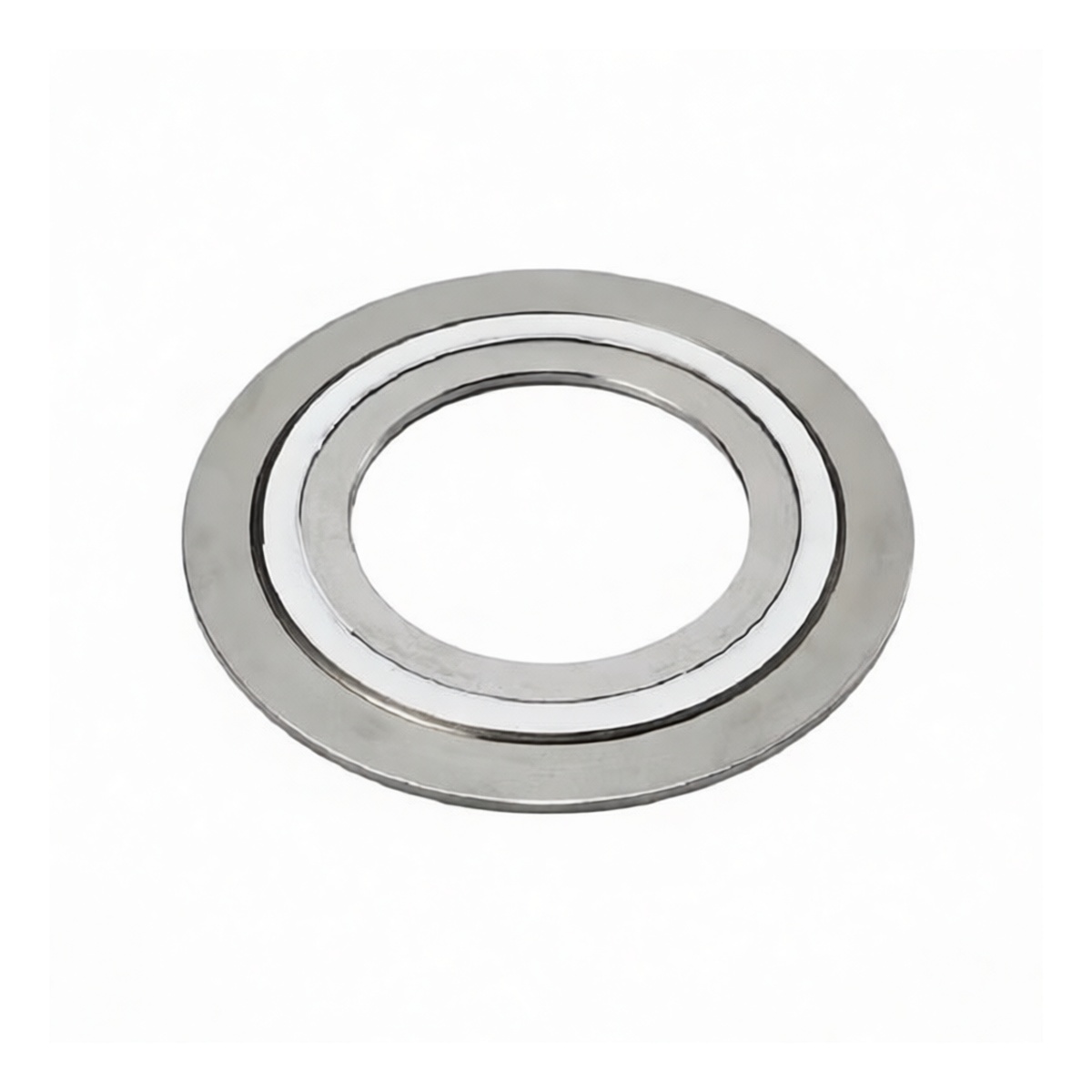

This 20-inch NPS metal spiral wound gasket is engineered for high-pressure sealing applications in demanding industrial piping systems. It is constructed to provide a reliable, leak-tight seal in flanged connections operating at pressures up to 150 PSI (PN20). The gasket's robust design combines the structural strength of metal with the sealing performance of a chemically resistant filler, making it suitable for a wide range of service conditions in both indoor and outdoor environments.
Key Features
Engineered for high-pressure service up to 150 PSI (PN20) Features durable 304 stainless steel inner and outer rings for structural integrity and seating PTFE (polytetrafluoroethylene) filler provides superior chemical resistance and conformability
Manufactured to recognized HG industry standards for quality assurance
Suitable for both indoor and outdoor installation and use
Specifications
Nominal Pipe Size: 20 inches Outside Diameter: 25.71 inches Inside Diameter: 19.69 inches Gasket Thickness: 0.177 inches Pressure Class: 150 PSI (PN20) Construction: Spiral Wound Metal Windings: 304 Stainless Steel Filler Material: Polytetrafluoroethylene (PTFE) Inner Ring: 304 Stainless Steel Outer Ring: 304 Stainless Steel Standards: HG Sealant Type: Gasket Indoor/Outdoor Use: Both Paintable: No Unit Pack Size: 1 piece
Applications
Sealing flanged connections in chemical and petrochemical processing pipelines High-pressure fluid transfer systems in power generation facilities
Industrial water and wastewater treatment plant piping General process piping in manufacturing and industrial plants requiring chemical resistance
