Overview

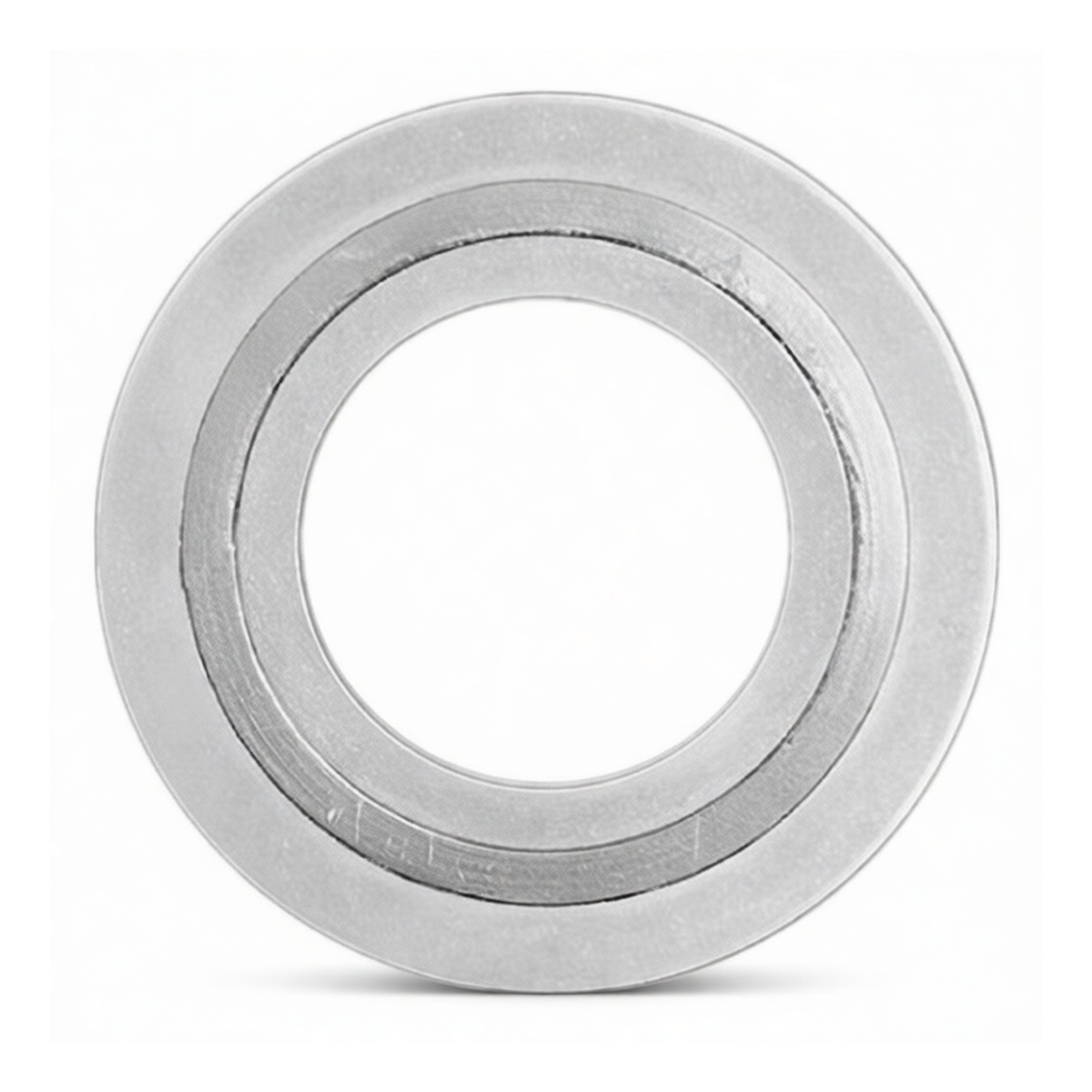

This 5-inch metal spiral wound gasket is engineered for reliable, long-term sealing in demanding industrial piping systems. It is specifically designed for standard flange connections rated to PN16, providing a robust seal against leaks in applications involving high pressure, elevated temperature, and aggressive media. The precision-wound construction ensures consistent performance and durability, making it a critical component for maintenance, repair, and new assembly operations across various process industries.
Key Features
Engineered for flange connections rated to PN16 pressure class
Features a graphite filler for superior chemical resistance and thermal stability Effective sealing in continuous operating temperatures up to 900°F
Suitable for both indoor and outdoor service applications Precision-wound metal spiral design ensures a resilient, conforming seal
Meets relevant industry standards for material and construction quality
Specifications
Nominal Size: 5 inches Pressure Rating: PN16 Outer Diameter: Approximately 5.91 inches Inner Diameter: Approximately 4.92 inches Filler Material: Graphite Standards: Meets Industry Standards Chemical Base: Graphite Sealant Type: Gasket Indoor/Outdoor Use: Both Paintable: No Pack Quantity: 10 gaskets per package
Applications
Sealing standard pipe flanges in chemical and petrochemical processing High-temperature steam lines and power generation systems Oil and gas pipelines, valves, and pump connections Heating, ventilation, and industrial refrigeration systems General industrial plumbing and fluid handling infrastructure
