Overview

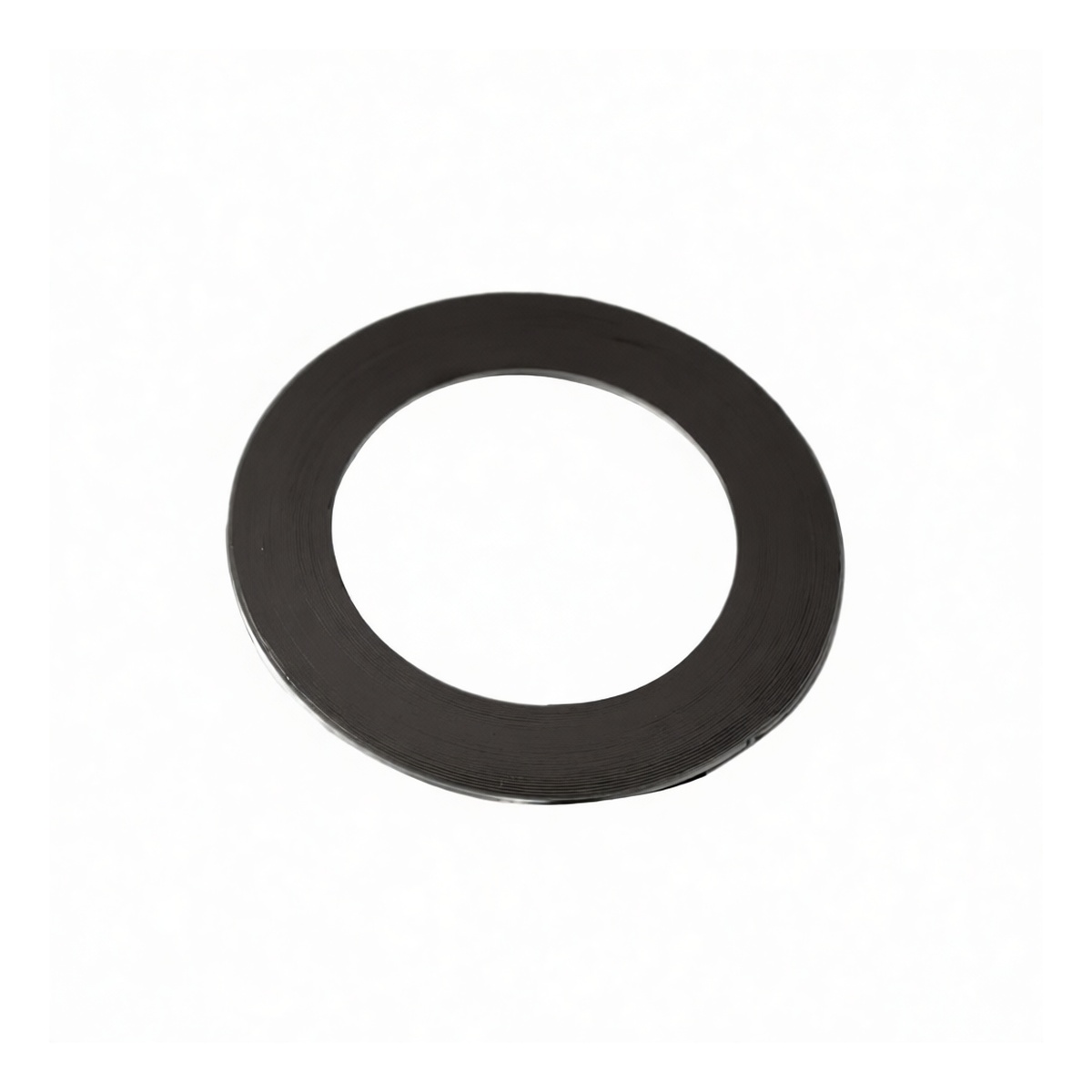

The Metal Spiral Wound Gasket is a precision-engineered sealing solution designed for demanding industrial flange connections. Its robust construction combines the strength of metal with the sealing performance of a flexible filler, creating a reliable barrier against leaks in piping systems, pressure vessels, and heat exchangers. This gasket is manufactured to common industry dimensional and material specifications, ensuring compatibility and performance in a wide range of standard applications.
Key Features
Spiral wound design for superior resilience and recovery under bolt load 304 stainless steel outer winding provides structural integrity and corrosion resistance
Flexible graphite filler creates an effective seal across a wide temperature range
Suitable for thermal cycling and variable pressure conditions
Engineered for both indoor and outdoor service environments Pre-formed shape ensures correct fit and easy installation on standard flanges
Specifications
Type: Spiral Wound Gasket Outer Diameter: 10.31 inches Inner Diameter: 8.66 inches Thickness: 0.18 inches Metal Wind Material: 304 Stainless Steel Filler Material: Flexible Graphite Standards: Meets Common Industry Standards Chemical Base: Graphite Sealant Type: Gasket Indoor/Outdoor Use: Both Paintable: No Package Quantity: 12
Applications
Sealing standard pipe flanges in chemical processing Connections on pumps, valves, and compressors
Boiler and heat exchanger access points
General service in oil and gas pipelines
Utility and power generation plant piping Wherever a resilient, metal-reinforced seal is required for flat face or raised face flanges
