Overview

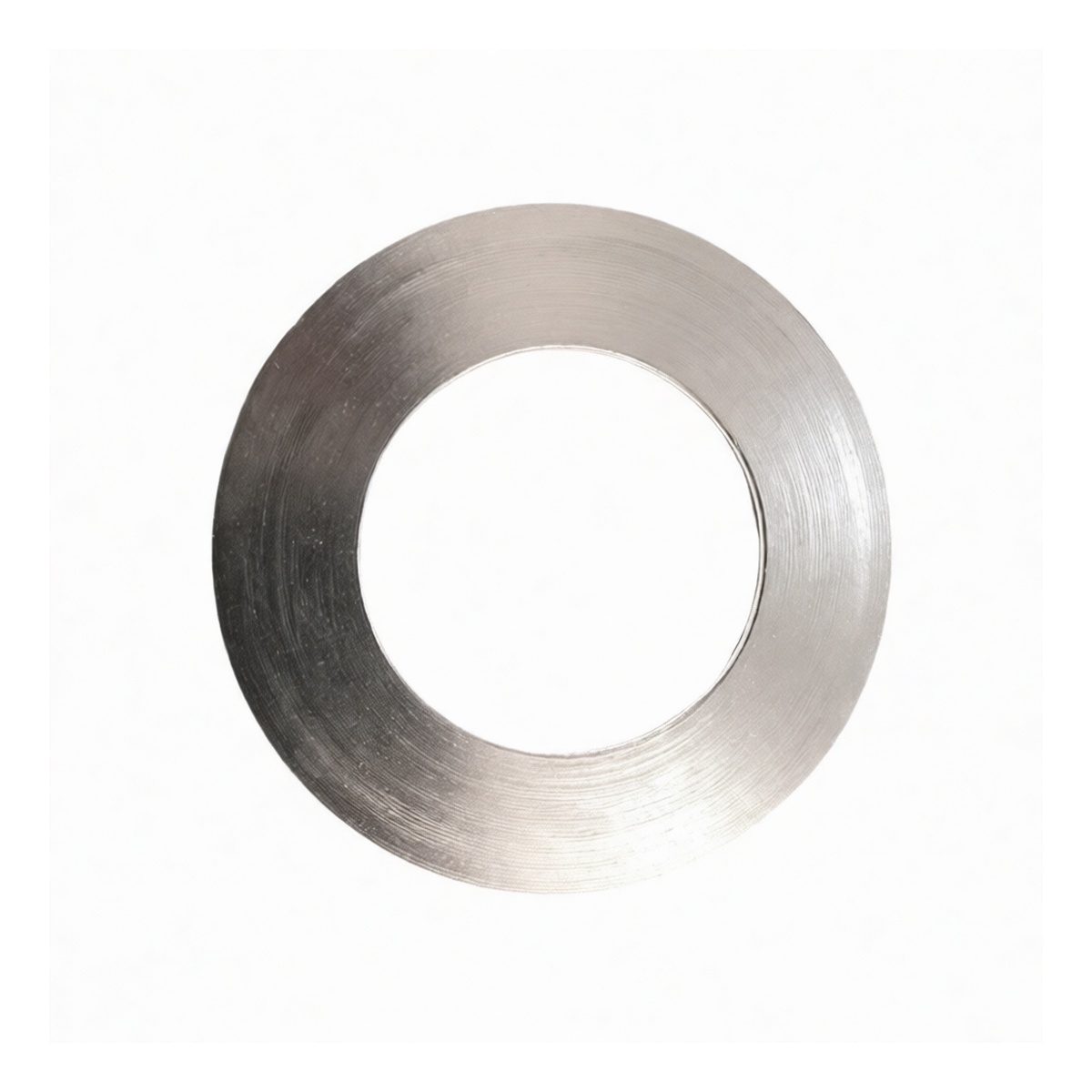

This non-standard 14-inch metal wound gasket is engineered for demanding high-pressure and high-temperature sealing applications in industrial piping and vessel systems. It is specifically designed for flanged connections where standard sizing is insufficient, providing a custom-engineered sealing solution. The robust spiral-wound construction ensures a reliable, leak-tight seal capable of withstanding significant mechanical stress and thermal cycling, making it a critical component for maintaining system integrity and operational safety.
Key Features
Engineered for high-pressure service up to 370 PSI (PN25)
Suitable for extreme temperature applications due to graphite filler Spiral-wound metal construction provides excellent resilience and recovery Non-standard sizing accommodates custom or specialized flange dimensions
Robust sealing performance across a wide range of chemical services
Designed for both indoor and outdoor installation environments
Specifications
Nominal Size: 14 inches (Non-Standard DN350) Inner Diameter: 14.8 inches Outer Diameter: 18.0 inches Thickness: 0.18 inches Pressure Rating: 370 PSI (PN25) Filler Material: Resilient Graphite Standards: Meets Industry Standards for Spiral Wound Gaskets Sealant Type: Industrial Gasket Chemical Base: Graphite Indoor/Outdoor Use: Suitable for Both Paintable: No Package Quantity: 6 Gaskets
Applications
Sealing high-pressure flanges in chemical and petrochemical processing
Power generation and steam system connections
Oil and gas pipeline and refinery applications Heating, ventilation, and industrial boiler systems Compressor, pump, and valve flanges in demanding service General industrial maintenance for non-standard piping connections
