Overview

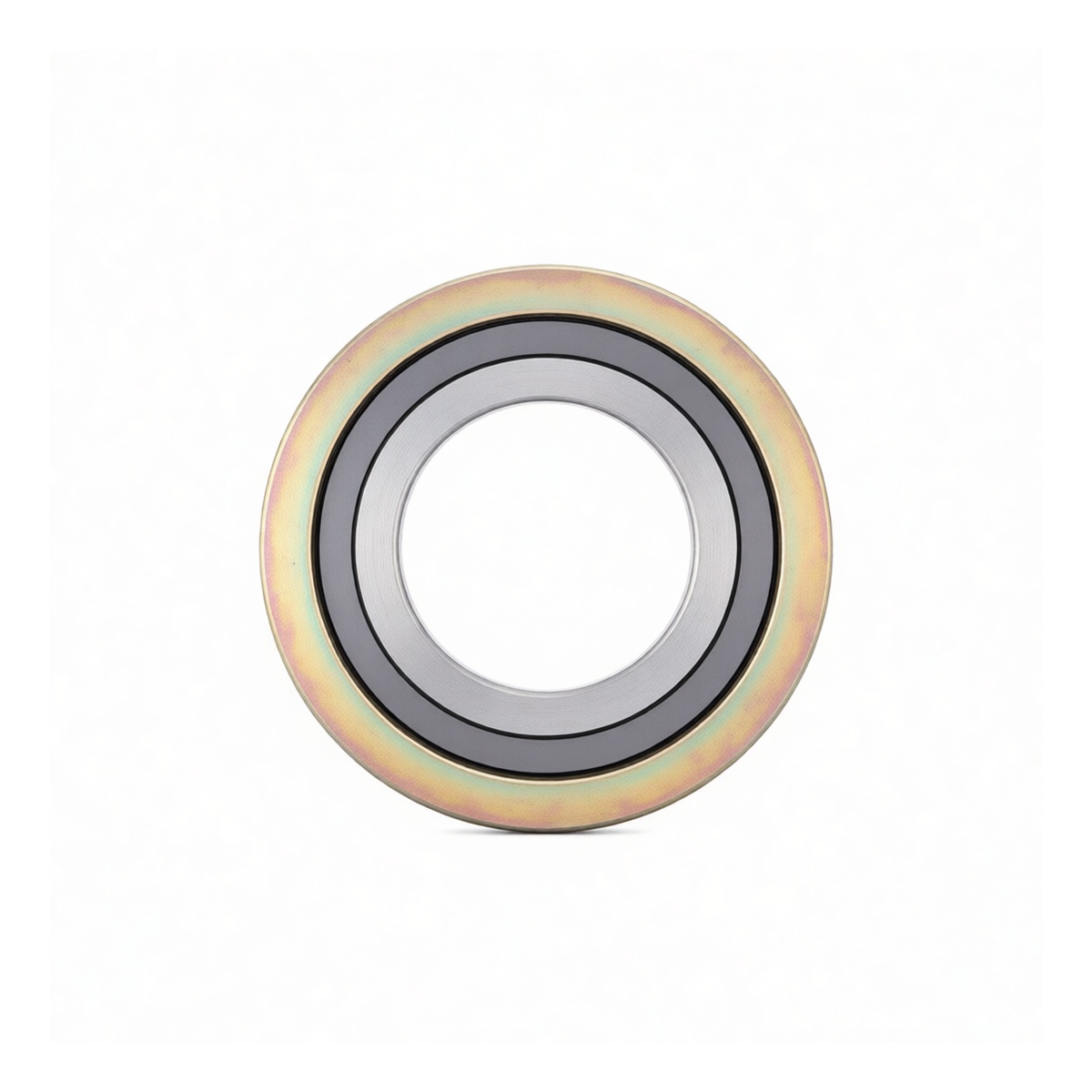

This industrial-grade spiral wound gasket is engineered for high-integrity sealing in demanding piping and pressure vessel applications. It is specifically designed to create a reliable, leak-tight seal between flanges under significant pressure and thermal cycling. The gasket's robust construction ensures long-term performance in critical service environments common in chemical processing, oil and gas, power generation, and heavy manufacturing.
Key Features
Engineered for high-pressure service up to 63 PSI
Constructed with alternating layers of metal and resilient filler for superior sealing
Features inner and outer reinforcing rings for added stability and compression control Corrosion-resistant 304 stainless steel winding and outer rings
Flexible graphite filler provides excellent thermal conductivity and chemical resistance
Conforms to established industry standards for dimensional consistency and performance
Specifications
Type: Spiral Wound Gasket with Inner and Outer Rings Nominal Size: 1/2 Inch (DN10) Pressure Rating: 63 PSI Construction: Carbon Steel Outer Rings, 304 Stainless Steel Windings Filler Material: Flexible Graphite Standards: HG/T20610-2009 Reinforcement: D-Type (With Inner and Outer Rings) Package Quantity: 100
Applications
Sealing high-pressure flange connections in process piping
Boiler and pressure vessel manways and connections
Pump and valve flanges in chemical service
Heat exchanger and condenser flanges
Utility and steam line connections Refinery and petrochemical plant piping systems
