Overview

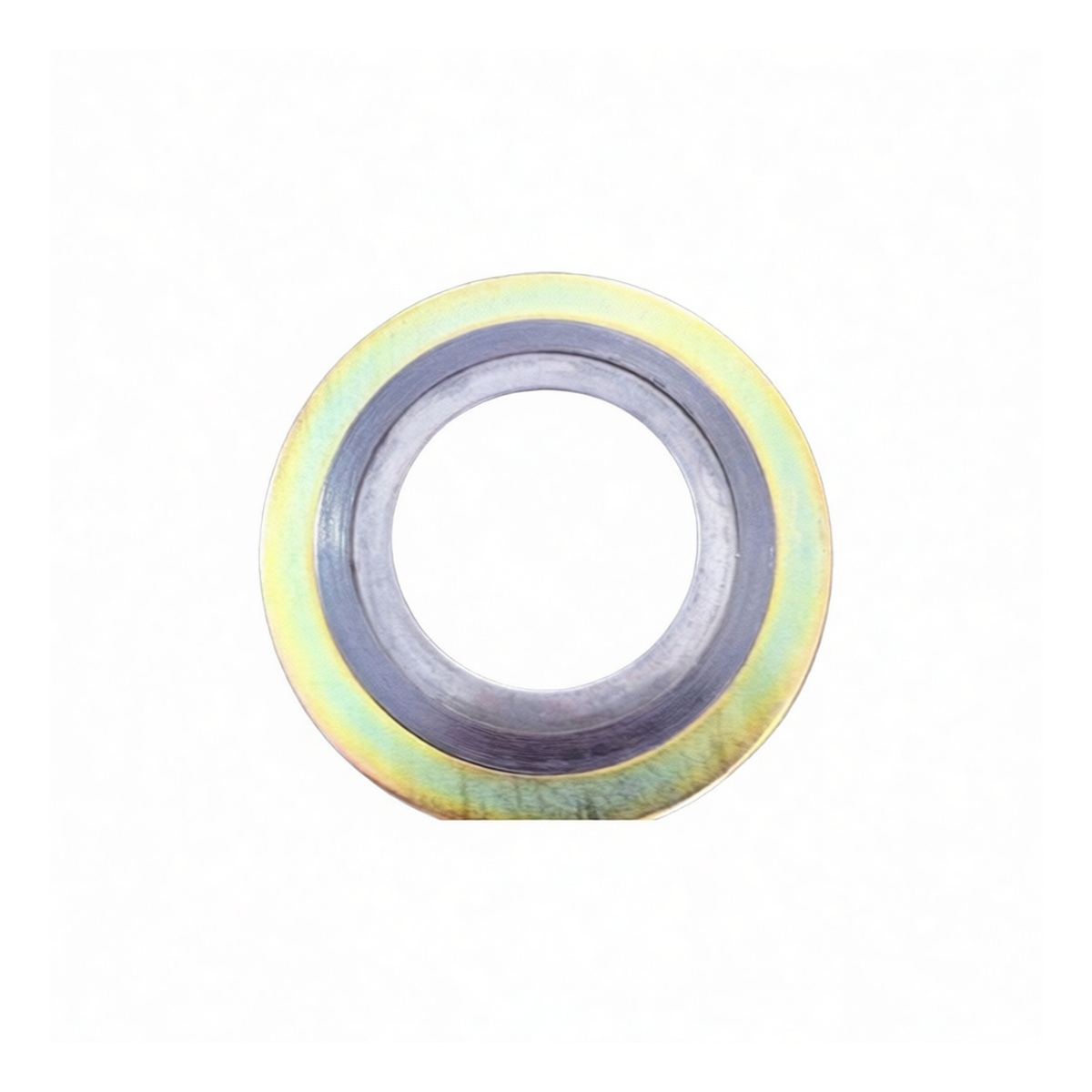

This 20-inch spiral wound gasket is engineered for critical sealing in high-pressure, high-temperature industrial piping systems. Designed to meet rigorous HG standards, it provides a robust and reliable seal for flanged connections operating up to 360 PSI. The construction combines a resilient graphite filler with durable 304 stainless steel windings, creating a seal that accommodates flange rotation and surface irregularities. Its D-shape configuration with integral inner and outer rings ensures precise alignment and prevents gasket blow-out or over-compression during installation, making it a dependable choice for demanding process environments.
Key Features
Engineered for high-pressure service up to 360 PSI D-shape design with inner and outer reinforcing rings for stability and crush resistance
Graphite filler provides excellent thermal conductivity and chemical resistance 304 stainless steel windings offer superior strength and corrosion resistance
Manufactured to precise HG industry standards for consistent quality and fit
Suitable for both indoor and outdoor installation in harsh conditions
Specifications
Standards: HG Chemical Base: Graphite Sealant Type: Spiral Wound Gasket Nominal Pipe Size: 20 Inch Pressure Rating: 360 PSI Construction: 304 Stainless Steel Windings with Graphite Filler Configuration: D-Type with Inner and Outer Rings Indoor/Outdoor Use: Both Paintable: No Package Quantity: 2
Applications
High-pressure process piping in chemical and petrochemical plants
Power generation and utility steam systems
Oil and gas pipeline transmission and refining
Heavy industrial water and effluent treatment systems Any flanged connection requiring a resilient, high-performance seal under variable temperatures and pressures
