Overview

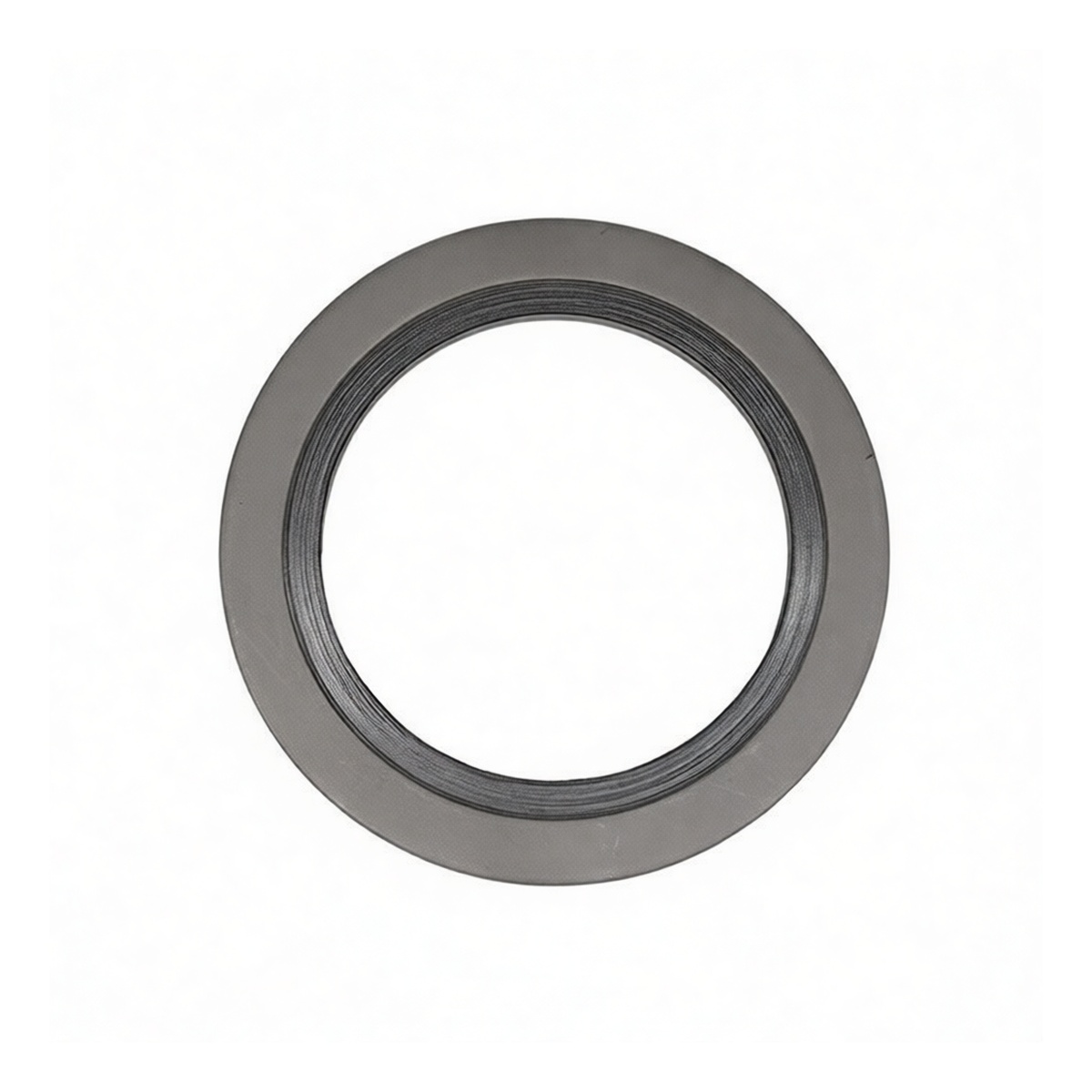

This 24-inch spiral wound gasket is engineered for critical sealing applications in high-pressure piping and vessel flanges. Its robust construction is designed to withstand demanding thermal cycling and a broad spectrum of chemical services, ensuring long-term reliability and leak prevention in industrial systems. The inclusion of an outer centering ring provides stability during installation, preventing misalignment and ensuring a proper seal. It is suitable for use in both controlled indoor environments and challenging outdoor installations.
Key Features
Engineered for high-pressure service up to approximately 580 PSI C-shaped winding configuration with an outer centering ring for stability Alternating plies of 316L stainless steel and flexible graphite filler
Excellent resilience under bolt load and thermal cycling
Conforms to recognized industry dimensional and material standards
Suitable for a wide range of chemical media and temperatures
Specifications
Nominal Pipe Size: 24 inches (DN600) Pressure Rating: PN40 (Approximately 580 PSI) Construction: Spiral Wound, C-Shape with Outer Ring Winding Material: 316L Stainless Steel Filler Material: Flexible Graphite Outer Ring Material: 316L Stainless Steel Standards: Meets Industry Standards Sealant Type: Spiral Wound Gasket Chemical Base: Graphite Indoor/Outdoor Use: Both Paintable: No Unit: Sold individually
Applications
High-pressure process piping in chemical and petrochemical plants
Power generation and utility systems
Oil and gas transmission and refining
Industrial heating and cooling systems Flange connections on reactors, heat exchangers, and pressure vessels
