Overview

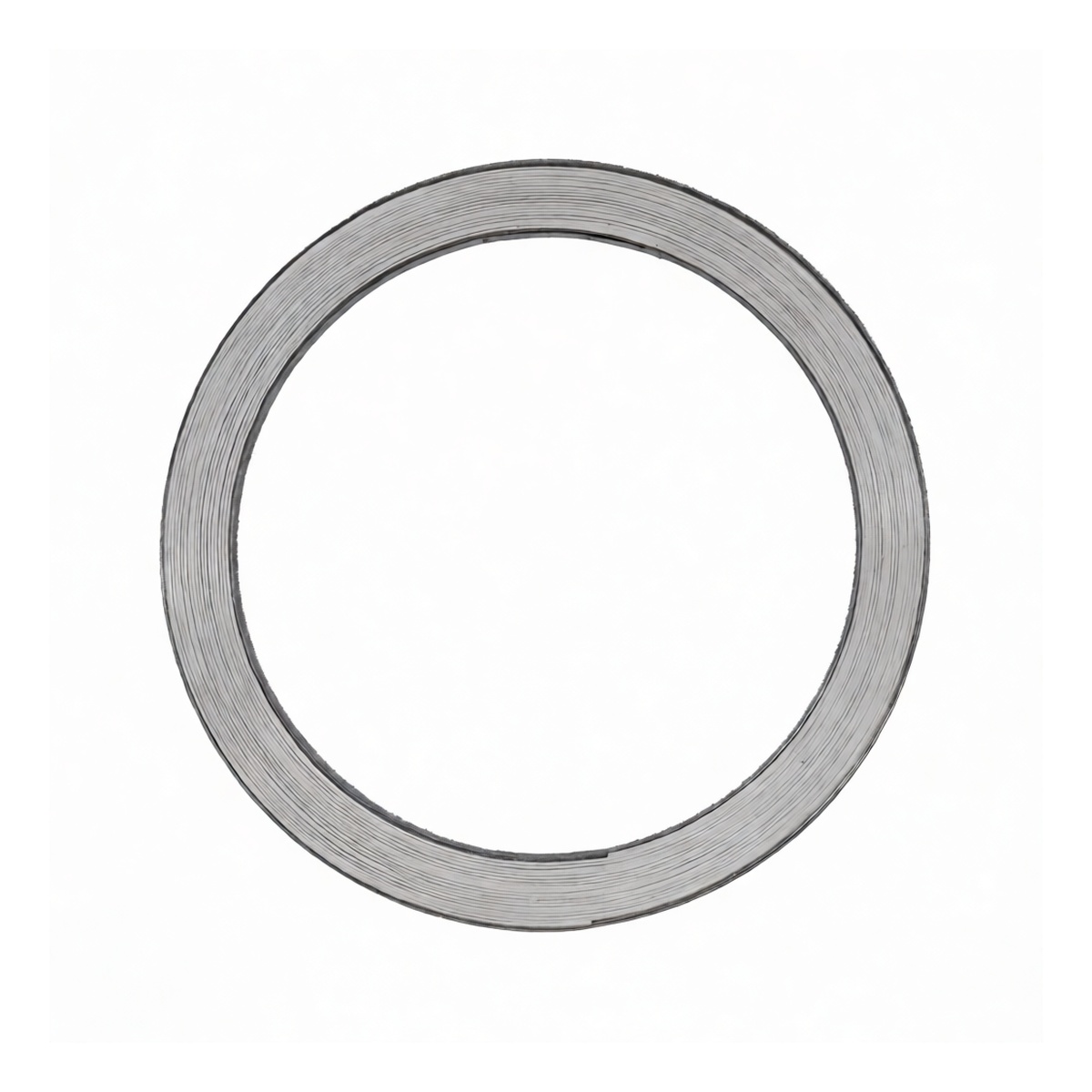

This 24-inch spiral wound gasket is engineered for high-pressure flange connections in demanding industrial applications. It is constructed with alternating layers of a 304 stainless steel winding and a polytetrafluoroethylene (PTFE) filler, creating a resilient and robust seal. Manufactured to stringent industry standards, this gasket is designed to withstand significant mechanical stress and thermal cycling, providing long-term reliability in critical piping systems. Its primary function is to prevent leakage of fluids and gases in bolted flange joints, ensuring operational safety and environmental compliance.
Key Features
Engineered for high-pressure service up to 300 LB flange ratings Constructed with corrosion-resistant 304 stainless steel winding
Features a PTFE filler for broad chemical compatibility and low friction
Manufactured to precise HG industry standards for dimensional consistency
Provides a resilient seal that accommodates flange face imperfections
Suitable for applications involving thermal cycling and vibration
Specifications
Nominal Size: 24 inches Inside Diameter: Approximately 25.24 inches Outside Diameter: Approximately 27.25 inches Cross-Section Thickness: Approximately 0.18 inches Winding Material: 304 Stainless Steel Filler Material: Polytetrafluoroethylene (PTFE) Pressure Rating: 300 LB Applicable Standard: HG Indoor/Outdoor Use: Both Paintable: No Unit Quantity: 1
Applications
Sealing high-pressure flanges in chemical and petrochemical processing plants
Connections in power generation and utility piping systems
Use in oil and gas transmission and refining operations Applications involving corrosive media such as acids, caustics, and solvents General industrial piping for steam, water, and other process fluids
