Overview

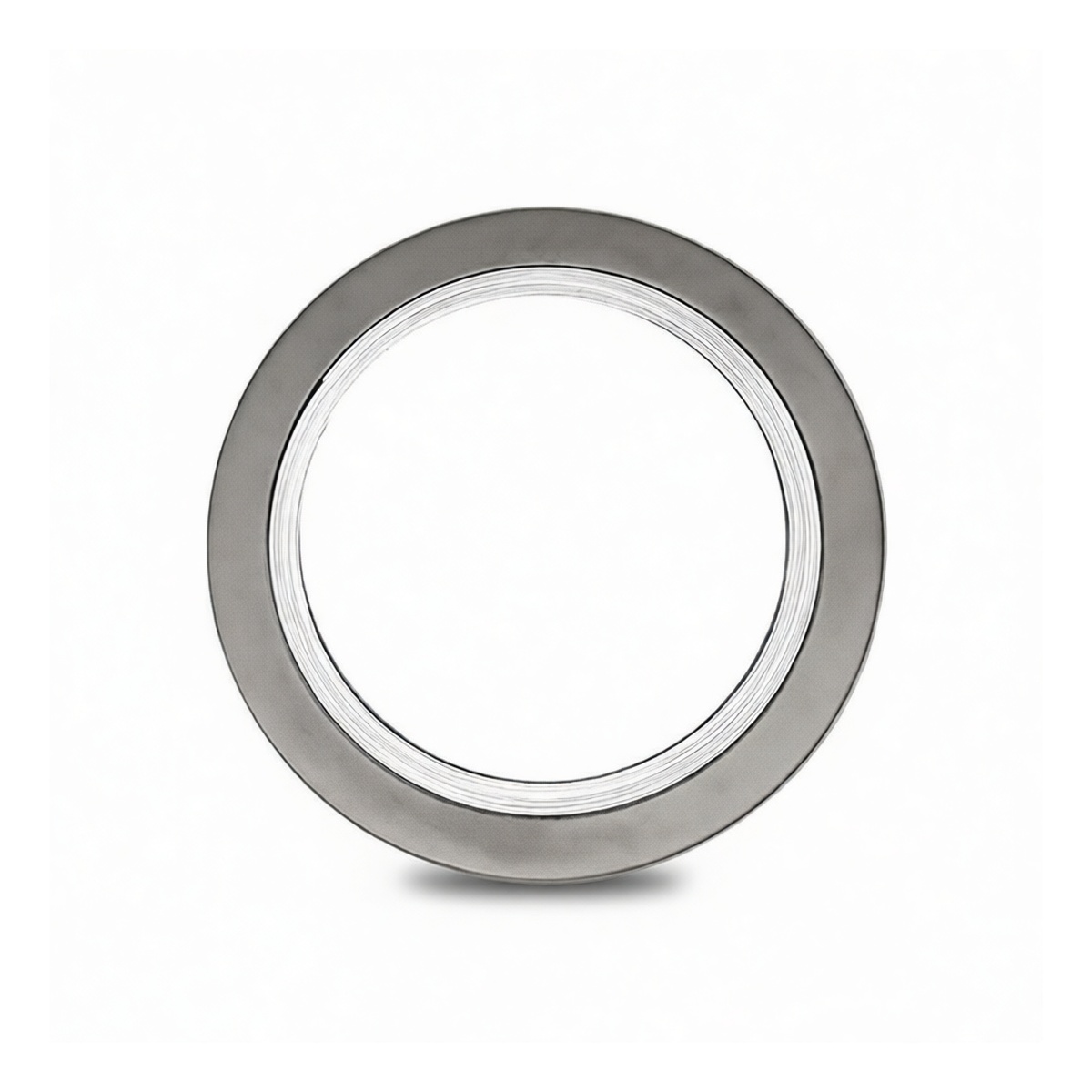

This spiral wound gasket is engineered for demanding industrial sealing applications in piping and pressure vessel systems. It is constructed to exacting SH/T3407-2013 standards, ensuring reliable performance in critical service. The gasket is designed for use on 2-inch nominal diameter flanges with a pressure class rating of 300 PSI. Its robust construction provides a secure, leak-free seal capable of withstanding thermal cycling, pressure fluctuations, and challenging chemical environments.
Key Features
Engineered with a 304 stainless steel winding for structural integrity and spring-back Filled with a polytetrafluoroethylene (PTFE) layer for broad chemical resistance
Includes integrated outer and inner containment rings for enhanced stability Rings control bolt load distribution and prevent gasket over-compression Suitable for both indoor and outdoor installation and long-term service
Provides a conformable seal on standard flange faces
Specifications
Standard: SH/T3407-2013 Sealant Type: Spiral Wound Gasket Construction: 304 Stainless Steel / PTFE Filler / 304 Stainless Steel Nominal Pipe Size: 2 inches Pressure Class: 300 PSI Inner Ring Material: 304 Stainless Steel Outer Ring Material: 304 Stainless Steel Filler Material: Polytetrafluoroethylene (PTFE) Indoor/Outdoor Use: Both Paintable: No Package Quantity: 20 gaskets
Applications
Sealing flanges in chemical and petrochemical processing pipelines
General service in refineries and power generation facilities Compatible systems handling oils, solvents, and many corrosive media Use on heat exchangers, pumps, valves, and vessel manways Applications requiring a resilient, metal-reinforced seal
