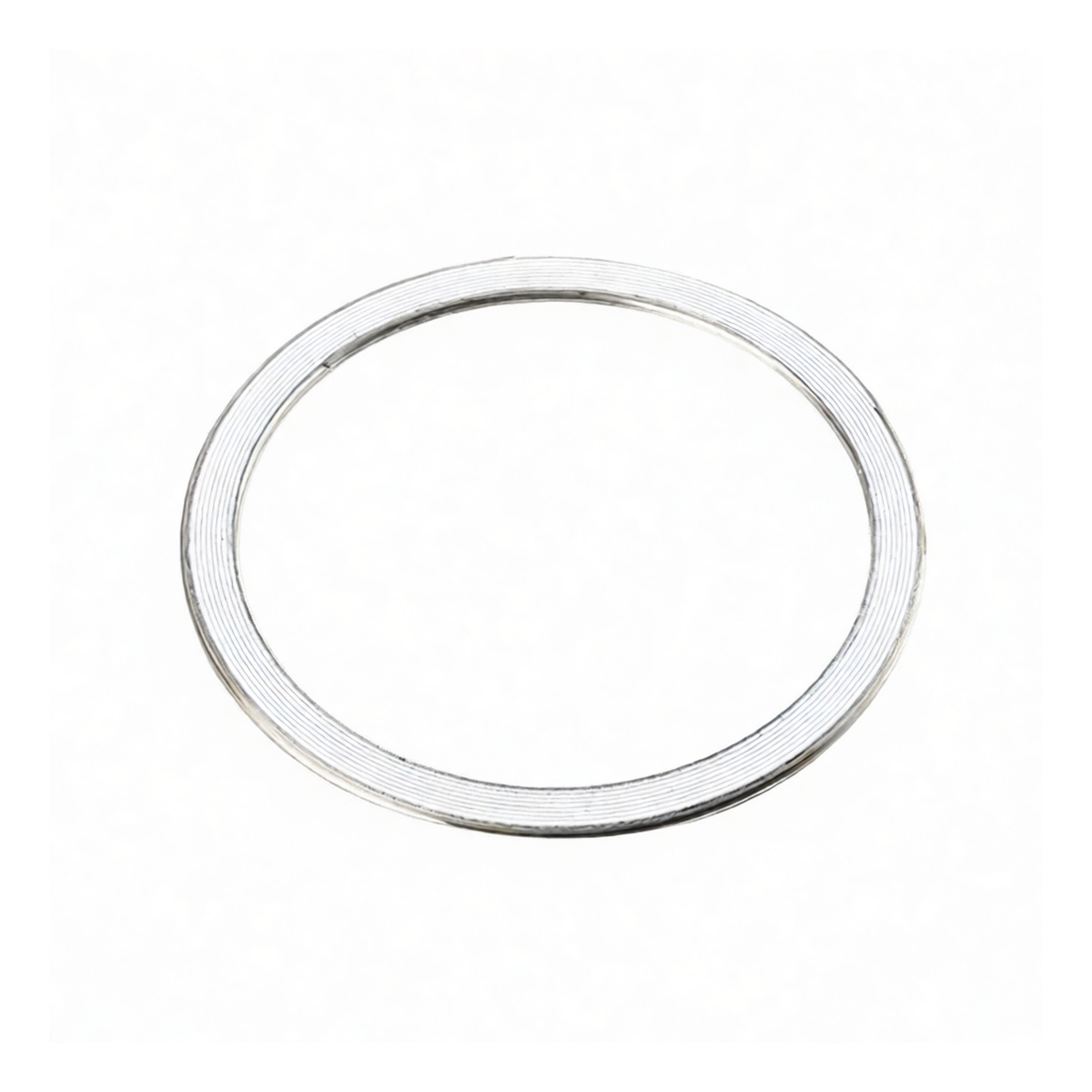

Spiral Wound Gasket, 316/Graphite, 14.5" x 14.3" x 0.13", DN300, Pkg Qty 2
Overview
This spiral wound gasket is engineered for high-pressure flange connections in industrial piping systems. It features a 316 stainless steel winding for structural integrity and a flexible graphite filler providing a reliable seal across a wide temperature range. The gasket measures 14.5 inches by 14.3 inches with a 0.13-inch thickness, conforming to DN300 and pressure ratings from PN16 to PN160. Its construction ensures effective sealing for demanding indoor applications involving steam, oil, and gas services.
Key Features
V-shaped spiral winding of 316 stainless steel for mechanical strength and resilience
Flexible graphite filler for superior conformability and thermal conductivity Designed for a broad pressure range from PN16 to PN160 Suitable for high-temperature service applications
Manufactured to recognized industry standards for dimensional consistency
Indoor use specification for controlled environment applications
Specifications
Sealant Type: Spiral Wound Gasket Nominal Size: DN300 Outside Diameter: 14.5 inches Inside Diameter: 14.3 inches Thickness: 0.13 inches Winding Material: 316 Stainless Steel Filler Material: Flexible Graphite Pressure Ratings: PN16, PN25, PN40, PN63, PN100, PN160 Standards: HG Chemical Base: Graphite Indoor/Outdoor Use: Indoor Paintable: No Package Quantity: 2
Applications
High-pressure steam lines and boiler feed systems Process piping for oil, gas, and petrochemical plants
Heat exchanger and valve flange connections General industrial piping requiring a robust, temperature-resistant seal Utility and power generation piping systems
