Overview

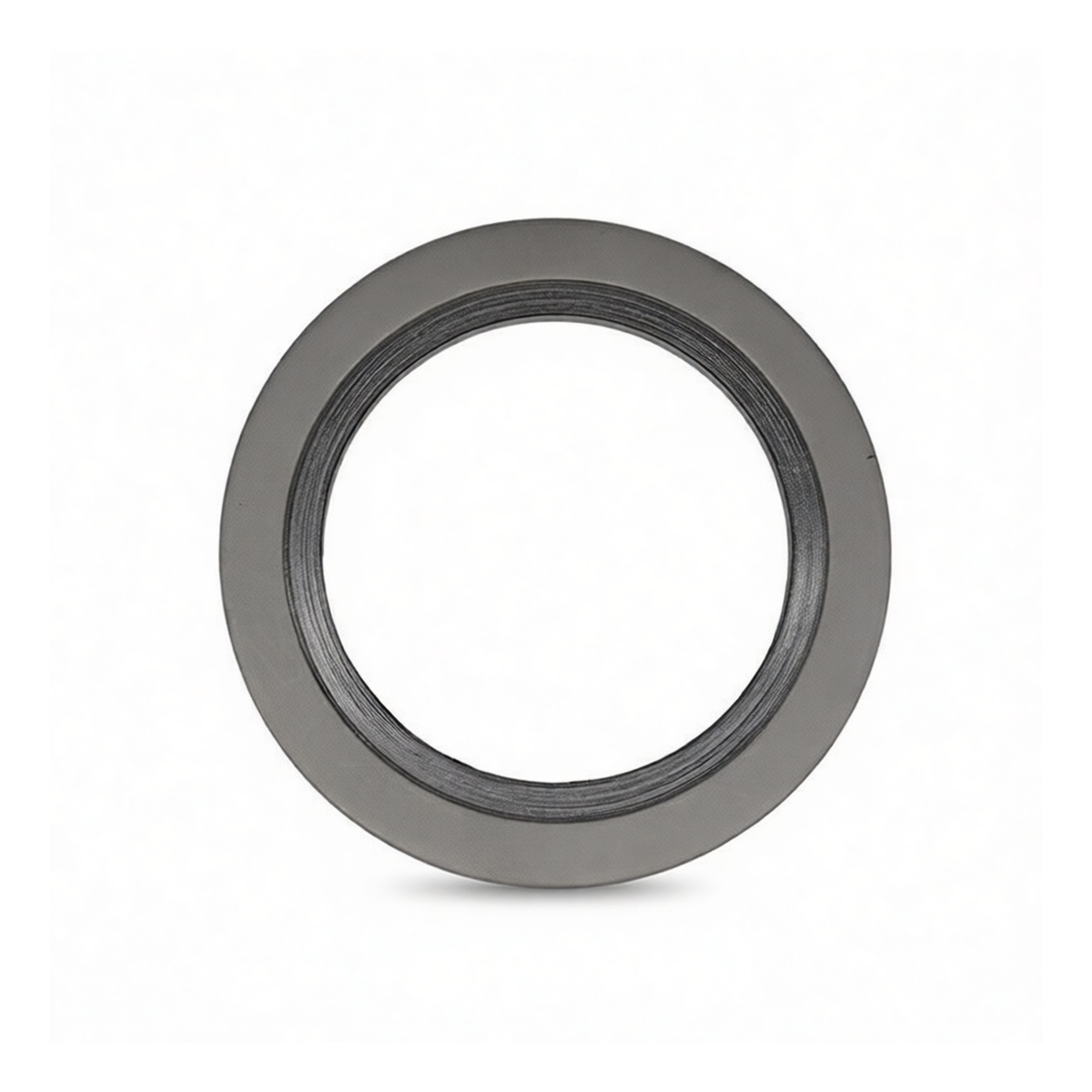

This industrial-grade spiral wound gasket is engineered for high-integrity sealing in demanding high-pressure and high-temperature piping systems. It is constructed to meet stringent HG standards, ensuring reliable performance in critical applications. The gasket is designed for flanges with a nominal pipe size of approximately 3/4 inch (DN32) and a 900-pound pressure class, providing a robust seal for challenging service conditions.
Key Features
Engineered for high-pressure service up to 900LB Withstands extreme temperatures up to 1500°F Features a centering outer ring for precise, easy installation Winding and rings constructed from corrosion-resistant 316L stainless steel
Flexible graphite filler provides superior conformability and seal
Suitable for both indoor and outdoor applications
Specifications
Standard: HG Sealant Type: Spiral Wound Gasket Metal Material: 316L Stainless Steel Filler Material: Flexible Graphite Nominal Size: 3/4 inch (DN32) Pressure Class: 900LB Construction: Style C with Outer Centering Ring Temperature Rating: Up to 1500°F Paintable: No Package Quantity: 24
Applications
High-pressure process piping in chemical and petrochemical plants
Refinery and power generation flange connections Steam service and high-temperature fluid handling General industrial piping systems requiring reliable, long-term sealing Maintenance and repair of valves, pumps, and heat exchangers
