Overview

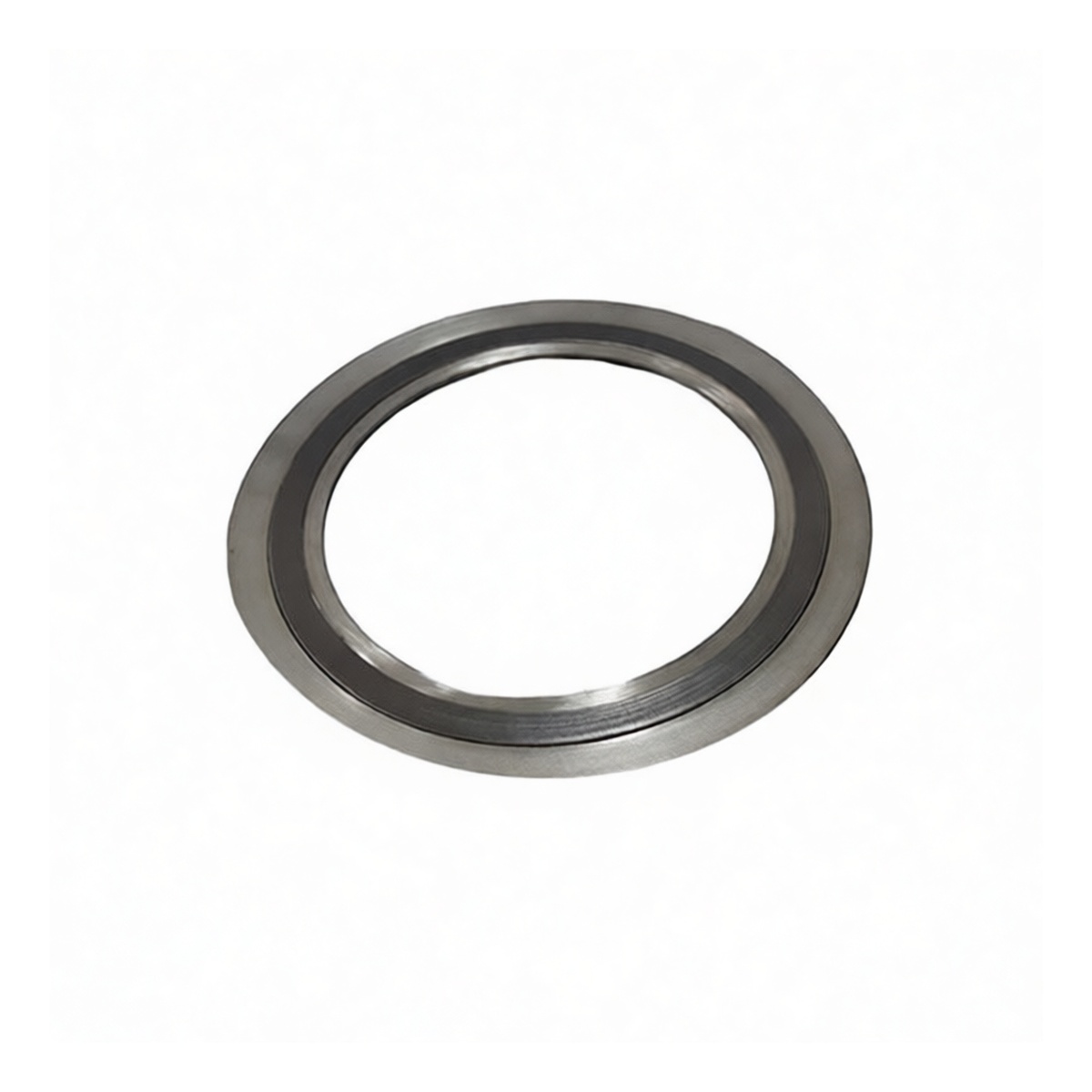

This 5-inch spiral wound gasket is engineered for high-pressure industrial piping systems. It is designed to create a robust, leak-tight seal between flanges in demanding process environments. The gasket construction combines the resilience of metal with the conformability of a soft filler, making it suitable for a wide range of pressures, temperatures, and media. It is manufactured to recognized industry standards for dimensional consistency and performance reliability.
Key Features
Engineered for high-pressure service up to 232 PSI (PN16) Constructed with corrosion-resistant 316L stainless steel windings
Features a flexible graphite filler for superior sealing conformity Includes integral inner and outer 316L stainless steel containment rings
The inner ring prevents gasket inward buckling and media erosion
The outer ring provides installation guidance and enhances blowout resistance
Suitable for both indoor and outdoor applications in controlled environments
Specifications
Standard: HG/T20610-2009 Nominal Pipe Size: 5 inches (DN125) Pressure Rating: 232 PSI (PN16) Gasket Type: Spiral Wound with Inner and Outer Rings Winding Material: 316L Stainless Steel Filler Material: Flexible Graphite Ring Material: 316L Stainless Steel Color: Metallic Paintable: No Pack Quantity: 6
Applications
This gasket is ideal for sealing flanged connections in chemical and petrochemical processing. It is commonly used in oil and gas production and refining pipelines. Suitable for power generation systems, including steam and utility lines. Applicable in pharmaceutical and food processing where 316L stainless steel is required. Effective for a broad range of industrial fluids, including water, steam, oils, and many chemicals.
