Overview

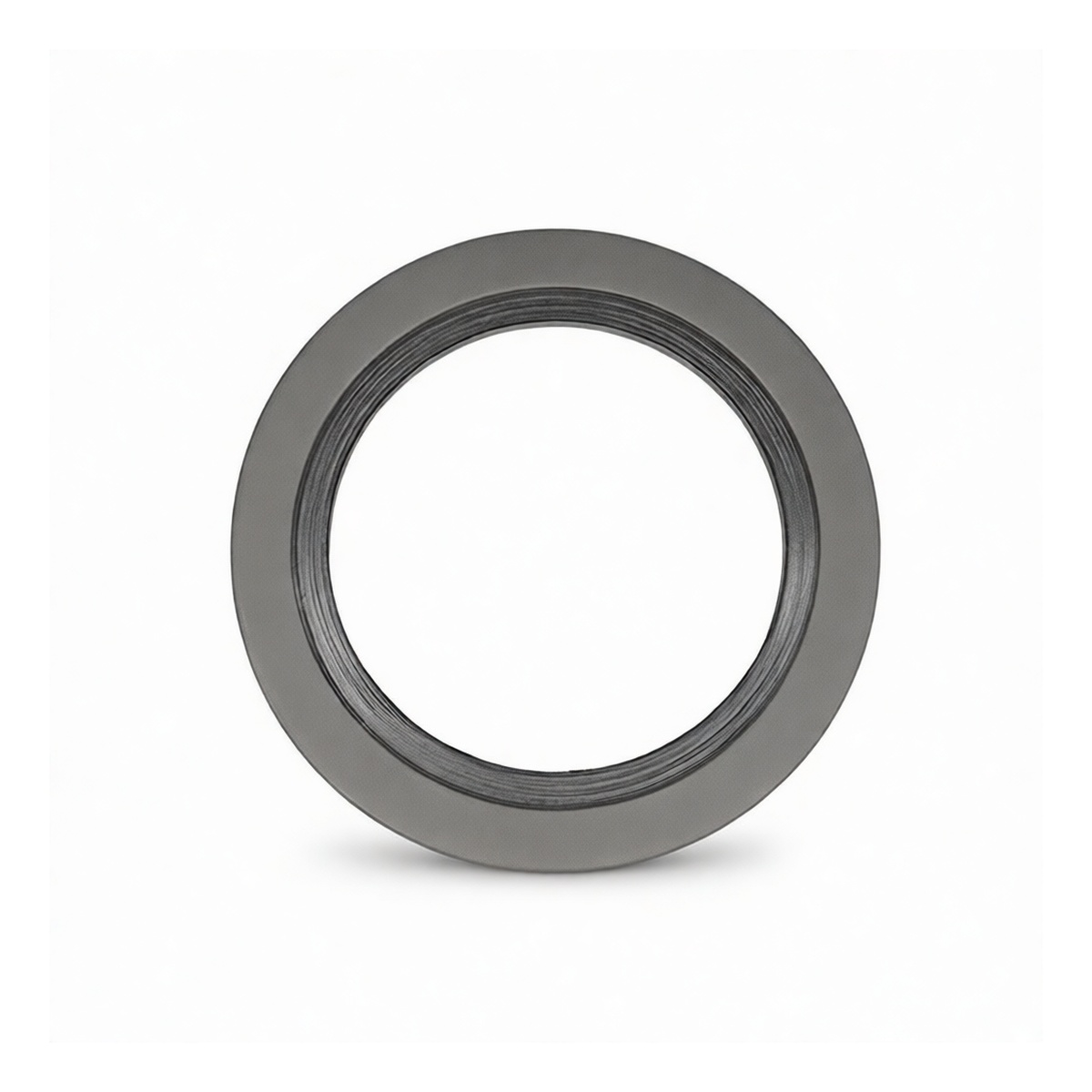

This industrial-grade spiral wound gasket is engineered for high-pressure sealing in critical piping and flange connections. Designed to meet rigorous SH standards, it provides a reliable, resilient seal capable of withstanding demanding thermal and mechanical stress. The specialized C2220 construction with a graphite filler ensures long-term performance and leak prevention in both standard and severe service applications.
Key Features
Robust C2220 configuration with 304 stainless steel windings High-density graphite filler for superior thermal conductivity and resilience Engineered for pressure classes up to 300LB
Suitable for a wide operating temperature range
Provides excellent seal integrity under variable bolt loads and system vibrations
Designed for both indoor and outdoor service environments
Specifications
Standard: SH Sealant Type: Spiral Wound Gasket Nominal Size: 4 inches Pressure Rating: 300LB Metal Windings Material: 304 Stainless Steel Filler Material: Graphite Outer Ring Material: 304 Stainless Steel Configuration: C2220 (Metal Windings + Filler + Outer Ring) Indoor/Outdoor Use: Both Paintable: No Package Quantity: 36 units
Applications
Sealing flanges in chemical and petrochemical processing systems High-pressure piping in oil and gas production and refining
Power generation and utility plant pipe connections Industrial heating, ventilation, and process piping General industrial maintenance and repair for pumps, valves, and compressors
