Overview

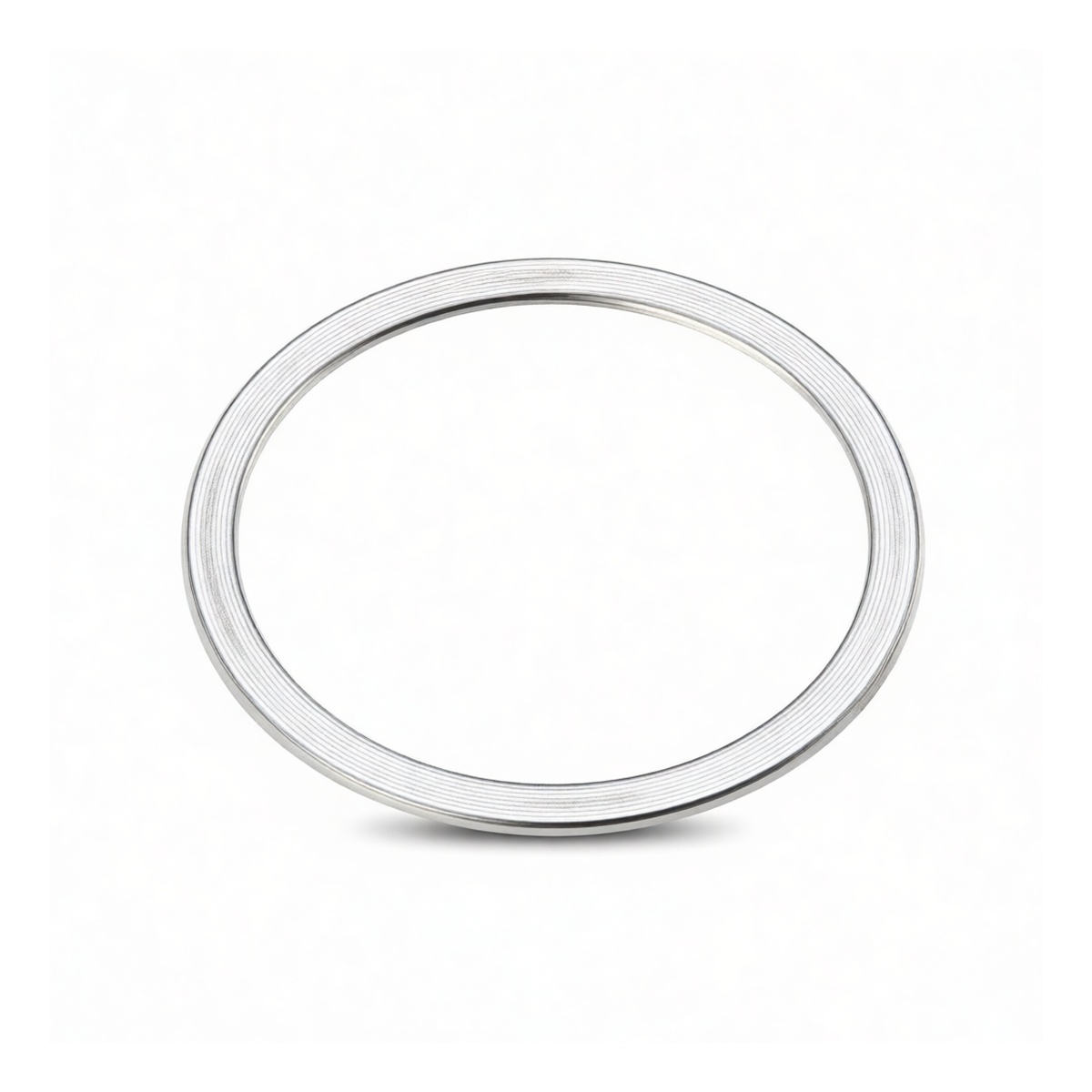

This spiral wound gasket is engineered for high-integrity sealing in demanding industrial flange connections. Designed for indoor use in piping systems, it provides a reliable, leak-tight seal for a wide range of pressures and temperatures. Its robust construction ensures long-term performance and resilience against system fluctuations, making it a critical component for maintaining safety and efficiency in process operations.
Key Features
Engineered for high-pressure services ranging from 300 to 2500 LB
Features a resilient spiral wound construction for excellent creep resistance 316 stainless steel winding provides corrosion resistance and mechanical strength
Graphite filler offers superior thermal conductivity and temperature tolerance
Conforms to established HG industry standards for assured compatibility and quality Designed for reliable performance in static, bolted flange applications
Specifications
Sealant Type: Spiral Wound Gasket Nominal Size: 7.5 inches Inside Diameter: 7.5 inches Outside Diameter: 8.5 inches Thickness: 1/8 inch Pressure Rating: 300 LB, 600 LB, 900 LB, 1500 LB, 2500 LB Winding Material: 316 Stainless Steel Filler Material: Flexible Graphite Standards: HG Chemical Base: Graphite Indoor/Outdoor Use: Indoor Paintable: No Package Quantity: 10 pieces
Applications
High-pressure process piping in chemical and petrochemical plants
Utility and service lines in power generation facilities Refinery and offshore oil & gas pipeline connections
Industrial heating and cooling systems requiring reliable gasketing General industrial maintenance for pumps, valves, and vessel flanges
