Overview

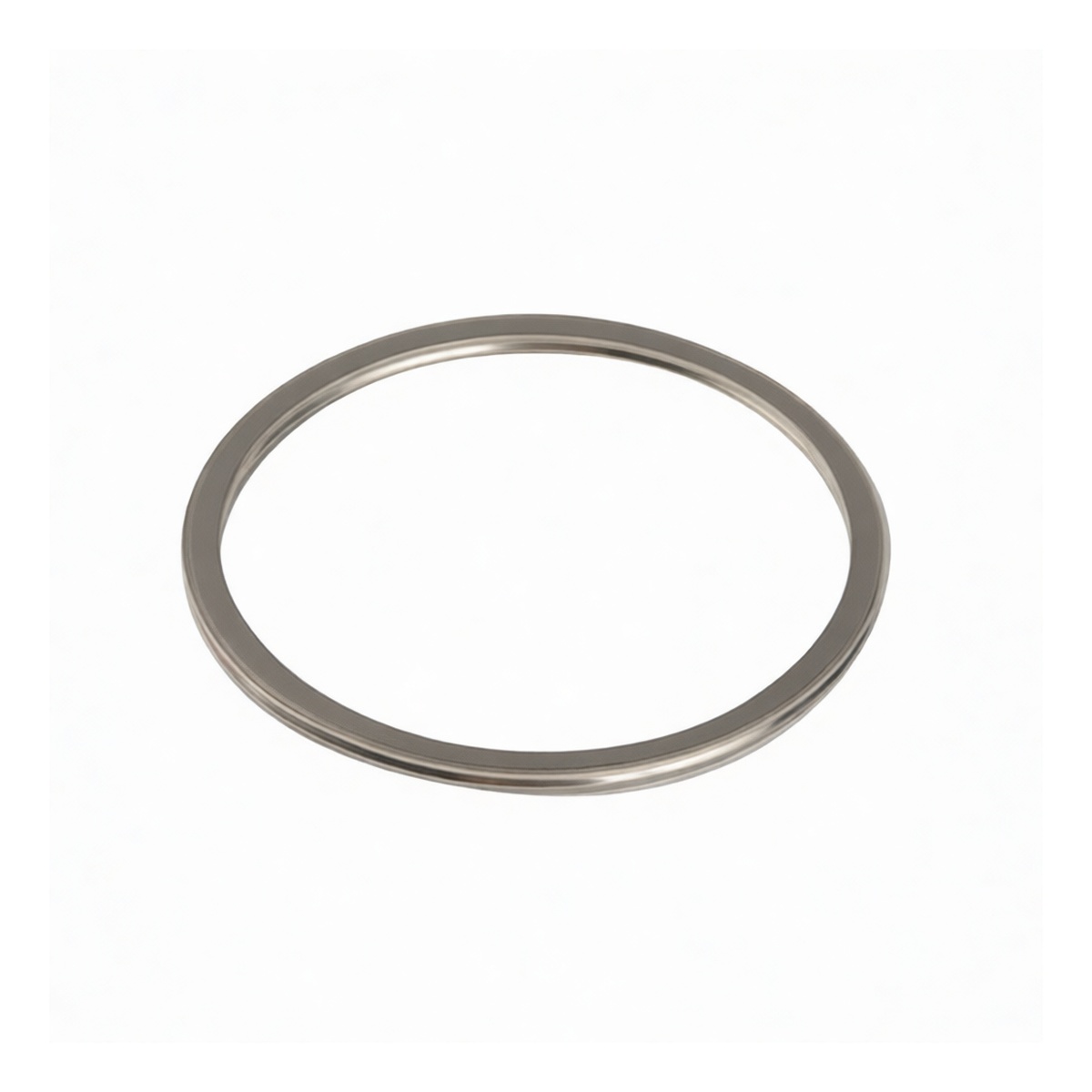

This spiral wound gasket is engineered for high-pressure flange connections in industrial piping systems. It provides a robust and reliable seal for demanding applications where system integrity is critical. Manufactured to stringent HG standards, this gasket is designed for consistent performance in chemical processing, petrochemical, and other industrial environments involving elevated pressures and temperatures. Its construction offers excellent resilience, ensuring a tight seal that compensates for flange irregularities and system vibrations.
Key Features
Engineered for high-pressure service up to 300 LB ratings Winding construction of 304 stainless steel for strength and durability
Flexible graphite filler material for superior conformability and sealing
Excellent creep resistance under sustained load and temperature cycling
Resilient design accommodates flange face imperfections and thermal movement
Manufactured in compliance with established industry standards
Specifications
Sealant Type: Spiral Wound Gasket Outer Ring Material: 304 Stainless Steel Filler Material: Flexible Graphite Standards: HG Nominal Size: 9.38 inches x 10.63 inches Thickness: 0.13 inches Pressure Rating: 300 LB Chemical Base: Graphite Indoor/Outdoor Use: Indoor Paintable: No Package Quantity: 6
Applications
Sealing flanges in chemical and petrochemical processing pipelines High-pressure fluid transfer systems in manufacturing
Utility and service lines in power generation facilities General industrial piping requiring reliable, pressure-rated gaskets
